SCODiA Report by MLBI Lab

Single-Cell Analysis Reveals Dynamic Cellular and Genomic Landscape of Lung Cancer Progression

This single-cell RNA sequencing analysis characterizes the lung tumor microenvironment across normal, early, and advanced lung cancer stages. We observe profound shifts in cell type populations, particularly the expansion of aneuploid Lung Epithelial cells and altered immune and stromal cell compositions. Distinct copy number variation patterns and cell-cell interaction networks emerge in tumor conditions, indicating dynamic biological processes driving cancer progression. Key oncogenic pathways are activated, and specific surface markers and cell cycle regulators are dysregulated, collectively offering insights into therapeutic vulnerabilities.

Contents

0. Dataset overview
1. UMAP Visualization of Cell Conditions, Samples, Cell Types, and Ploidy in Lung scRNA-seq Data
2. UMAP Visualization of Major Cell Type Scores and Ploidy in Lung scRNA-seq Data
3. Marker Expression Profile Across Lung Cell Subsets Confirms Cell Type Annotations
4. Copy Number Variation Analysis in Lung Epithelial Cells
5. UMAP Visualization of CNV Patterns by Cell Type, Ploidy, Condition, and Sample
6. Cell Type Population Analysis in Lung Cancer Conditions

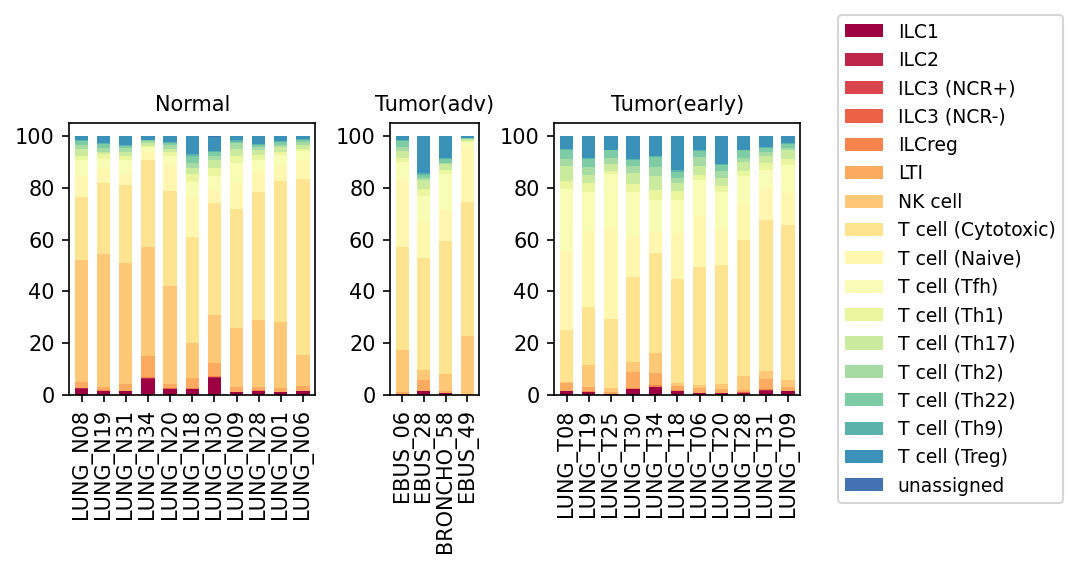

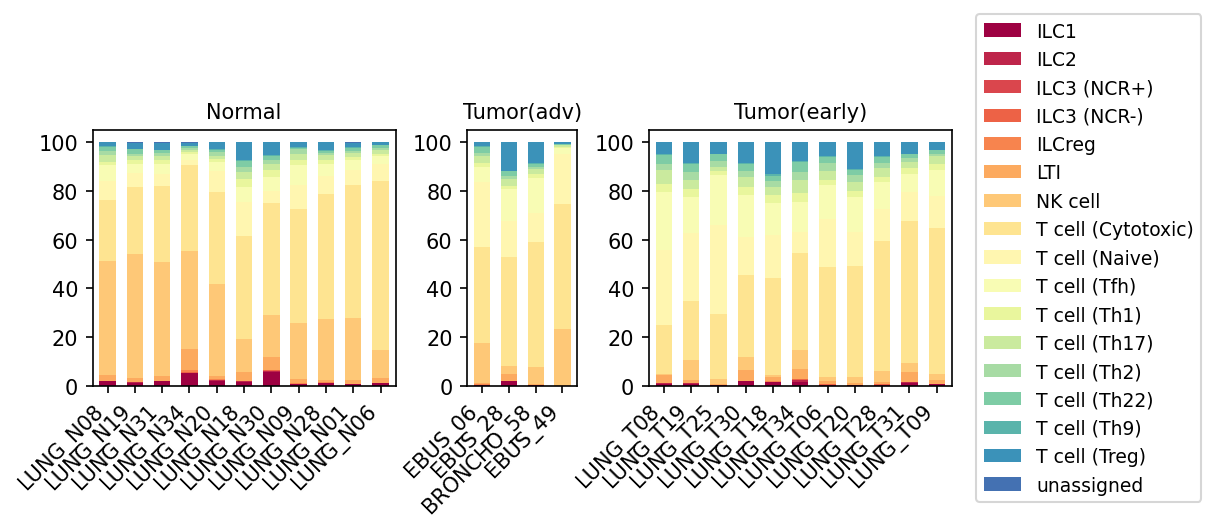

7. Analysis of T cell and ILC Subpopulation Dynamics in Lung Cancer

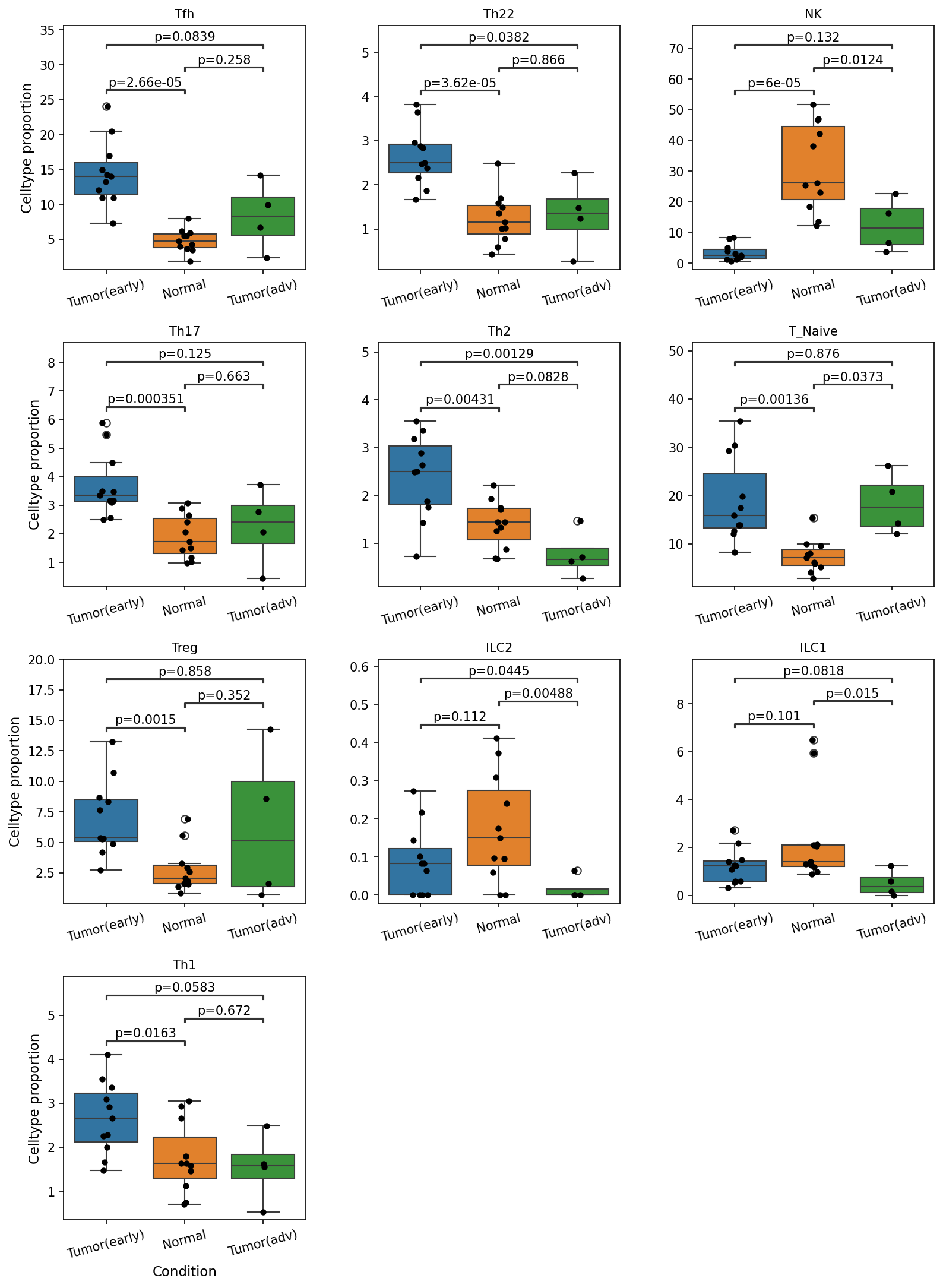

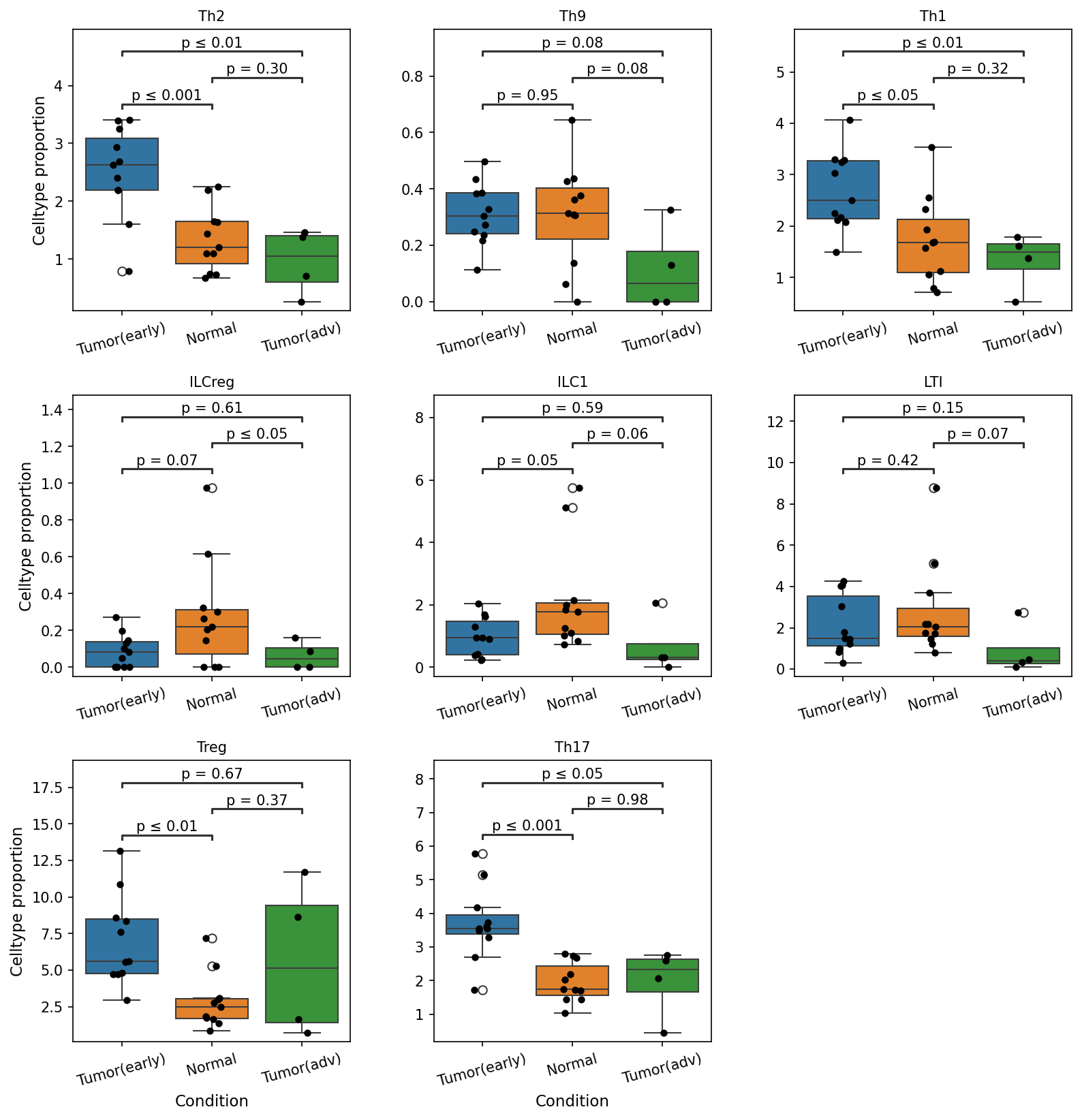

8. Differential T Cell Subset Proportions Across Lung Cancer Stages

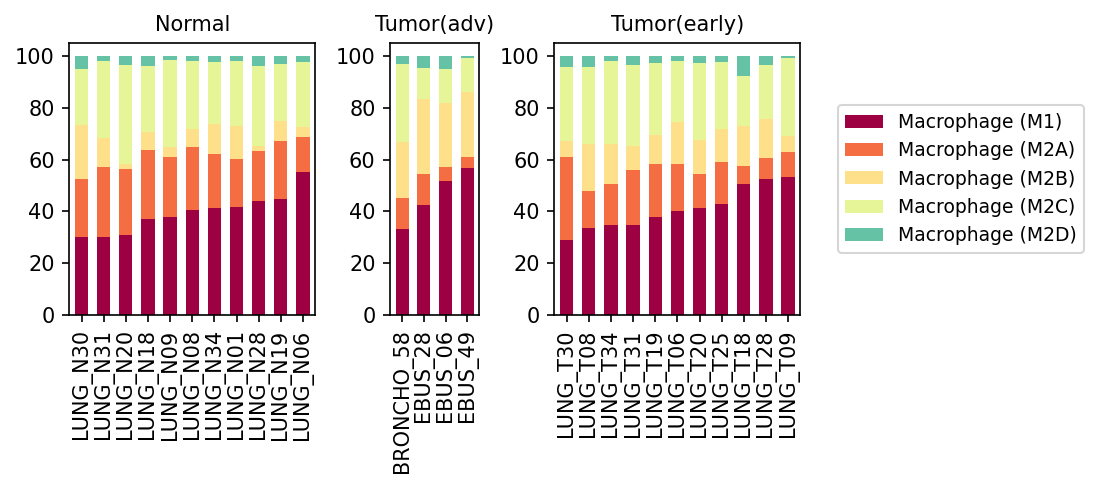

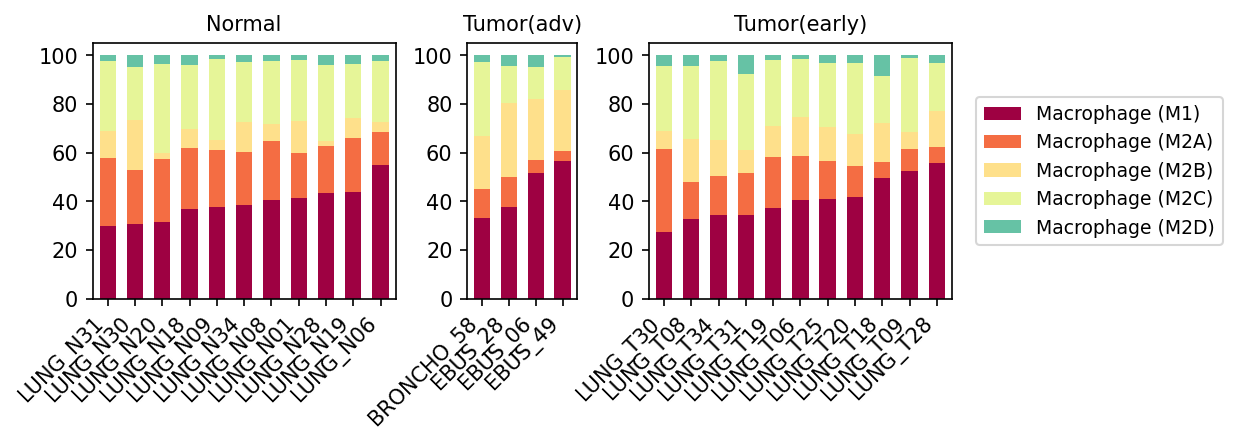

9. Macrophage Subset Population Dynamics in Lung Cancer Progression

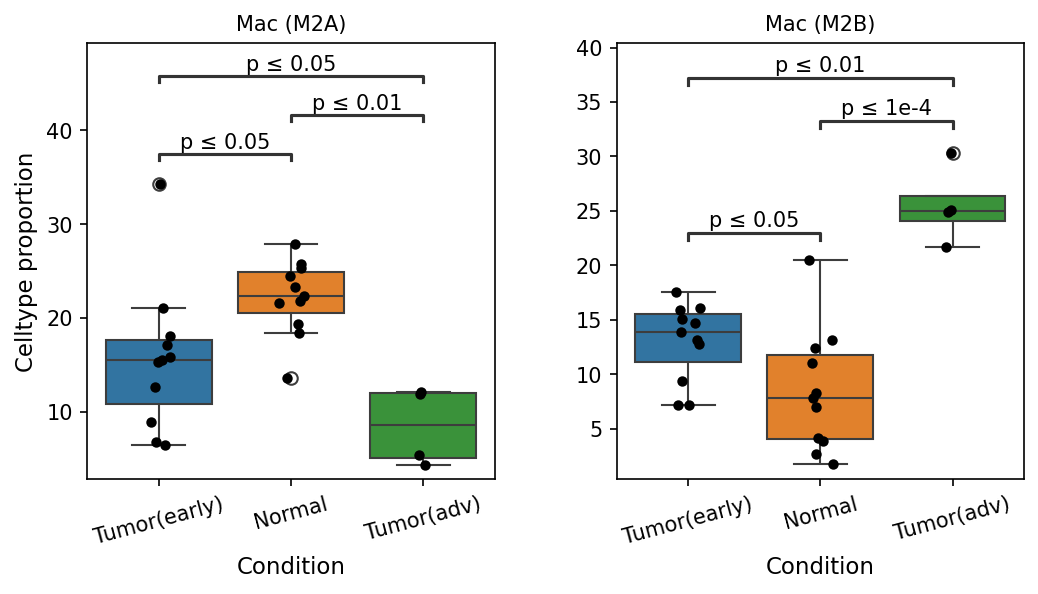

10. Macrophage Subset Population Analysis Across Lung Cancer Conditions
11. Ploidy Analysis of Lung Epithelial Tumor-Origin Cells Across Normal and Lung Cancer Stages

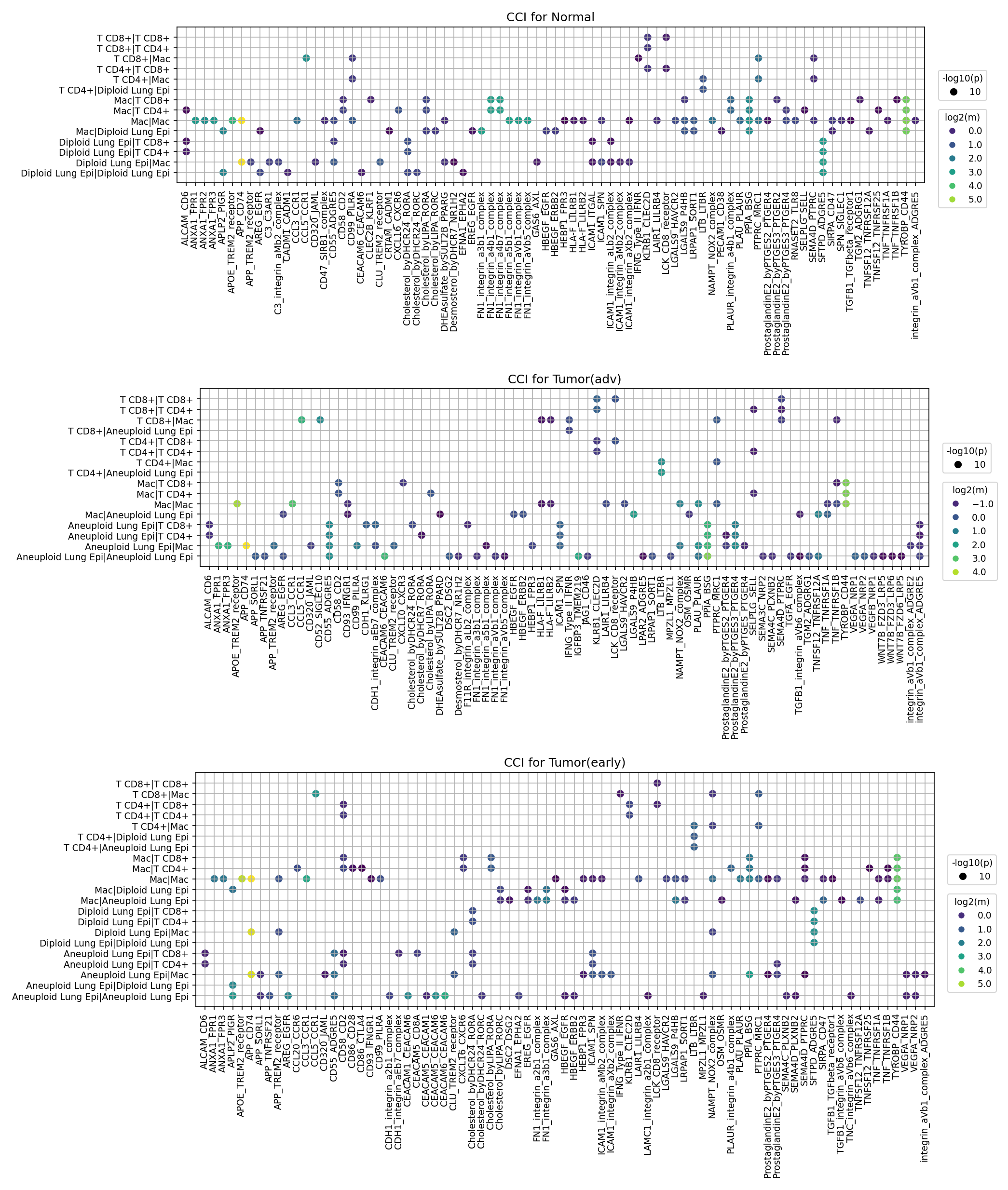

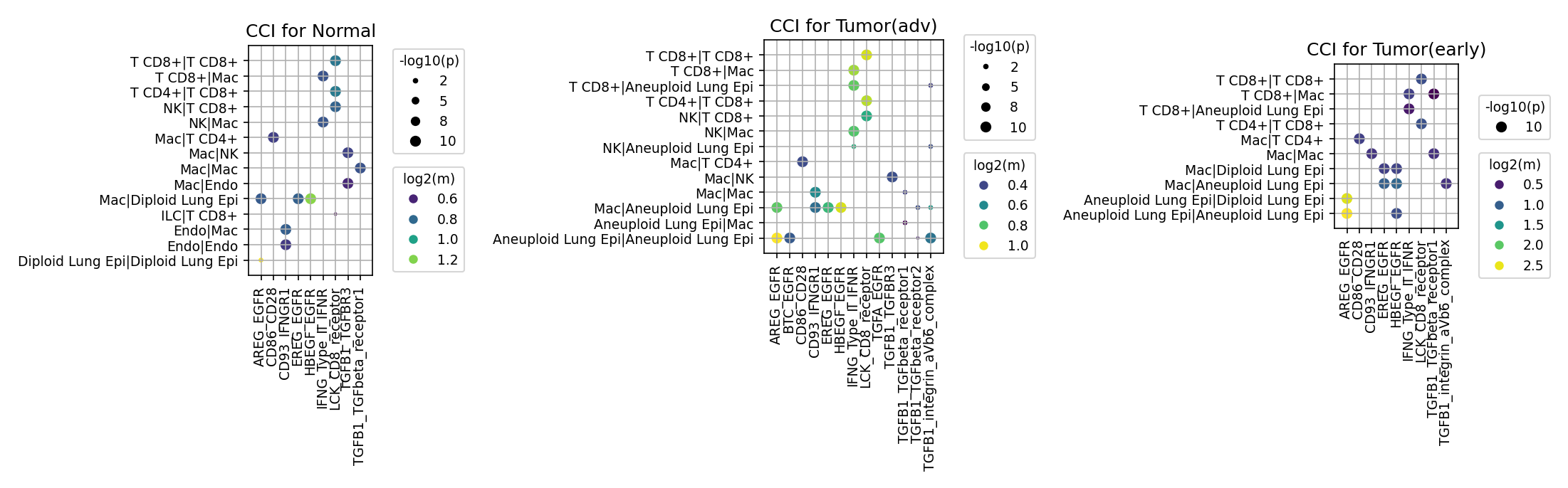

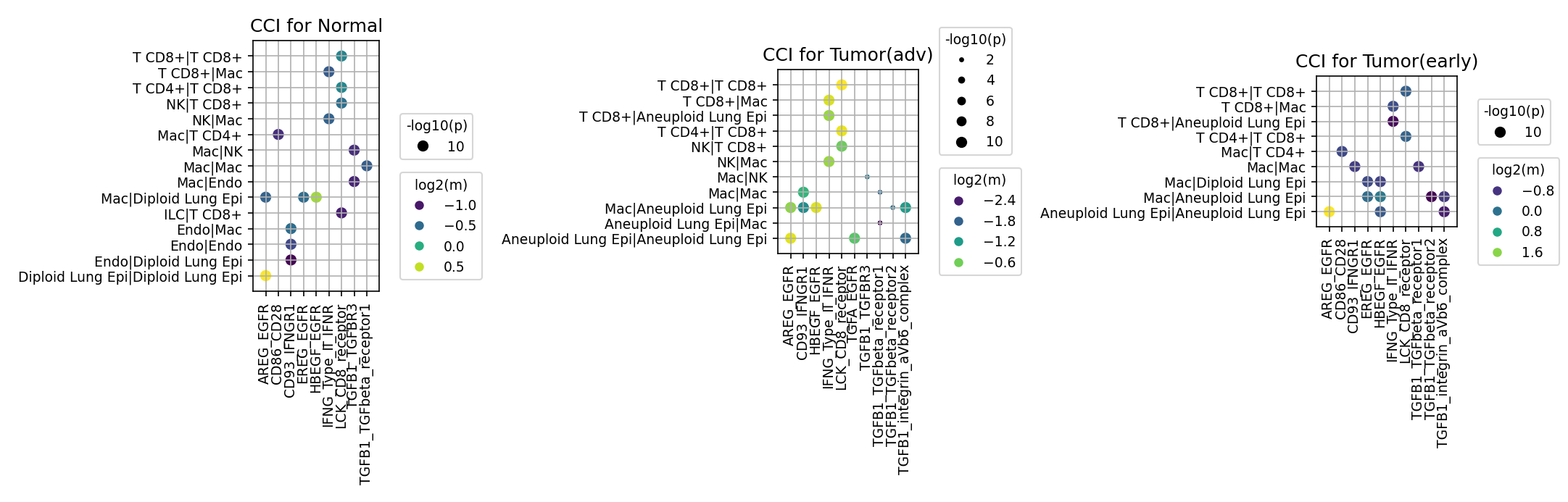

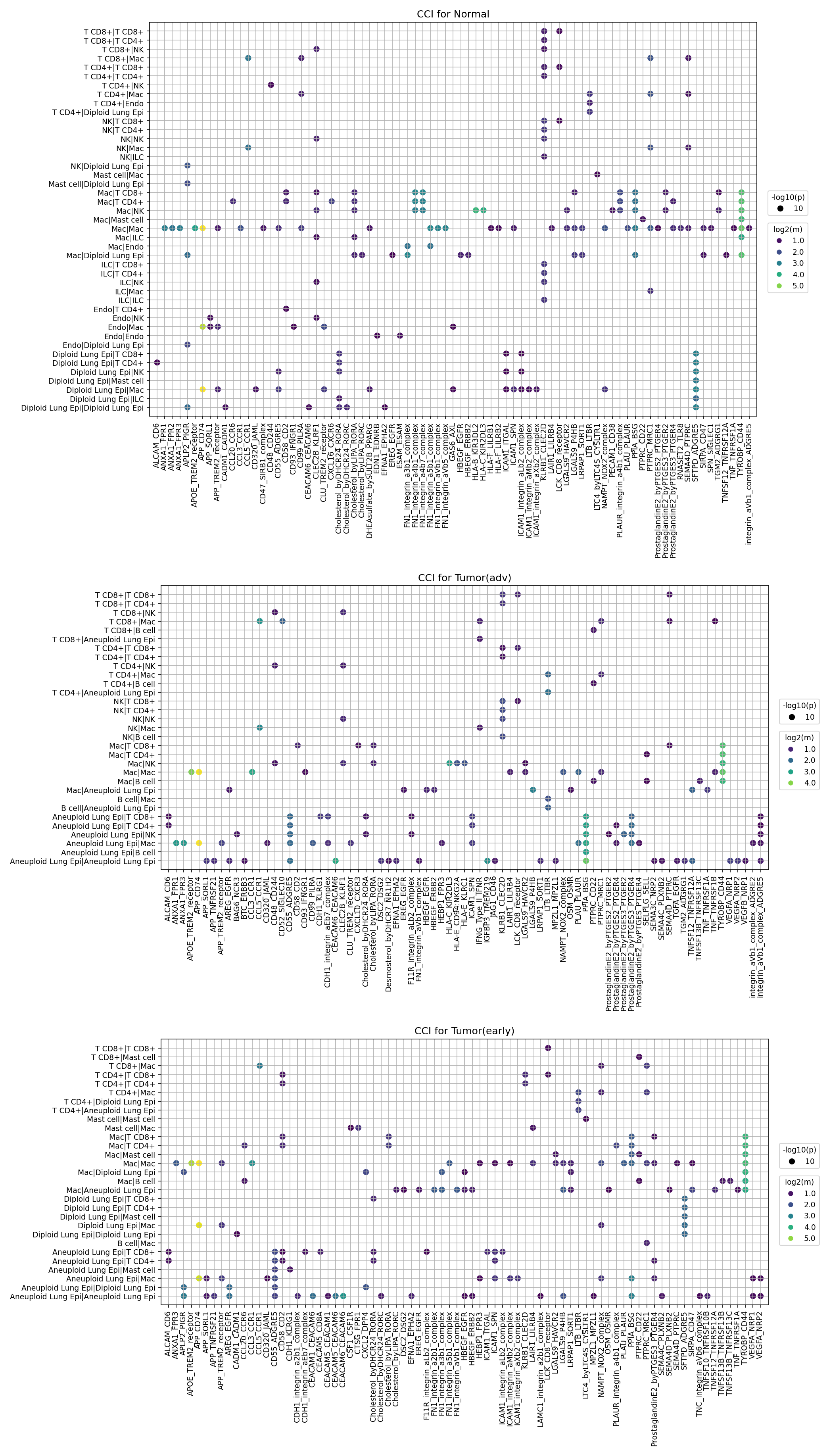

12. Cell-Cell Interaction Analysis in Lung Cancer Progression

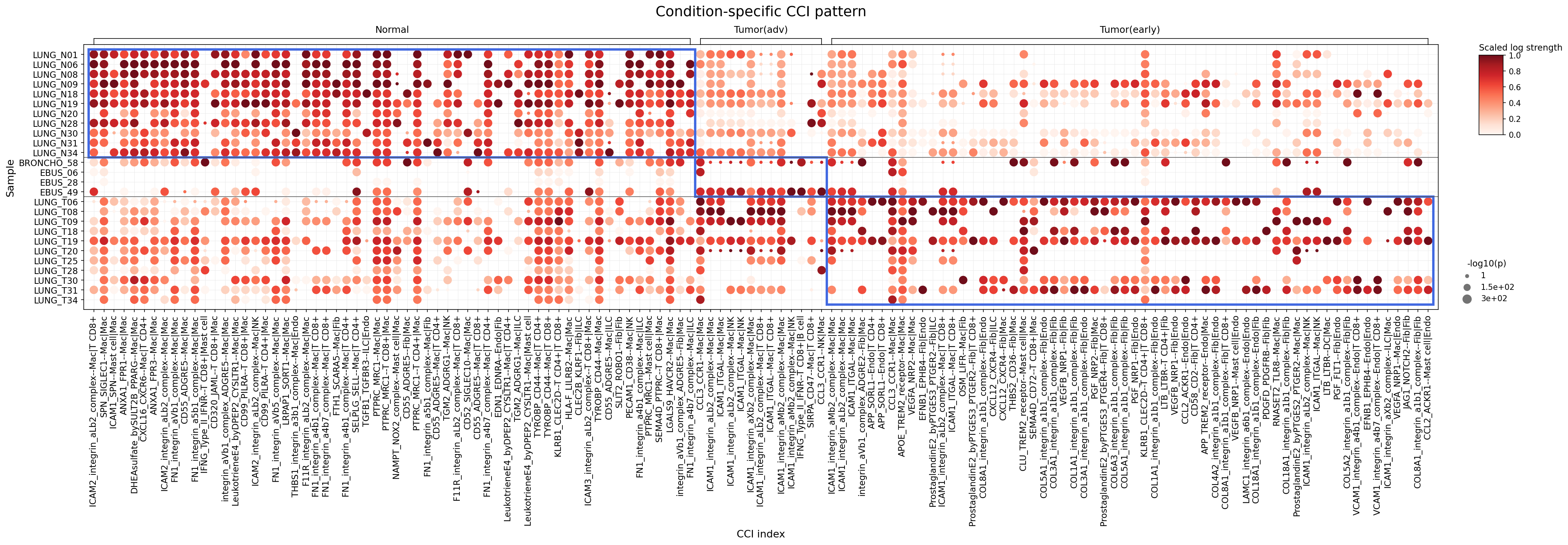

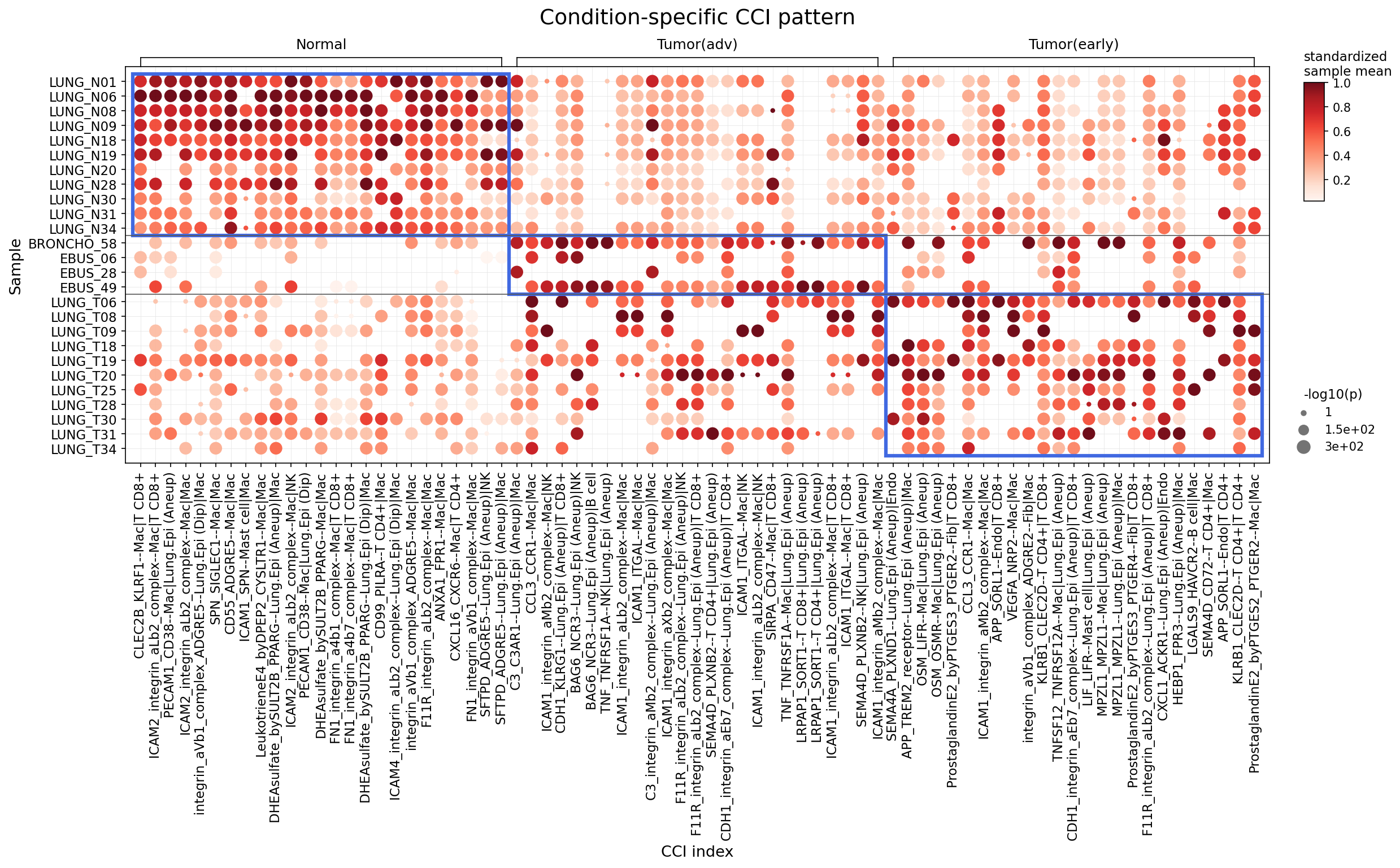

13. Condition-Specific Cell-Cell Interaction Patterns in Lung Cancer Progression
14. Condition-Specific Cell-Cell Interaction Patterns Involving Immune Checkpoint and Cell Cycle Pathways in Lung Cancer

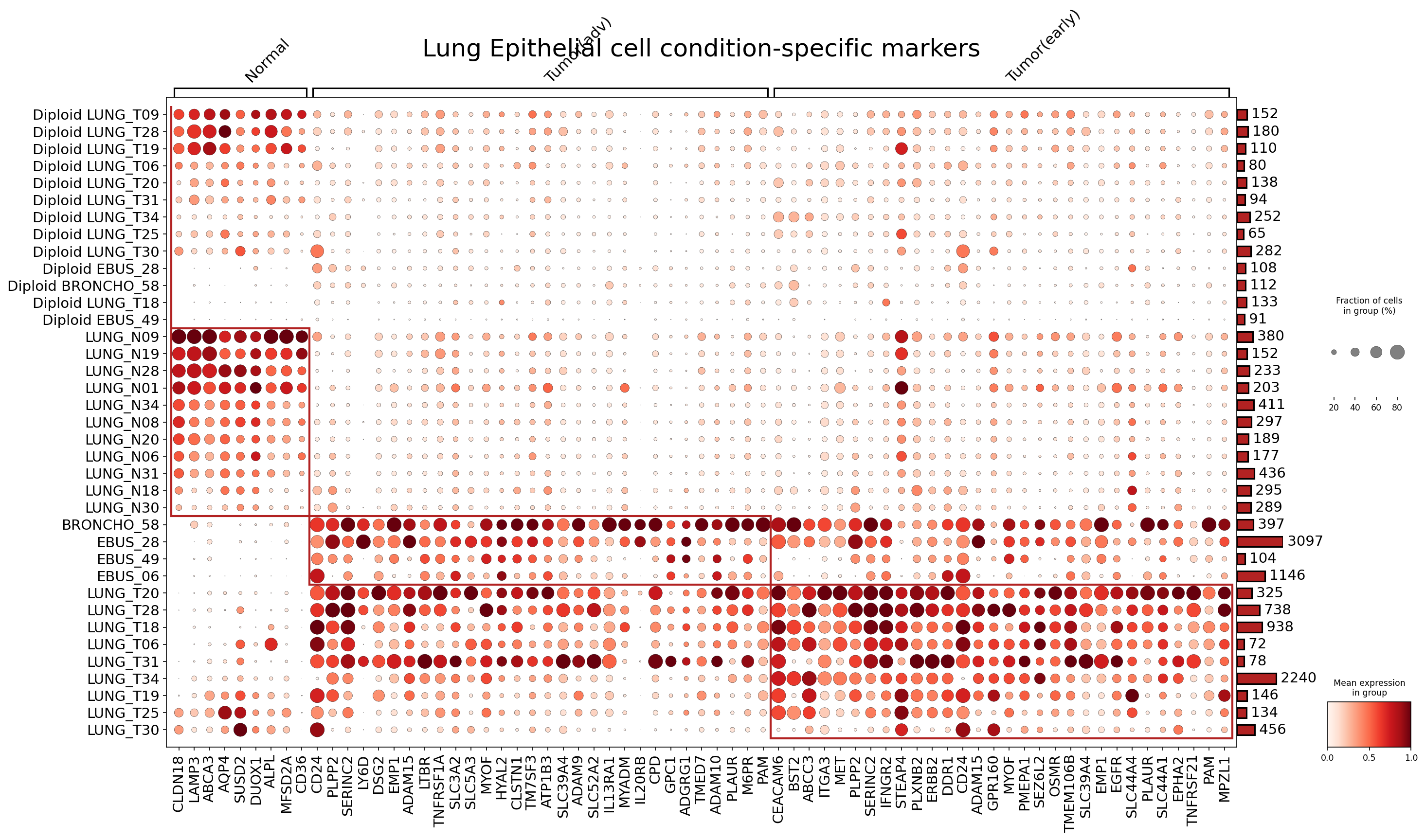

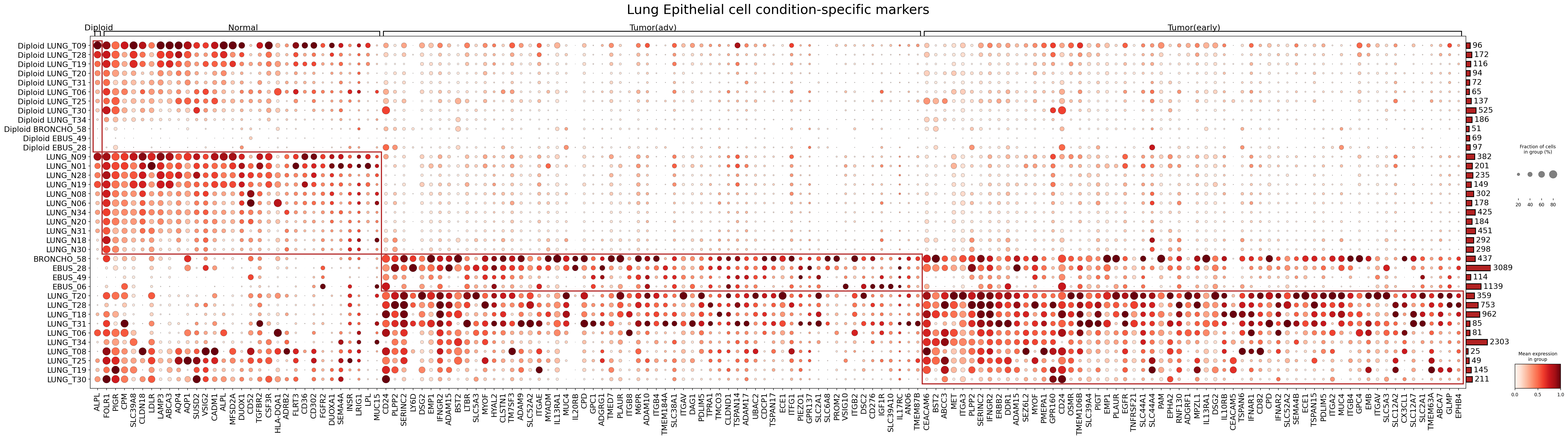

15. Lung Epithelial Cell Surfaceome Markers Across Normal and Tumor Conditions

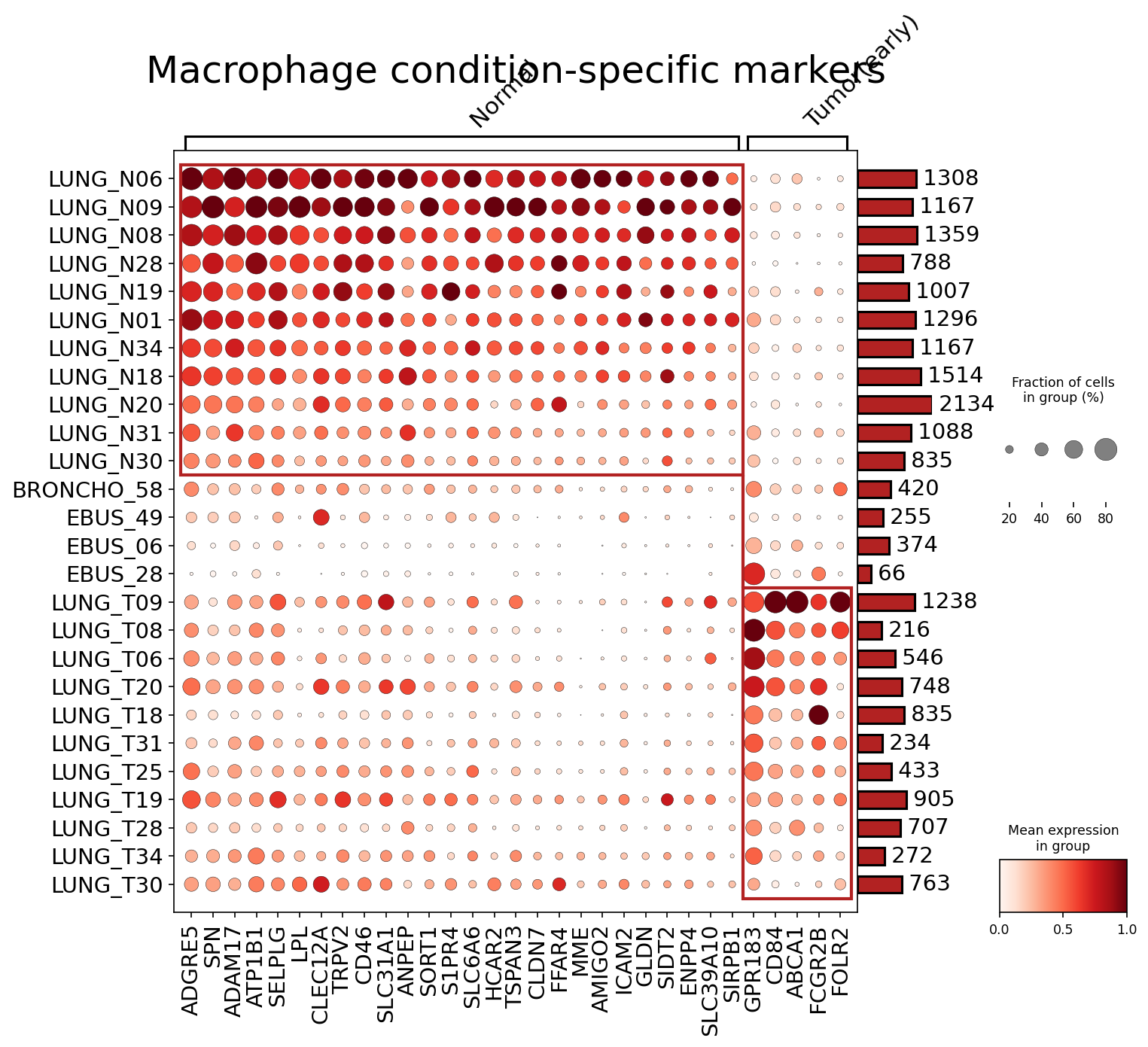

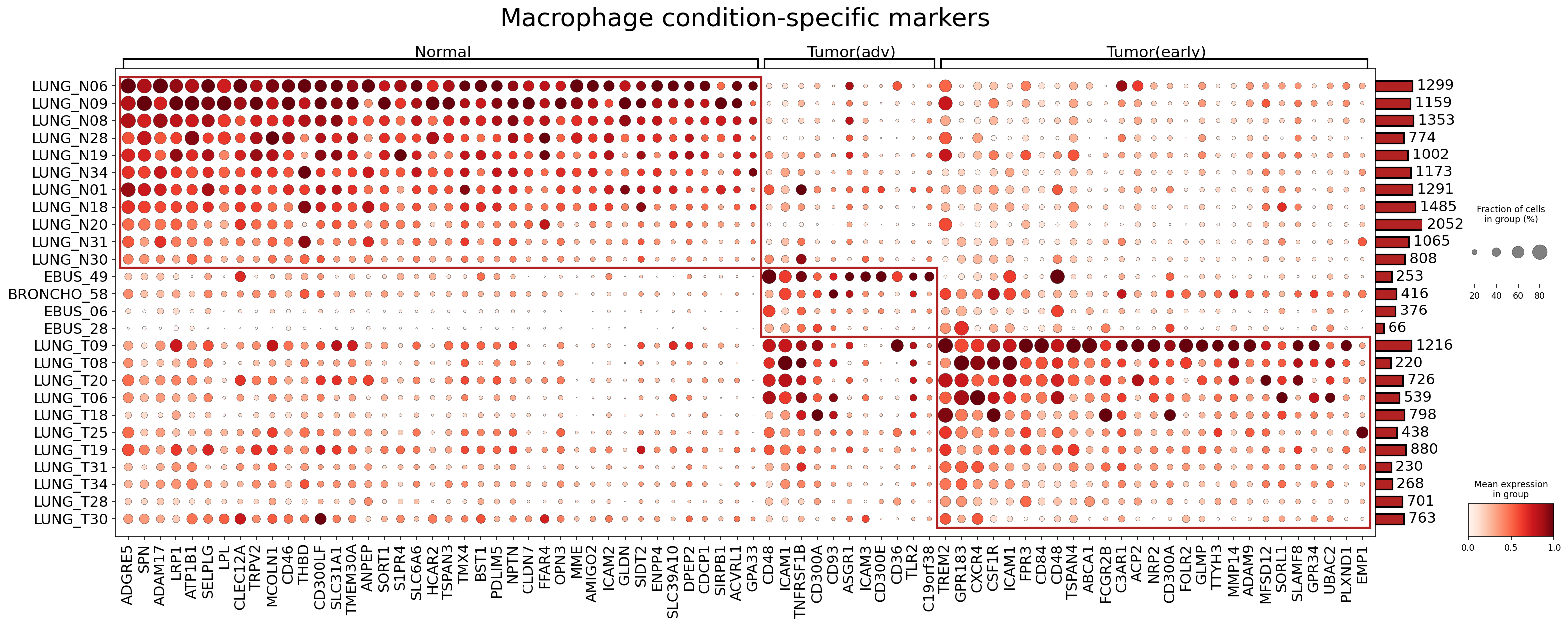

16. Macrophage Condition-Specific Surfaceome Marker Analysis in Lung Cancer

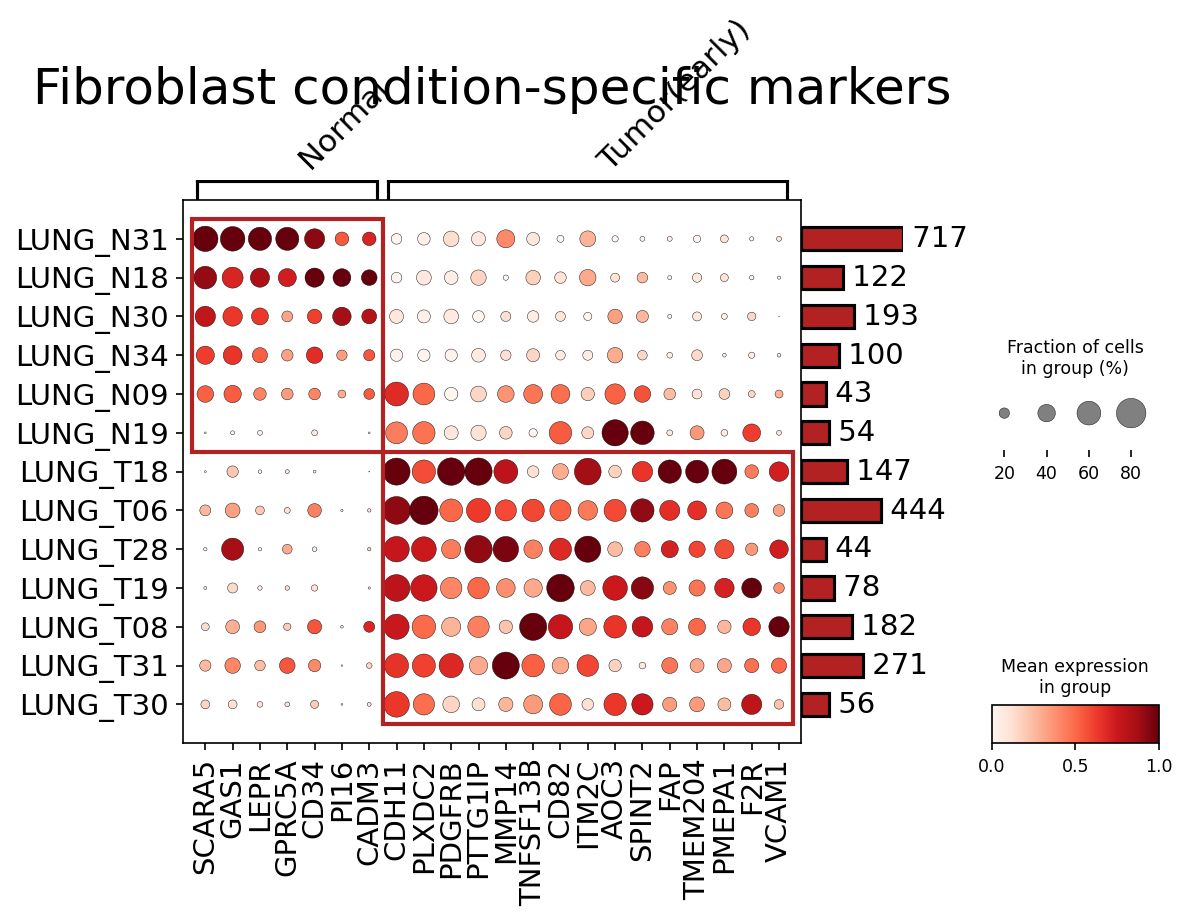

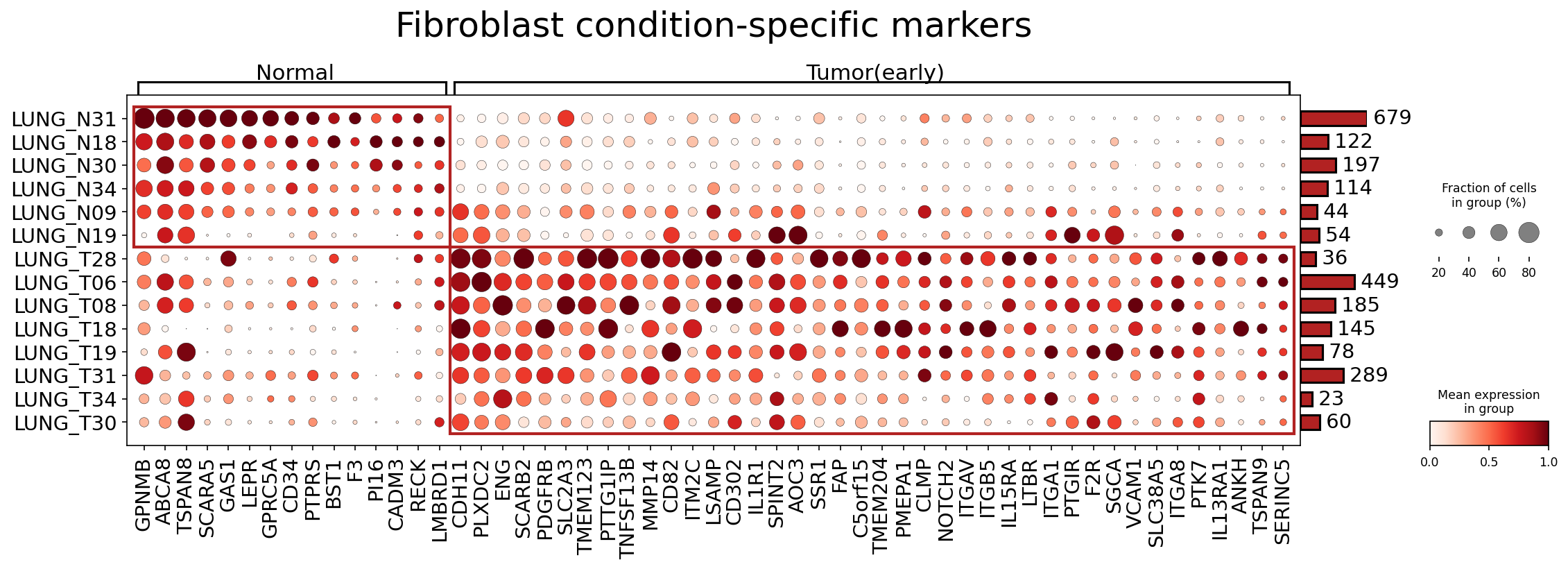

17. Fibroblast Condition-Specific Surfaceome Markers in Lung Cancer

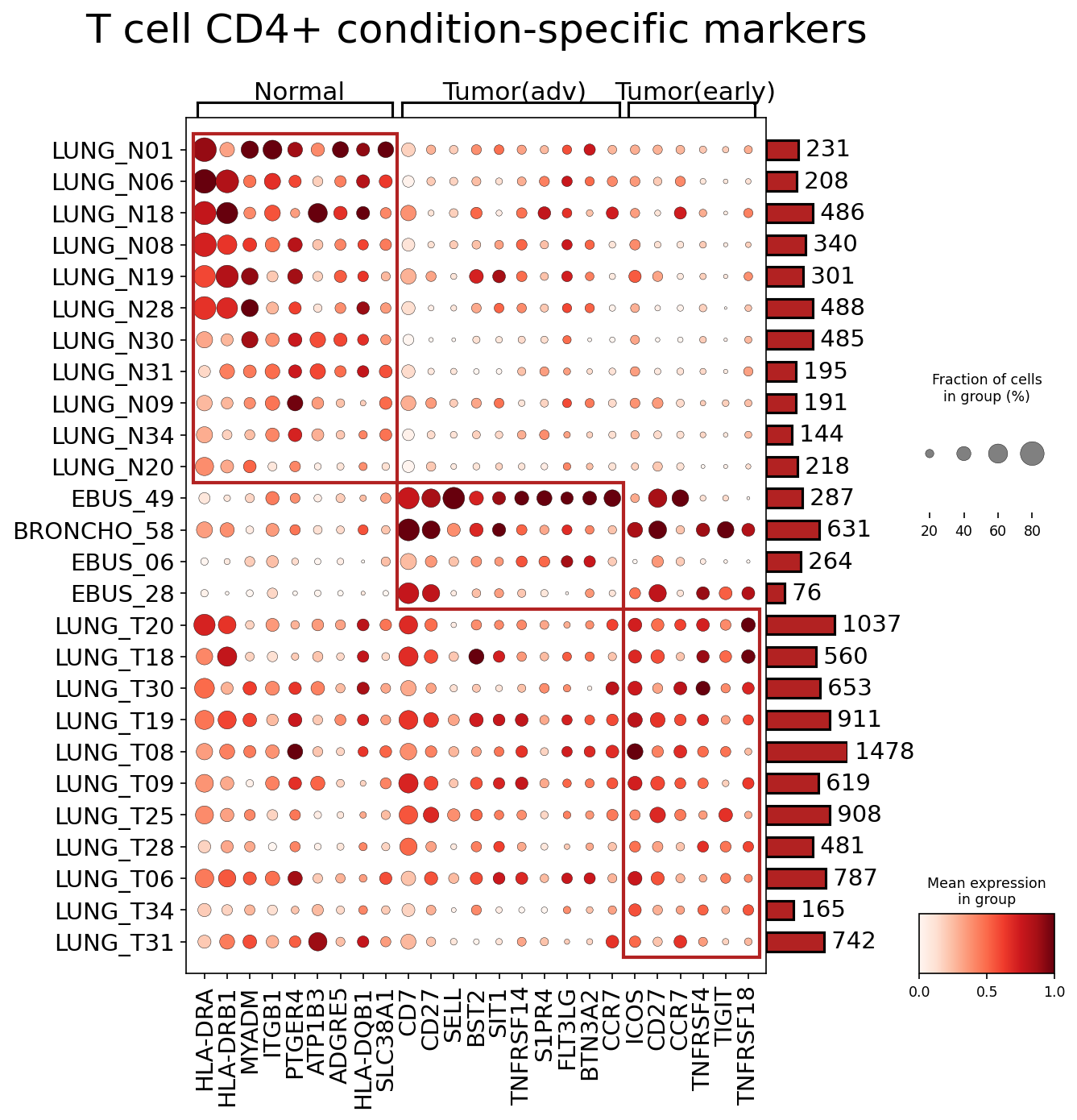

18. T cell CD4+ Condition-Specific Surfaceome Marker Expression in Lung Cancer

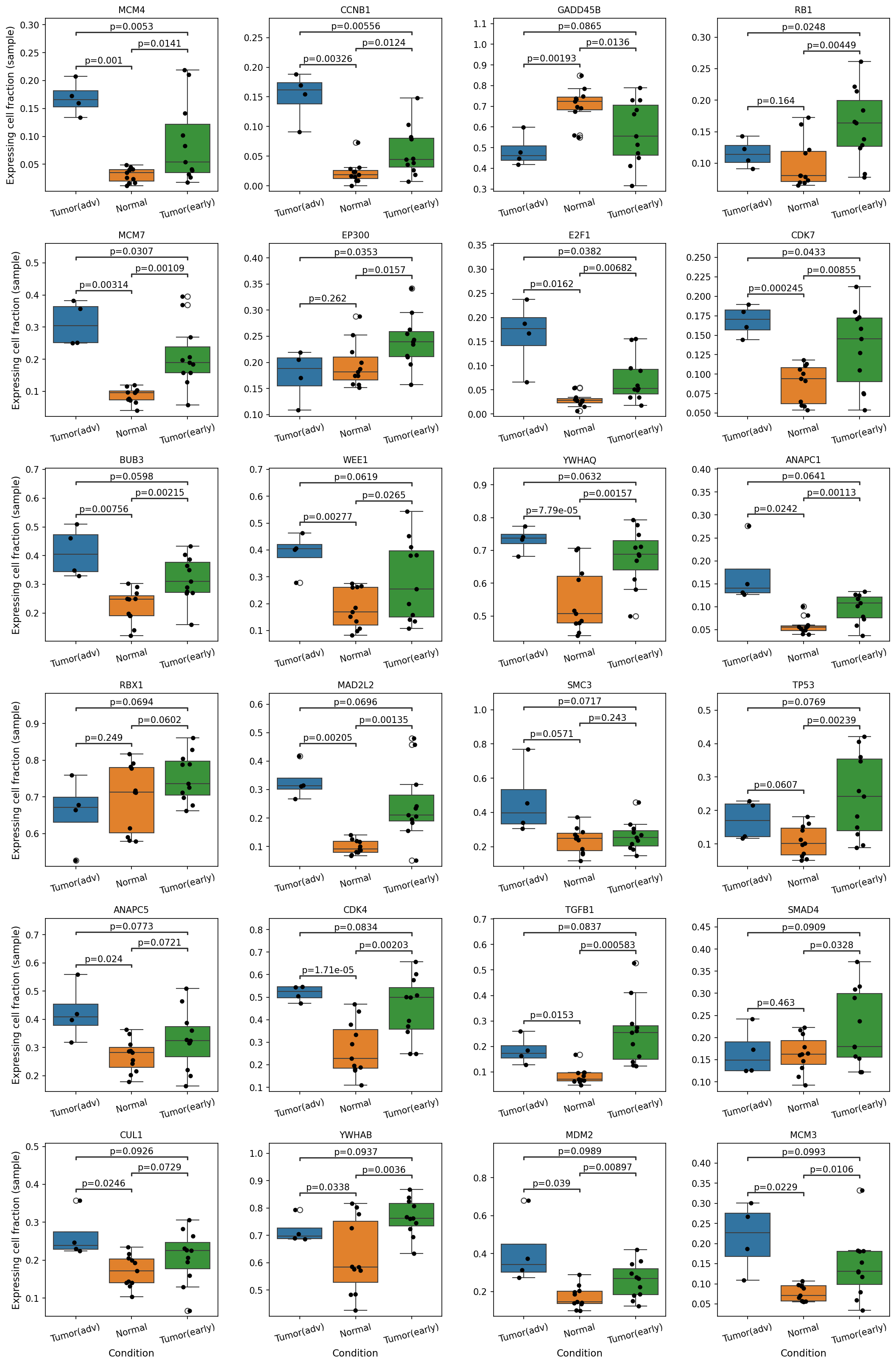

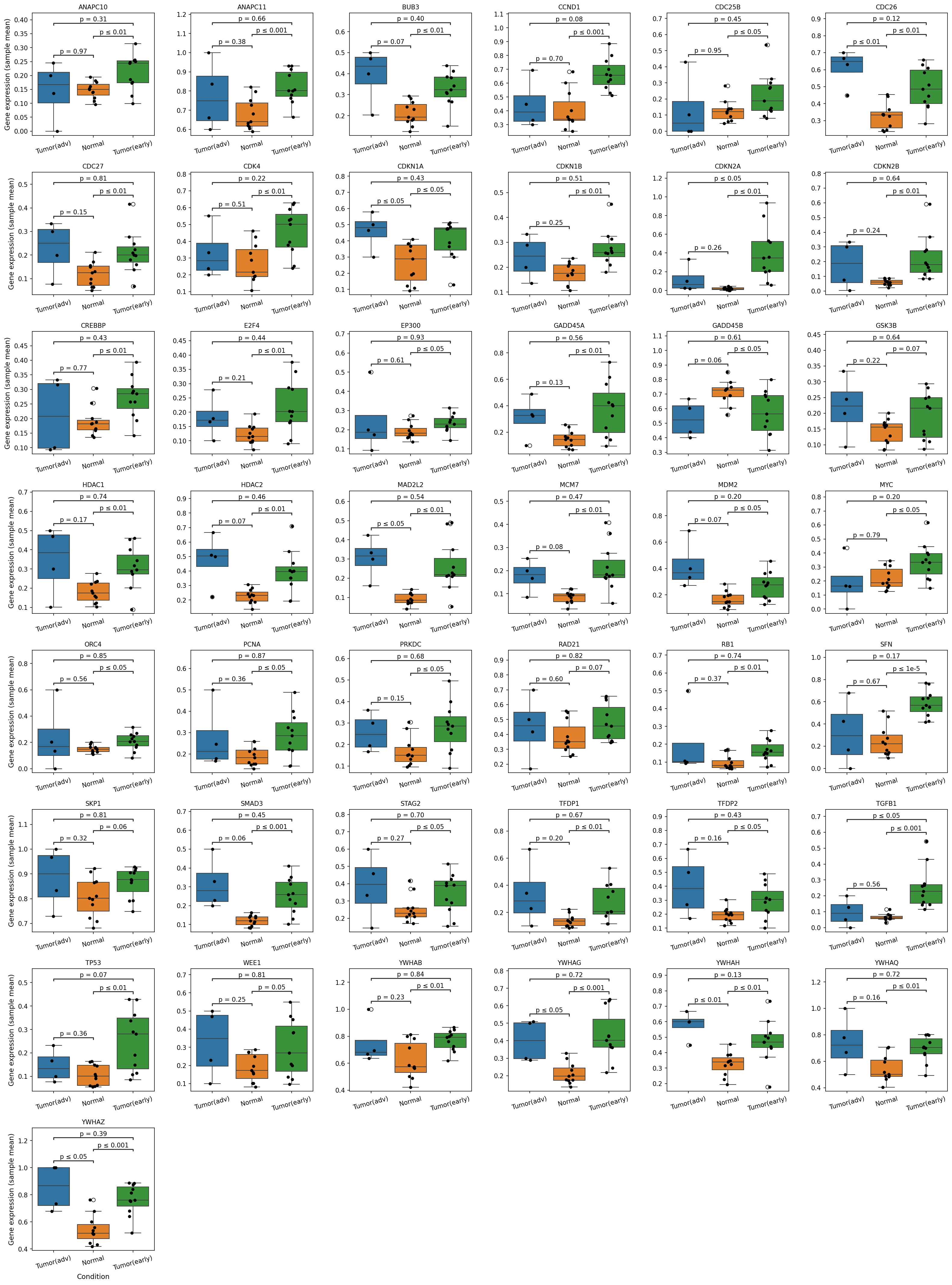

19. Differential Cell Cycle Gene Expression in Lung Epithelial Cells Across Lung Cancer Stages

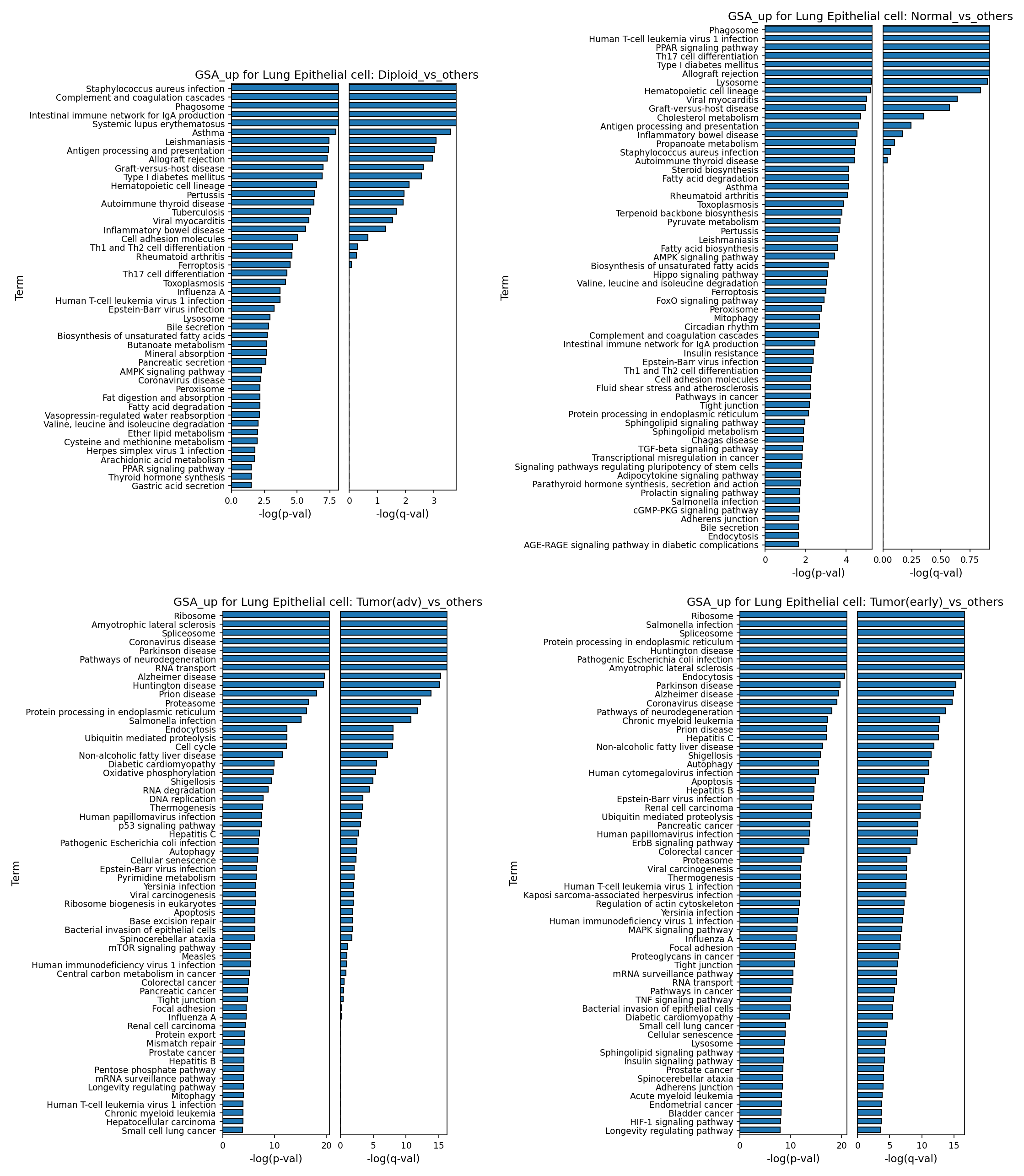

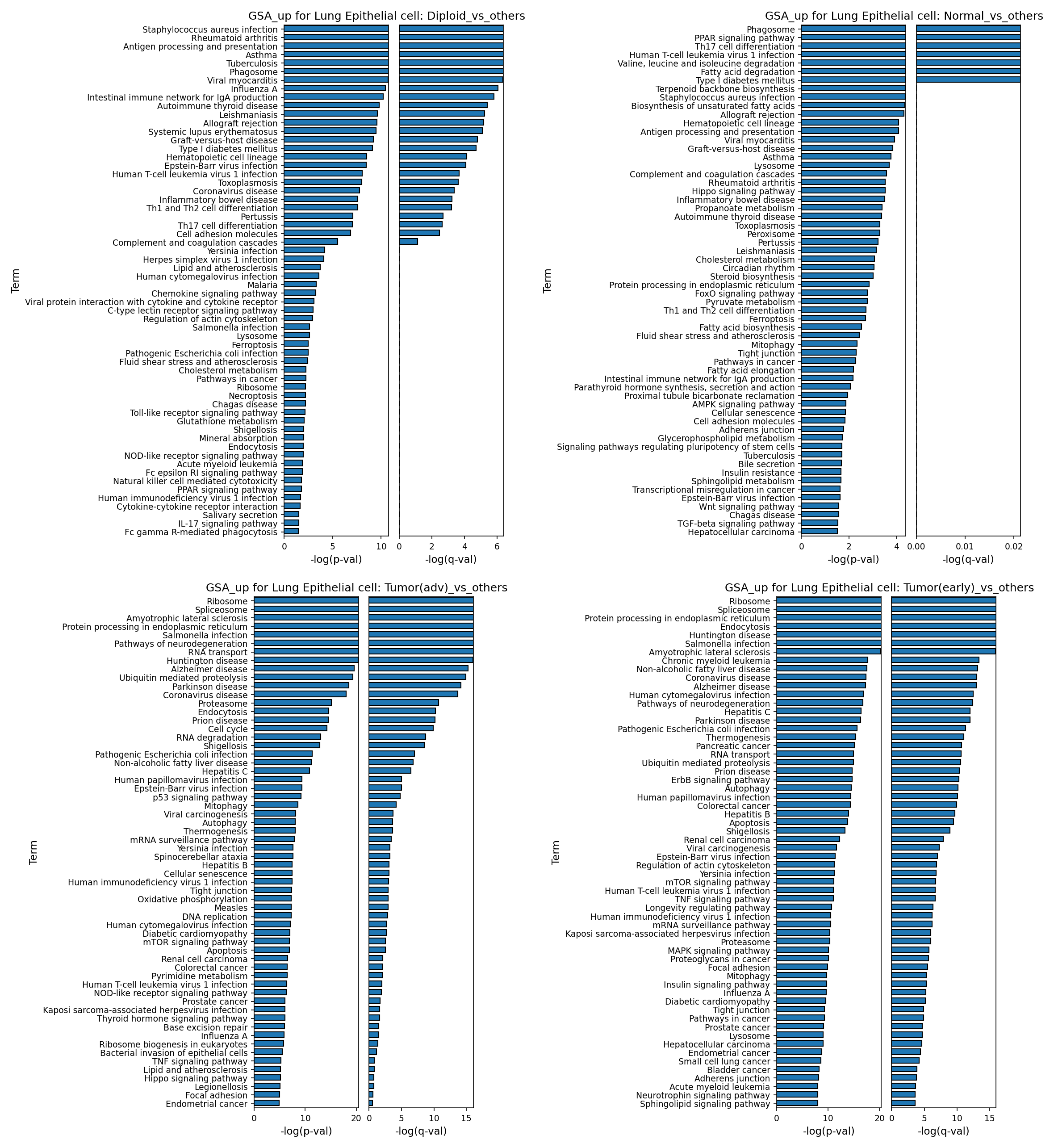

20. Gene Ontology (GSA) Analysis for Lung Epithelial Cells: Condition-Specific Pathway Enrichment

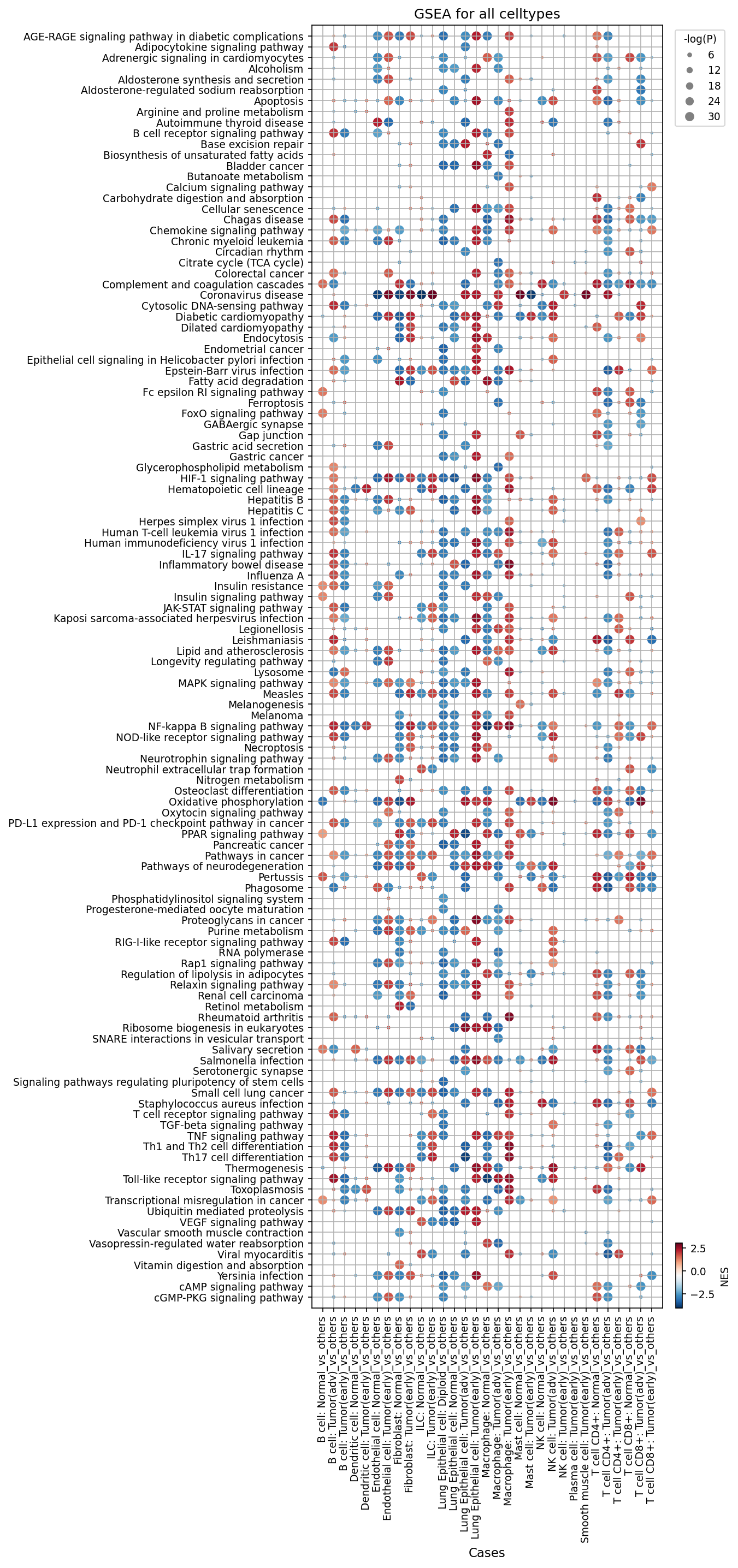

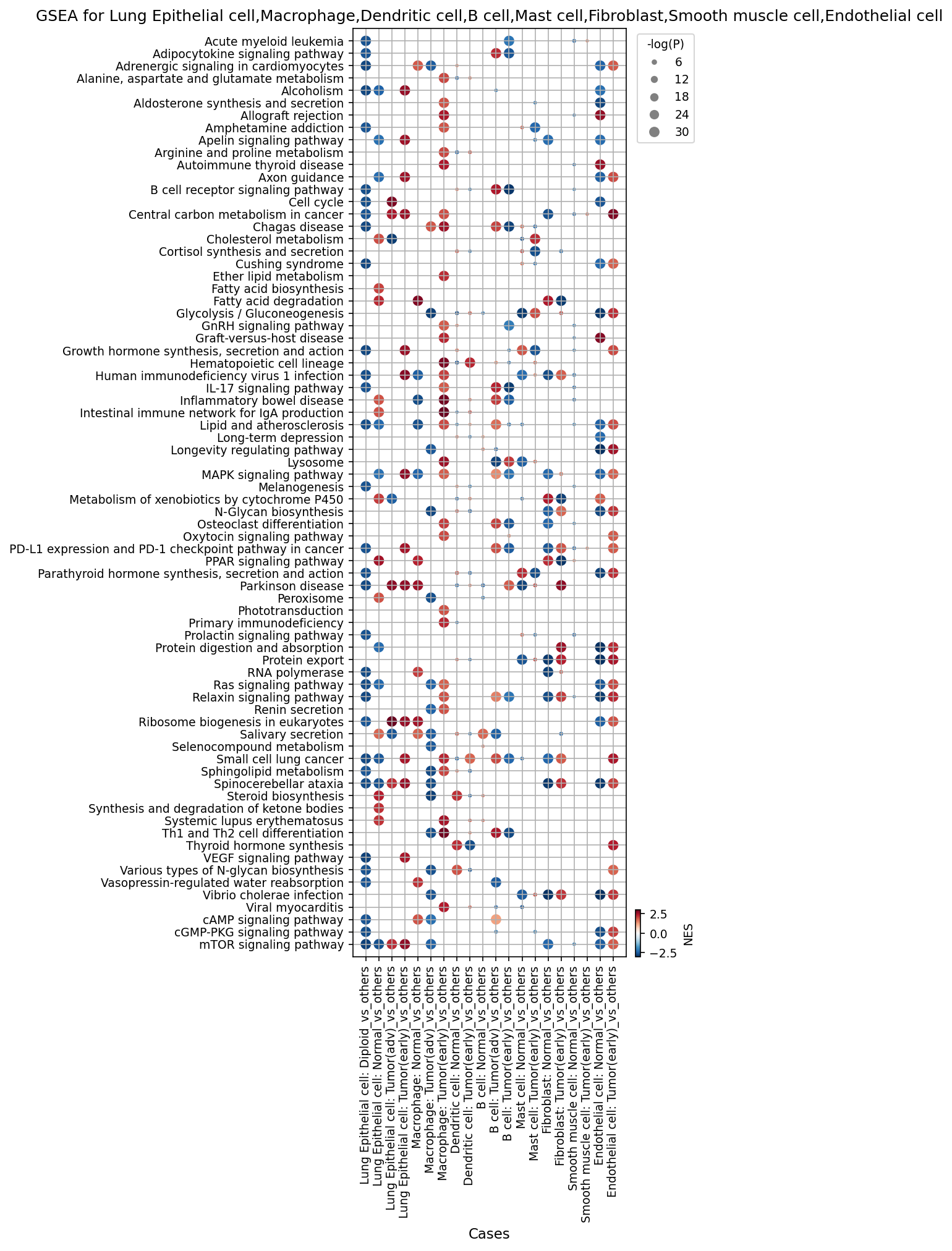

21. Gene Set Enrichment Analysis of Lung Cancer Cell Types: Pathway Deregulation Across Tumor Progression
22. Discussion
23. Query List

0. Dataset overview

Dataset Summary

• Dimensions: The dataset contains 84,300 single cells and 23,489 genes.
• Species & Tissue: The data is from human lung tissue.
• Conditions: Three conditions are present: Tumor (advanced), Tumor (early), and Normal. 'Normal' is designated as the reference condition for differential analyses.
• Cell Type Annotations: Cells are hierarchically annotated into major, minor, and subset levels:
• Major: T cell, Lung Epithelial cell, Myeloid cell, Plasma cell, Mast cell, Stromal cell, unassigned, B cell, Endothelial cell.
• Minor: T cell CD8+, T cell CD4+, Alveolar Epithelial cell, Macrophage, Plasma cell, Mast cell, Fibroblast, NK cell, unassigned, Airway Epithelial cell, B cell, Smooth muscle cell, Endothelial cell, Dendritic cell, ILC.
• Subset: Further granular cell types are available, such as T cell (Cytotoxic), Alveolar type 2, Macrophage (M2B), etc.
• Ploidy Status: Ploidy estimates are available, with 88.5% of cells classified as Diploid and 11.5% as Aneuploid. The resolved tumor-origin cell type is Lung Epithelial cell.
• CNV Estimates: Copy Number Variation (CNV) estimates are available for the dataset.
• Precomputed Results: The dataset includes various precomputed analysis results stored in uns (AnnData unstructured data), which can be directly utilized for data mining:
• Cell-Cell Interaction (CCI): CellPhoneDB results are available per condition and per sample.
• Differential Gene Expression (DEG): DEG results are stored for each celltype_minor, comparing one condition vs. the rest, and also comparing one condition vs. the reference condition ('Normal').
• Gene Set Enrichment Analysis (GSEA): GSEA results are computed for each celltype_minor, comparing one condition vs. the rest, and vs. the reference condition.
• Gene Ontology (GO/GSA): GO analysis results are available for each celltype_minor, comparing one condition vs. the rest, and vs. the reference condition.
• Metadata: Rich metadata is available in obs columns, including Tumor, Sample, Patient id, Tissue origins, Histology, Gender, Age, Smoking, Pathology, EGFR_mutation, and Stage, among others.
• Gene Information: var columns include gene_symbol, chr, and cytogenetic_band.

Inferred Biological Context

The dataset is inferred to be related to Lung Cancer, based on conditions like 'Tumor(adv)' and 'Tumor(early)', the 'Lung Epithelial cell' as the tumor-origin cell type, and the presence of cancer-related metadata such as 'Histology', 'Pathology', 'EGFR_mutation', and 'Stage', alongside aneuploidy and CNV estimates.

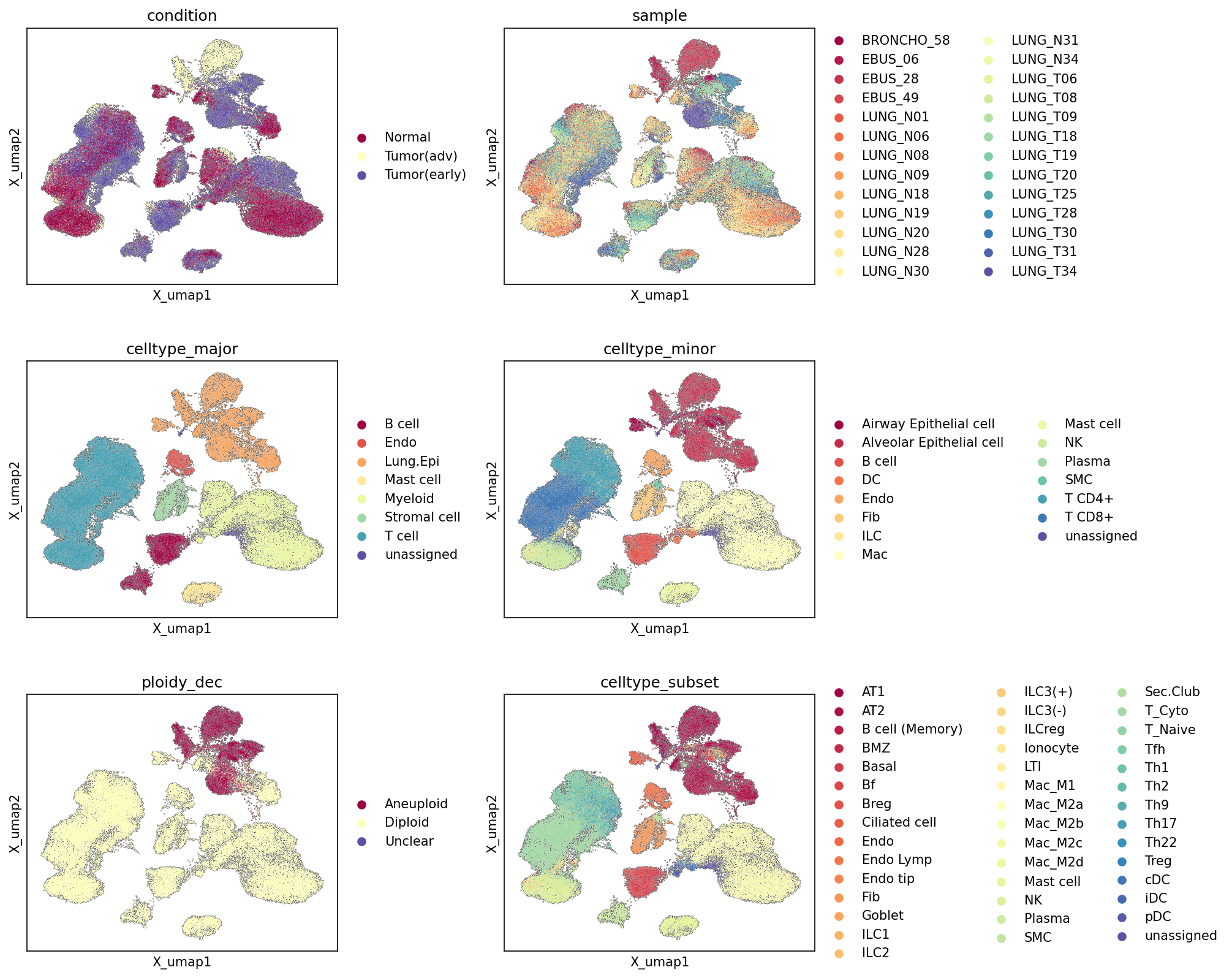

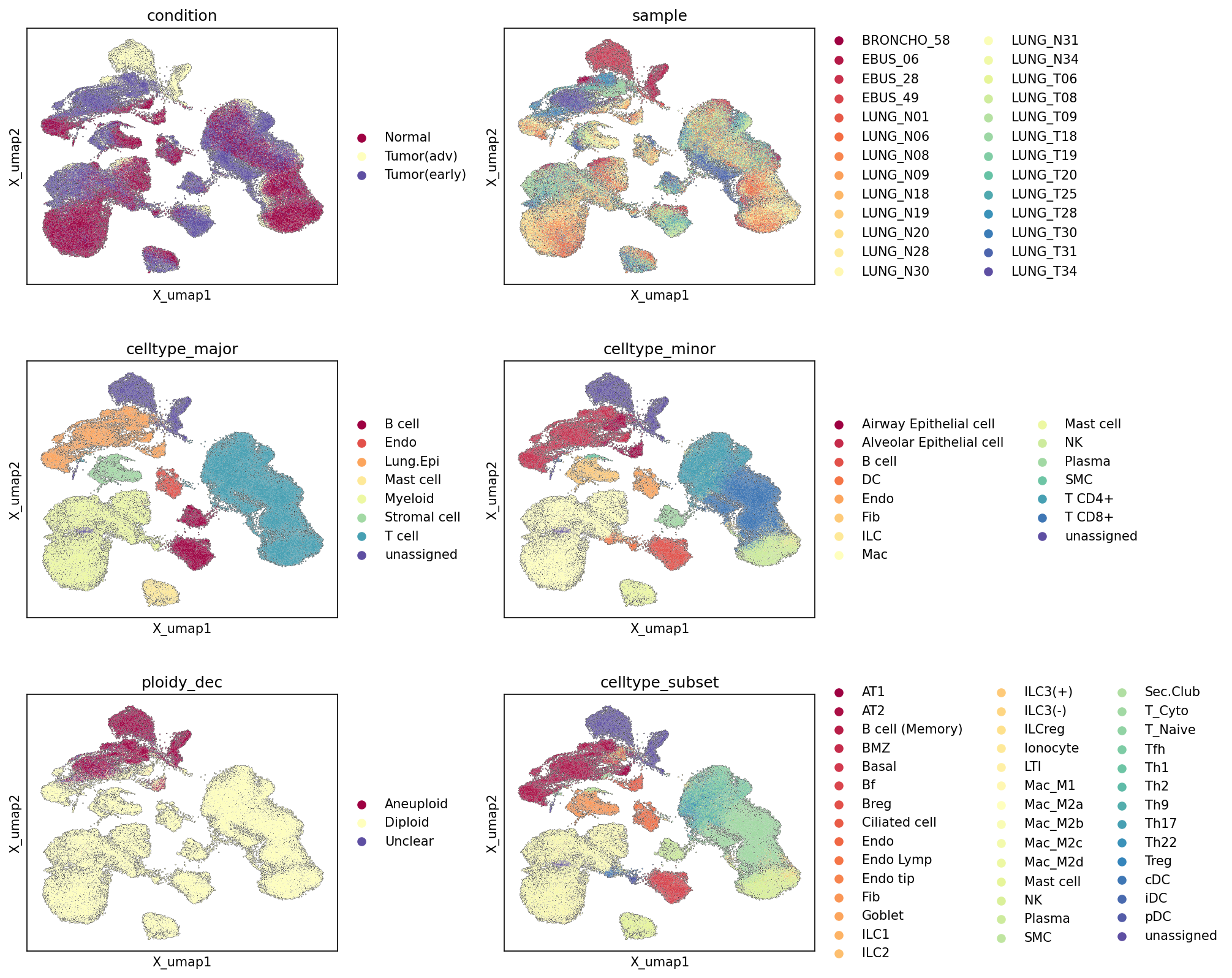

1. UMAP Visualization of Cell Conditions, Samples, Cell Types, and Ploidy in Lung scRNA-seq Data

[Analysis Visualization Results]...

Analysis Overview

This analysis presents a series of Uniform Manifold Approximation and Projection (UMAP) plots, visualizing the single-cell RNA-sequencing dataset along different critical annotations: experimental condition, individual sample, major cell types, minor cell types, ploidy status, and detailed cell subsets. These UMAPs are crucial for assessing dataset quality, confirming cell type assignments, identifying batch effects, and understanding the global cellular landscape in the context of lung cancer. The primary goal is to provide a high-level overview of the data structure and the relationships between different cell populations and biological states.

Visual Summary

Condition UMAP

The UMAP colored by condition (Normal, Tumor(adv), Tumor(early)) reveals a clear separation between 'Normal' cells and 'Tumor' cells (both 'adv' and 'early' stages). Normal cells tend to form distinct clusters, predominantly visible on the left side of the embedding, while tumor-associated cells (advanced and early) populate the central and right regions. Notably, 'Tumor(adv)' and 'Tumor(early)' cells largely overlap and intermix, suggesting a shared transcriptomic signature that distinguishes them from normal tissue, but less distinction between the two tumor stages at this global embedding level. There are some clusters where 'Normal' and 'Tumor' cells appear to co-exist, which could represent infiltrating immune cells or stromal cells present in both microenvironments.

Sample UMAP

The sample UMAP shows a moderate degree of sample-specific clustering, particularly for 'Normal' samples (e.g., BRONCHO_58, LUNG_N01, LUNG_N31, LUNG_N34) which group together. However, cells from 'Tumor' samples (e.g., LUNG_T06, LUNG_T08, LUNG_T09, LUNG_T18, LUNG_T19, etc.) appear to be more intermixed across different tumor samples within the tumor-associated regions of the UMAP. This indicates that while some sample-specific variations exist (especially for normal samples), the overall transcriptomic landscape of tumor cells is broadly shared across different tumor samples, suggesting effective batch correction or strong biological signals overriding sample-specific effects within the tumor context.

Celltype_major UMAP

The celltype_major UMAP demonstrates well-defined and distinct clusters for most major cell types. 'T cells' and 'Myeloid cells' form large, somewhat interconnected clusters, often localized towards the left/bottom part of the UMAP, which corresponds to regions enriched in 'Normal' and some 'Tumor' cells. 'Lung Epithelial cells' occupy distinct clusters, particularly noticeable in the upper-right and central-right regions, often overlapping with the 'Tumor' conditions. 'B cells', 'Plasma cells', 'Stromal cells', 'Endothelial cells', and 'Mast cells' also form identifiable, segregated clusters, indicating a robust and reliable major cell type annotation. The 'unassigned' category is minimal and scattered, suggesting a high quality of annotation.

Celltype_minor UMAP

At a finer resolution, the celltype_minor UMAP further refines the cell populations, showing distinct sub-clusters within the major cell types. For example, 'T cell CD4+' and 'T cell CD8+' are clearly separated. 'Alveolar Epithelial cells' and 'Airway Epithelial cells' show distinct locations, with Alveolar cells likely constituting the tumor-origin cells. 'Macrophage' cells form several sub-clusters, indicating their heterogeneity. The clear demarcation of these minor cell types reinforces the quality of the hierarchical cell type annotation and the underlying clustering.

Ploidy_dec UMAP

The ploidy_dec UMAP highlights the distribution of 'Diploid', 'Aneuploid', and 'Unclear' cells. A striking observation is that 'Aneuploid' cells form a large, distinct cluster predominantly located in the lower-central region of the UMAP. This region strongly overlaps with where 'Lung Epithelial cells' and 'Tumor' conditions are concentrated. 'Diploid' cells are widely distributed across the entire UMAP, forming the majority of cells, as expected (88.5%). The strong clustering of 'Aneuploid' cells within specific regions of the UMAP, corresponding to tumor epithelial cells, provides strong evidence for their association with the cancerous state. 'Unclear' cells are sparsely distributed.

Celltype_subset UMAP

The celltype_subset UMAP provides the most granular view of cell populations. It confirms the robust clustering of highly specific cell subsets such as 'Alveolar type 2' (AT2), various 'Macrophage' subtypes (e.g., Mac_M1, Mac_M2a, M2b, M2c, M2d), and a detailed breakdown of T cell subtypes (e.g., T cell (Cytotoxic), T cell (Treg), T cell (CD8 Exhausted)). The clear separation of these fine-grained cell types further validates the quality and resolution of the cell type annotation. The 'Alveolar type 2' cells, which align with the resolved tumor-origin cell type (Lung Epithelial cell), show a significant overlap with the aneuploid population and tumor conditions, consistent with their role in lung adenocarcinoma.

Biological Interpretation

The UMAPs collectively provide strong evidence for distinct cellular states and compositions between normal and tumor lung tissues. The clear separation of 'Normal' and 'Tumor' conditions on the UMAP, coupled with the observation that 'Lung Epithelial cells' (the resolved tumor-origin cell type) primarily reside within the tumor-associated clusters, strongly supports the lung cancer context.

The distinct clustering of 'Aneuploid' cells, almost exclusively within regions dominated by 'Lung Epithelial cells' and 'Tumor' conditions, is a highly significant finding. Aneuploidy is a hallmark of cancer, indicating chromosomal abnormalities often associated with genomic instability in tumor cells. This finding strongly supports the identification of malignant epithelial cells within the tumor microenvironment. The high percentage of aneuploid cells (11.5%) corroborates the cancerous nature of the samples.

The intermixing of 'Tumor(adv)' and 'Tumor(early)' conditions suggests that, at this global transcriptomic level, the core differences from normal tissue are more pronounced than the differences between early and advanced stages. This implies that the fundamental oncogenic programs distinguishing cancer from normal tissue are already established in early stages.

The detailed cell type annotations (major, minor, and subset) show a comprehensive representation of the lung tumor microenvironment, including various immune (T cells, Myeloid cells, B cells, NK cells, Plasma cells) and stromal populations (Fibroblasts, Endothelial cells, Smooth muscle cells). The precise mapping of these populations across normal and tumor conditions will be critical for understanding their roles in tumor progression and immune response. For example, the presence of specific T cell subsets (e.g., T cell (CD8 Exhausted)) or macrophage polarization states (e.g., M1, M2 subtypes) could reflect distinct immune responses or suppressive mechanisms within the tumor.

Annotation Notes

The UMAPs demonstrate high-quality cell type annotation across multiple hierarchical levels (major, minor, subset), with well-separated and biologically coherent clusters.

• Cell Identity: The clustering aligns well with expected biological distinctions between major and minor cell types, with distinct populations for immune cells, epithelial cells, and stromal components. The presence of specific lung epithelial cell subtypes (Alveolar type 1/2, Airway Epithelial, Basal, Ciliated, Secretory club, Goblet, Ionocyte) further supports the tissue specificity.
• Embedding Structure: The overall embedding structure shows meaningful biological separation. The clear distinction between normal and tumor cells, and the specific localization of aneuploid cells, indicate that the UMAP effectively captures relevant biological variation.
• Sample Integration: While some minor sample-specific clustering is visible, particularly for normal samples, the tumor samples appear relatively well-integrated, suggesting the embedding is driven more by biological differences (e.g., condition, cell type) than by strong batch effects within the tumor group.
• Ploidy Annotation: The ploidy_dec annotation clearly delineates aneuploid populations, providing a strong marker for cancer cells and reinforcing the tumor-origin cell type identification. The low percentage of 'Unclear' cells (0.0%) suggests high confidence in ploidy calls.

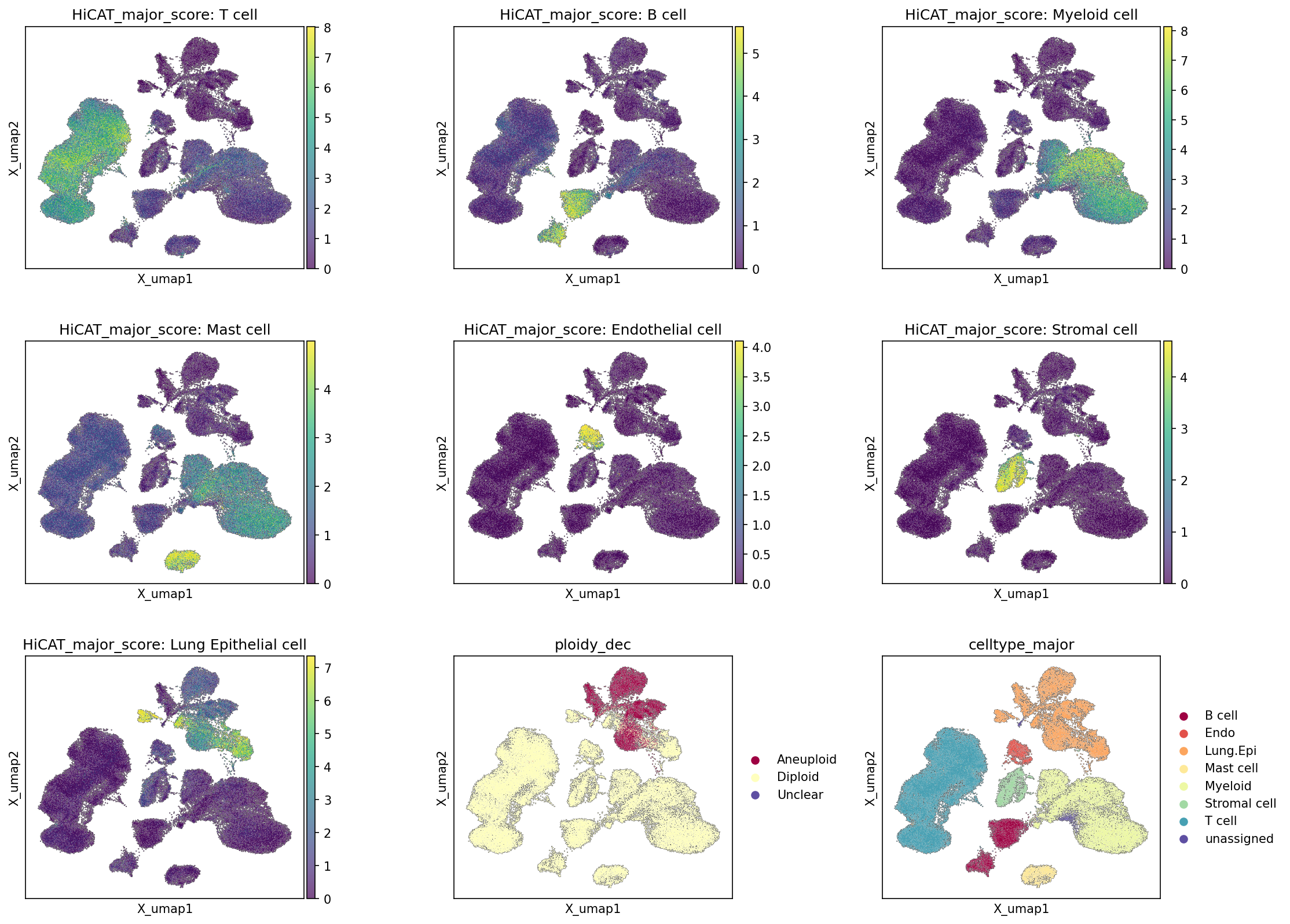

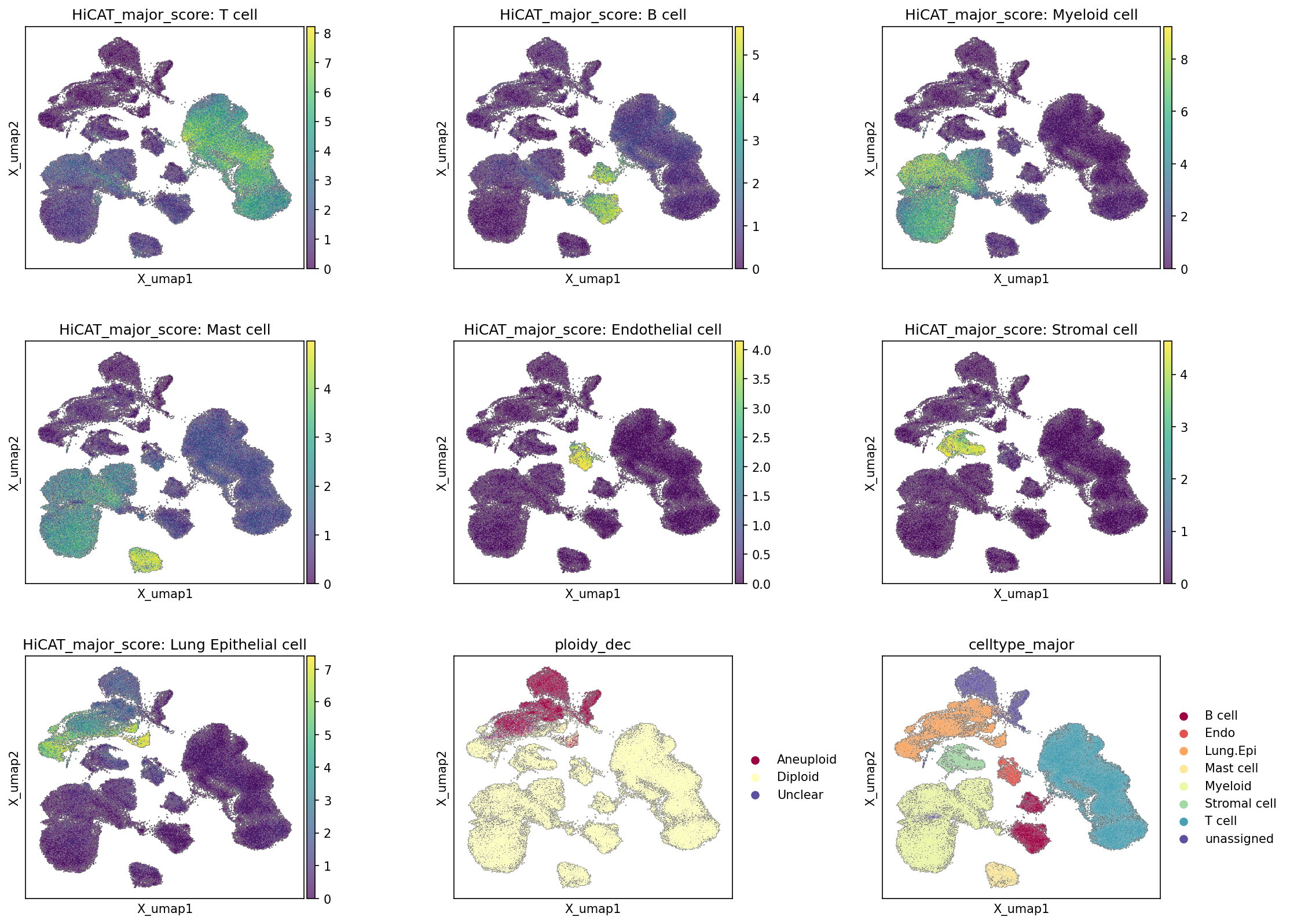

2. UMAP Visualization of Major Cell Type Scores and Ploidy in Lung scRNA-seq Data

[Analysis Visualization Results]...

Analysis Overview

This analysis utilizes Uniform Manifold Approximation and Projection (UMAP) to visualize the distribution of major cell type scores and ploidy status across a single-cell RNA-sequencing dataset from human lung tissue. Each UMAP plot represents the entire cellular landscape, with individual cells positioned based on their transcriptional similarity. The "HiCAT_major_score" plots display a continuous score reflecting the confidence of assignment to a specific major cell type, enabling a granular view of cell identity within the embedding. The ploidy_dec plot highlights cells identified as Aneuploid or Diploid, and the final celltype_major plot provides a discrete, pre-defined annotation for major cell types. The goal is to assess cell type composition, the spatial distribution of different cell populations, and the relationship between cell identity and ploidy.

Visual Summary

The UMAP embedding reveals a complex cellular landscape, consisting of multiple distinct and interconnected clusters.

• HiCAT_major_score Plots (T cell, Plasma cell, B cell, Myeloid cell, Mast cell, Endothelial cell, Stromal cell, Lung Epithelial cell): Each of these plots shows a distinct pattern of high scores (yellow/green regions) corresponding to specific areas within the UMAP.
• Immune Cells: T cells, B cells, Plasma cells, and Myeloid cells each form large, well-separated clusters with high scores, indicating clear transcriptional identities. Mast cells also form a distinct, smaller cluster.
• Structural/Support Cells: Endothelial cells and Stromal cells each occupy particular regions of the UMAP, with high scores delineating their respective clusters.
• Lung Epithelial cells: A prominent cluster with high Lung Epithelial cell scores is observed, primarily located in one distinct region of the UMAP, suggesting a major epithelial compartment.
• Overall, the high-score regions for each cell type generally correspond to spatially separated clusters, suggesting robust cell type identification. There are some areas of lower scores (purple/dark blue) indicating cells that do not strongly match the profile of the cell type shown, or potentially represent transitional states or less defined populations.
• ploidy_dec Plot: This plot displays the ploidy status of individual cells.
• The majority of cells are labeled as Diploid (yellow), forming the widespread background of the UMAP.
• A significant population of Aneuploid cells (red) is concentrated in specific clusters, predominantly co-localizing with a particular region that aligns with the Lung Epithelial cell score distribution. This observation is consistent with the data context indicating 'Resolved tumor-origin cell type: Lung Epithelial cell' and the presence of 11.5% aneuploid cells, which are often indicative of malignancy. Very few "Unclear" cells (purple) are observed, scattered across the embedding.
• celltype_major Plot: This plot shows the discrete, pre-assigned major cell type annotations for each cell.
• This plot largely confirms the patterns observed in the HiCAT_major_score plots. Each major cell type forms one or more distinct clusters: T cells occupy a large cluster, Myeloid cells form another, Lung Epithelial cells form a distinct region, and so on.
• The spatial separation and clustering of different cell types appear well-resolved, with minimal overlap between major populations. The 'unassigned' category represents a small fraction of cells that did not clearly cluster with a major type.

Biological Interpretation

The UMAP visualizations provide crucial insights into the cellular composition and heterogeneity of the lung tissue, particularly in the context of lung cancer.

1. Robust Cell Type Annotation: The strong congruence between the continuous HiCAT_major_score plots and the discrete celltype_major annotations confirms the quality and consistency of cell type identification in this dataset. Each major cell type occupies well-defined and largely non-overlapping regions in the UMAP, indicating distinct transcriptional profiles.
2. Tumor Cell Identification: The ploidy_dec plot, in conjunction with the celltype_major and HiCAT_major_score: Lung Epithelial cell plots, strongly supports the identification of malignant cells.

• Aneuploid cells, a hallmark of cancer, are predominantly localized within the cluster annotated as "Lung Epithelial cell". This directly aligns with the data context stating "Resolved tumor-origin cell type: Lung Epithelial cell" and the inferred disease context of Lung cancer. This suggests that the tumor cells are primarily of epithelial origin and exhibit genomic instability.
• The concentration of aneuploid cells within a specific epithelial cell cluster indicates a clonal expansion of malignant cells, typical of a developing or established tumor.

3. Tumor Microenvironment (TME) Composition: The presence and distribution of various immune and stromal cell types are highly relevant to the tumor microenvironment in lung cancer.

• Immune Infiltrate: A significant portion of the UMAP space is occupied by immune cells, including T cells, Myeloid cells (e.g., Macrophages, Dendritic cells), B cells, Plasma cells, and Mast cells. These cells form distinct clusters, suggesting diverse immune cell populations. The specific types and states of these immune cells (e.g., cytotoxic T cells, regulatory T cells, M1/M2 macrophages) would be critical for understanding anti-tumor immunity or immunosuppression within the TME, though these specific states are not resolved at the 'major cell type' level here.
• Stromal and Endothelial Components: The identification of distinct Stromal and Endothelial cell clusters highlights the presence of crucial supportive elements within the tissue. Stromal cells (e.g., fibroblasts) can contribute to tumor growth, extracellular matrix remodeling, and immune modulation, while endothelial cells form the vasculature essential for tumor blood supply and metastasis.

4. Cellular Heterogeneity: While major cell types form distinct clusters, the varying intensity of scores within these clusters, and sometimes the presence of multiple smaller clusters for a single major type (though not explicitly shown as separate clusters on the celltype_major plot, but inferable from score distributions), suggest underlying biological heterogeneity. This could represent different functional states, differentiation stages, or disease-associated alterations within a given cell population. For example, the T cell population occupies a large, somewhat spread-out region, hinting at the diversity of T cell subsets (e.g., CD4+, CD8+, regulatory) present.

Annotation Notes

• The UMAP plots successfully visualize major cell type distributions and ploidy status, confirming the spatial separation of distinct cell populations based on their transcriptional profiles.
• The high agreement between the continuous HiCAT_major_score distributions and the discrete celltype_major annotations supports the reliability of the cell type assignments.
• The clear co-localization of aneuploid cells with the Lung Epithelial cell cluster provides strong evidence for the identification of the tumor compartment and aligns well with the biological context of lung cancer.
• The visualization effectively highlights the diverse cellular composition of the lung tissue and its associated tumor microenvironment, laying a strong foundation for more detailed downstream analyses of specific cell types and their roles in disease.

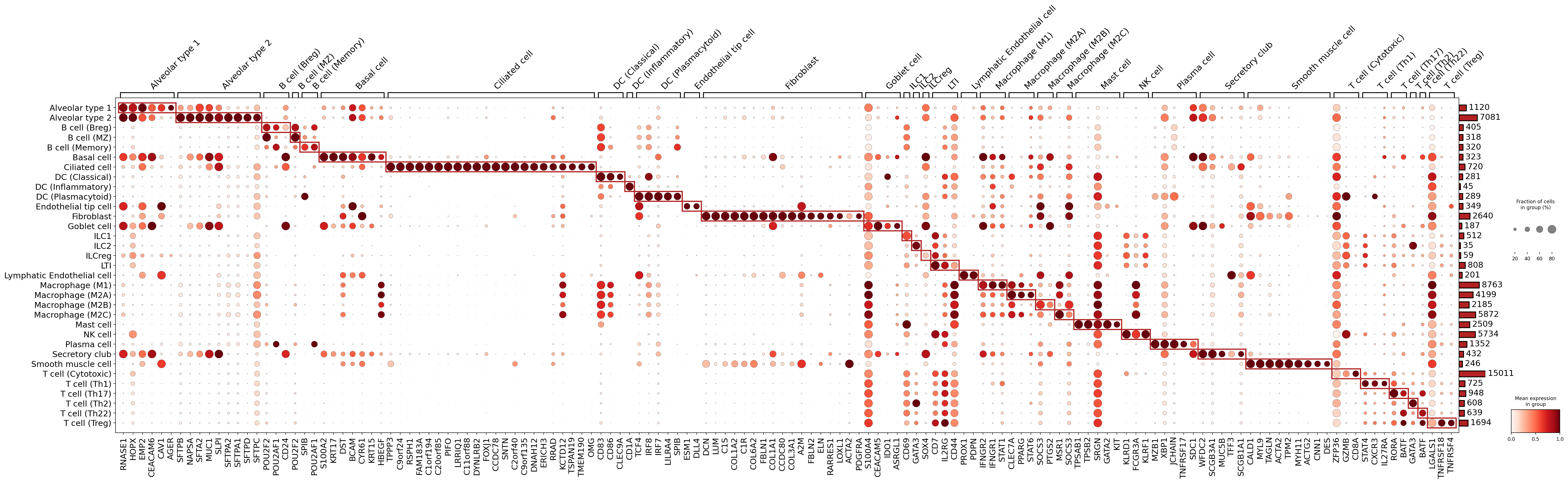

3. Marker Expression Profile Across Lung Cell Subsets Confirms Cell Type Annotations

[Analysis Visualization Results]...

Analysis Overview

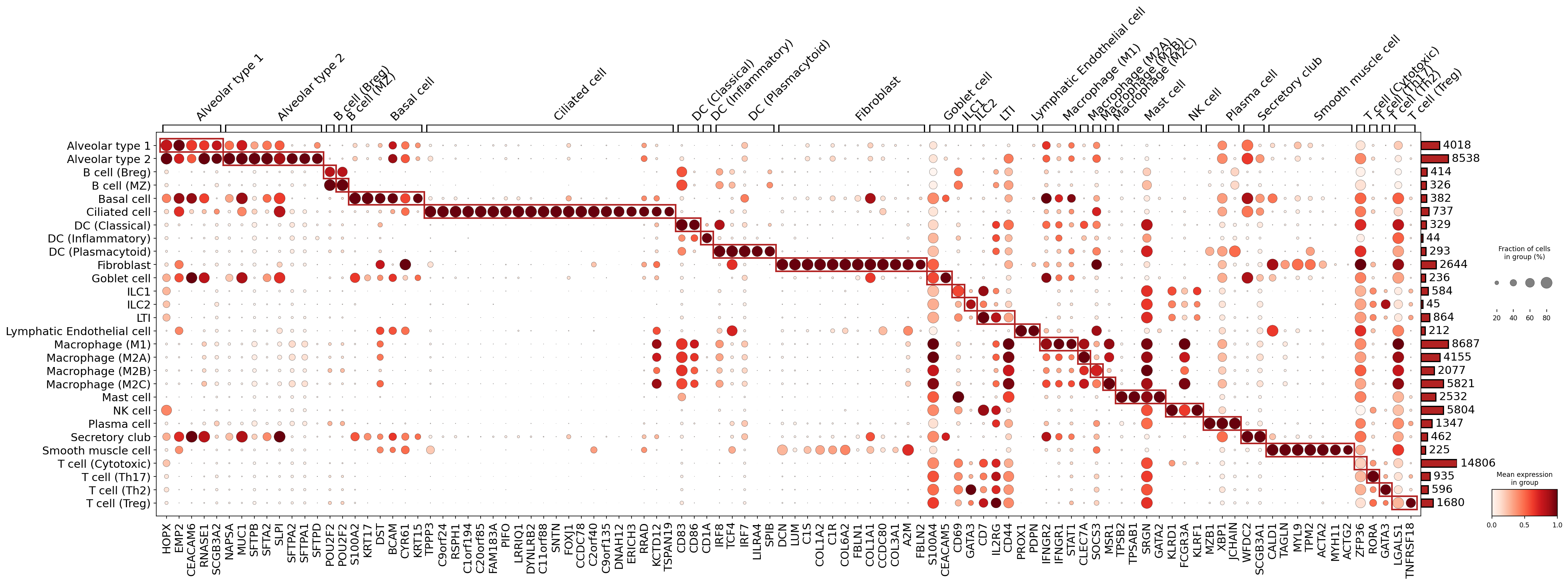

This analysis presents a marker expression dot plot, illustrating the expression levels and prevalence of selected marker genes across various celltype_subset populations derived from single-cell RNA-seq data of human lung tissue. The primary goal of this visualization is to assess the quality and biological consistency of the celltype_subset annotations by examining the specificity and enrichment of canonical cell type markers. The plot displays the mean expression (color intensity) and the fraction of cells expressing a gene (dot size) for a curated set of marker genes identified by differential expression analysis.

Visual Summary

The dot plot effectively visualizes the expression patterns of specific genes across 48 distinct celltype_subset populations. Key observations include:

• Distinct Cell-Type Specificity: Most cell types exhibit clear and distinct marker gene expression profiles, characterized by large, darkly colored dots along the diagonal, indicating high expression in a high fraction of cells within their respective annotated groups.
• Robust Annotation Support: Canonical markers for diverse cell lineages are prominently expressed in their expected cell subsets. For instance:
• B cells (Breg, Follicular, MZ, Memory) show strong expression of pan-B cell markers like *CD79A*, *CD79B*, and *MS4A1* (CD20).
• Endothelial cells (Endothelial, Endothelial tip, Lymphatic Endothelial) are marked by *PECAM1* (CD31) and *VWF*, with *PROX1* and *PDPN* distinguishing Lymphatic Endothelial cells.

Lung Epithelial cells subsets are well-defined

• Basal cells express *KRT5* and *KRT17*.
• Ciliated cells show high *FOXJ1* expression.
• Secretory club cells are marked by *SCGB3A1* and *WFDC2*.
• Alveolar type 1 cells express *HOPX* and *CAV1*.
• Alveolar type 2 cells are characterized by surfactant proteins like *SFTPC*, *SFTPB*, *SFTPA1*, and *SFTPA2*.

Myeloid cells are also well-resolved

• Mast cells show expression of *FCER1A* and *TPSAB1*.
• Dendritic cells (Classical, Inflammatory, Plasmacytoid) express specific markers such as *CLEC9A* (cDC1), *CD83*, and *IRF8*.
• Macrophages (M1, M2A-D) broadly express *MSR1* and *MRC1*.
• Stromal cells: Fibroblasts show *DCN* and *COL1A1*, while Smooth muscle cells express *ACTA2* and *MYH11*.
• T cells and NK cells: All T cell subsets express pan-T cell markers *CD3D* and *CD3E*. CD4+ T cell subsets (Memory, Naive, Tfh, Th1, Th17, Th2, Th22, Treg) show *CD4*, while CD8+ T cell subsets (Exhausted, Memory, Naive, Cytotoxic) express *CD8A* and *CD8B*. Cytotoxic T cells and NK cells are characterized by effector molecules such as *GZMA*, *GZMB*, *PRF1*, and *NKG7*. *KLRD1* (CD94) is also highly specific to NK cells.
• Plasma cells display high expression of *JCHAIN*, *XBP1*, and *MZB1*.
• Common Markers Panel: The rightmost column, labeled "common markers" (highlighted by a red box in the original plot), contains genes that are highly expressed across multiple related cell subsets, particularly within the T cell compartment (*CD3D*, *CD3E*, *GZMA*, *GZMB*, *PRF1*, *NKG7*, *CD8A*, *CD8B*, *CD4*). This indicates broad expression within immune cell lineages, rather than being pan-cellular housekeeping genes.

Biological Interpretation

The detailed and specific expression patterns of known canonical marker genes across the diverse celltype_subset annotations provide strong biological validation for the cell type identification. This confirms that the computational clustering and annotation process has successfully resolved distinct cellular populations within the lung single-cell RNA-seq dataset.

The high resolution of celltype_subset, particularly within immune cell types like T cells, macrophages, and dendritic cells, is crucial in the context of lung cancer. Different T cell subsets (e.g., cytotoxic T cells, exhausted T cells, Tregs) play distinct roles in anti-tumor immunity and immune evasion. Similarly, macrophage polarization states (M1 vs. M2) are highly relevant to the tumor microenvironment. The clear identification of these nuanced subsets based on their marker gene expression is fundamental for downstream analyses of cellular function and interactions in the tumor context. For example, the presence of specific markers for Alveolar type 1 and type 2 cells and other epithelial populations in the lung is essential, given the Resolved tumor-origin cell type: Lung Epithelial cell. The robustness of these annotations supports the reliability of subsequent analyses comparing different conditions (Tumor vs. Normal) and identifying disease-specific changes.

Annotation Notes

The marker expression dot plot provides excellent evidence for the biological validity of the celltype_subset annotations. The clear segregation of cell types based on canonical markers indicates a high-quality annotation. The surfaceome_only=True parameter in marker finding suggests that many of these identified markers are cell surface proteins, which are particularly valuable for experimental validation, such as flow cytometry or immunofluorescence, enabling direct isolation or visualization of these cell types in tissues. The visualization confirms that the cell annotation is granular and biologically accurate for the given single-cell RNA-seq dataset.

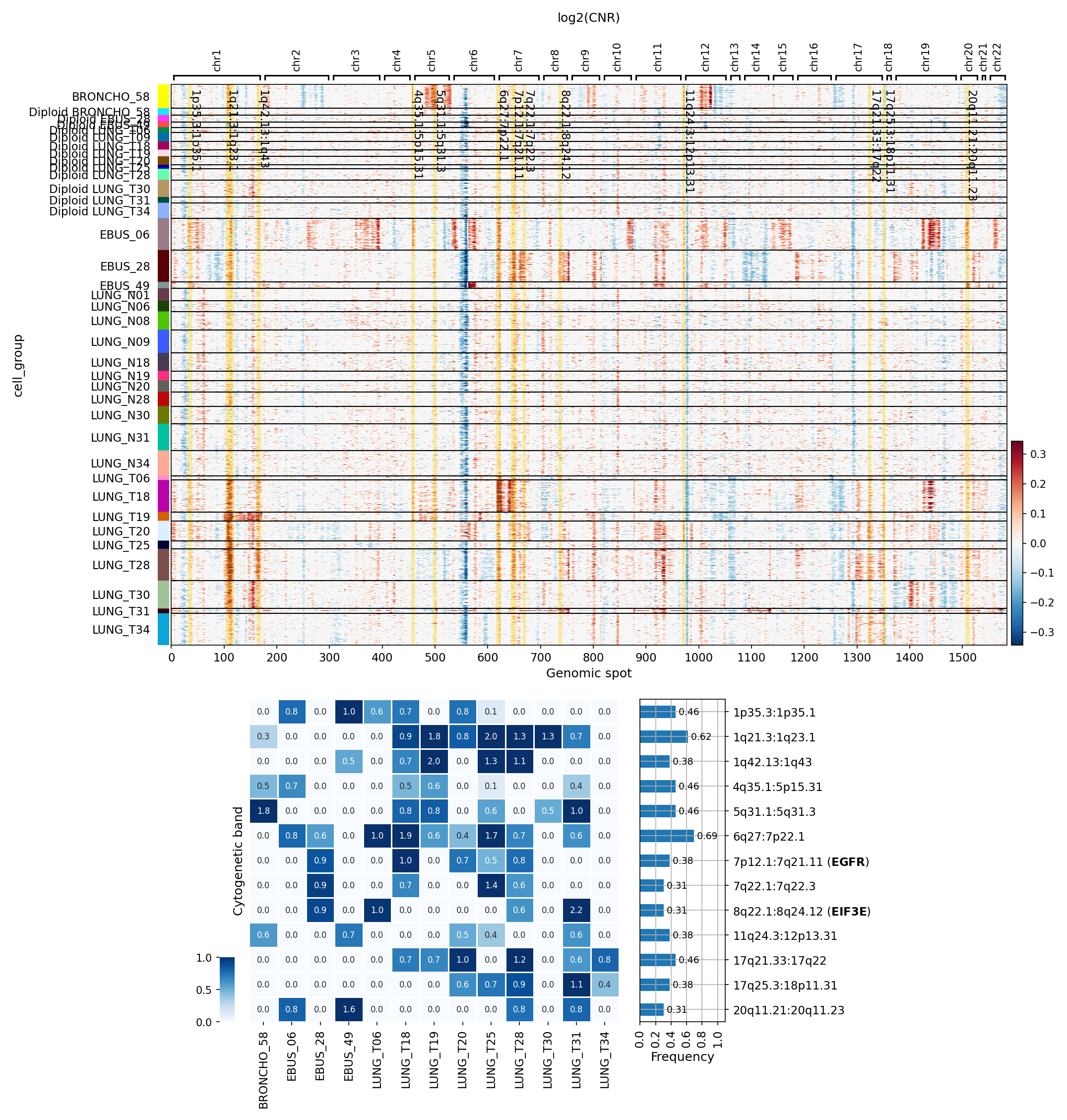

4. Copy Number Variation Analysis in Lung Epithelial Cells

[Analysis Visualization Results]...

Analysis Overview

This analysis characterizes copy number variations (CNVs) in Lung Epithelial cells, identified as the tumor-origin cell type from single-cell RNA sequencing data. The objective was to visualize the genomic landscape across different samples, distinguishing between diploid and potentially aneuploid/tumor cell populations, and to identify genomic regions exhibiting recurrent significant amplifications. The results are presented as a heatmap showing log2(Copy Number Ratio) (CNR) across genomic spots for individual cell groups, along with a summary heatmap and bar chart indicating the frequency of significant amplifications at the cytogenetic band level across tumor samples. This targeted approach focuses on the genomic integrity of Lung Epithelial cells in the context of lung cancer.

Visual Summary

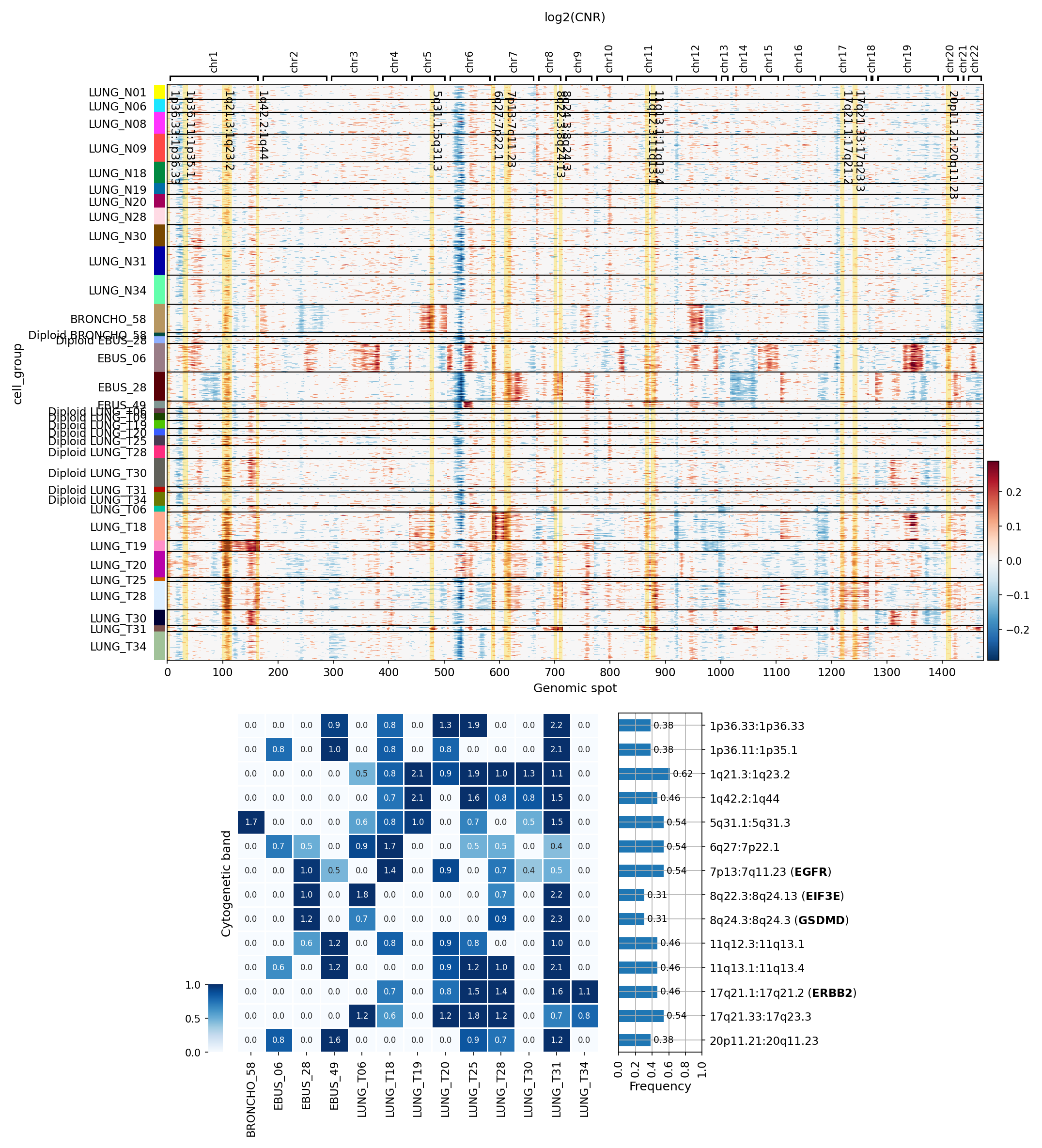

• CNV Heatmap (log2(CNR)): The main heatmap displays log2(CNR) values across approximately 1500 genomic spots spanning chromosomes 1 through 22. Each row represents a distinct cell group, combining sample identity and inferred ploidy status.
• Diploid Samples/Cells: Rows prefixed with "Diploid" (e.g., "Diploid LUNG_N01", "Diploid BRONCHO_58") predominantly correspond to normal tissue samples or diploid cell populations within tumor samples. These rows exhibit log2(CNR) values centered around 0 (represented by yellowish-green tones), indicating a largely stable, diploid genome with minimal copy number alterations.
• Tumor Samples/Cells: Samples not prefixed with "Diploid", particularly those identified as tumor samples (e.g., BRONCHO_58, EBUS_28, LUNG_T06 to LUNG_T34), demonstrate extensive genomic instability. These rows show distinct patterns of amplification (red, log2(CNR) > 0) and deletion (blue, log2(CNR) < 0) across various genomic regions.
• Intra- and Inter-Sample Heterogeneity: While widespread CNVs are evident in tumor samples, their specific patterns vary significantly across different samples, reflecting the genetic heterogeneity common in cancer.
• CNV Amplification Frequency Summary: The lower panel provides a detailed quantification of significantly amplified cytogenetic bands within the tumor samples.
• Heatmap (Left): This heatmap illustrates the frequency of significant amplifications for specific cytogenetic bands across individual tumor samples. Darker blue shades indicate higher frequencies of amplification for a given band within a particular sample.
• Bar Chart (Right): This accompanying bar chart aggregates the amplification frequencies across all tumor samples, highlighting the most recurrently amplified genomic regions.
• Recurrent Amplifications: Several cytogenetic bands show high frequencies of amplification, including 1q21.3:1q23.3, 1q32.1:2p25.3, 4q35.1:5p15.31, 5q22.3:5q31.3, 6q27:7p15.3, 7p13:7q11.23 (encompassing *EGFR*), 8q22.3:8q24.1 (containing *EIF3E*), and 17q12:17q21.2 (containing *ERBB2*). The amplifications involving *EGFR* and *ERBB2* are particularly prominent and widespread across multiple tumor samples.

Biological Interpretation

The observed CNV patterns provide crucial biological insights into lung cancer development and progression in Lung Epithelial cells.

1. Genomic Instability as a Cancer Hallmark: The stark contrast between the stable diploid genomes of normal cells and the widespread copy number alterations in tumor-derived Lung Epithelial cells is a fundamental characteristic of cancer. These genomic aberrations drive oncogenesis by altering gene dosage, leading to the activation of oncogenes or inactivation of tumor suppressors.
2. Key Oncogene Amplifications: The analysis identifies recurrent amplifications of genes with established roles in lung cancer pathogenesis:

• *EGFR* (Epidermal Growth Factor Receptor) at 7p13:7q11.23: *EGFR* amplification or activating mutations are critical oncogenic drivers in a significant proportion of non-small cell lung cancer (NSCLC) patients, particularly those with adenocarcinoma histology. Its amplification leads to hyperactivation of pro-growth and pro-survival signaling pathways. GeneCards: EGFR, PubMed: EGFR amplification lung cancer
• *ERBB2* (Erb-B2 Receptor Tyrosine Kinase 2, also known as HER2) at 17q12:17q21.2: While more commonly associated with breast cancer, *ERBB2* amplification or activating mutations occur in a subset of NSCLC and are considered actionable genomic alterations. Its amplification contributes to aggressive tumor phenotypes. GeneCards: ERBB2, PubMed: ERBB2 amplification lung cancer
• *EIF3E* (Eukaryotic Translation Initiation Factor 3 Subunit E) at 8q22.3:8q24.1: *EIF3E* plays a role in regulating protein synthesis. Its amplification and overexpression have been implicated in promoting cell proliferation and survival in various cancers, including lung cancer, by preferentially translating specific oncogenic mRNAs. GeneCards: EIF3E

3. Role of Lung Epithelial Cells: The specific identification of these CNVs within Lung Epithelial cells reinforces their established role as the cell of origin for many lung cancers, consistent with the dataset's 'Resolved tumor-origin cell type'. These findings underscore the transformation of normal lung epithelial cells into malignant cells through the accumulation of such genomic alterations.
4. Genomic Heterogeneity: The observed variability in CNV patterns among different tumor samples highlights the genomic heterogeneity within lung cancer, emphasizing that each patient's tumor can harbor a unique set of genomic alterations influencing its biology and response to therapy.

Clinical or Translational Implications

The identification of specific CNVs in Lung Epithelial cells has direct clinical and translational relevance in the management of lung cancer.

• Biomarker for Diagnosis and Prognosis: The presence of recurrent amplifications, especially of established oncogenes like *EGFR* and *ERBB2*, can serve as valuable diagnostic and prognostic biomarkers. Their detection can aid in confirming malignancy and potentially predicting disease aggressiveness or patient outcome.
• Guidance for Targeted Therapy: The identification of *EGFR* amplification strongly suggests that patients could benefit from *EGFR*-tyrosine kinase inhibitors (TKIs), a cornerstone of personalized therapy in NSCLC. Similarly, *ERBB2* amplification may qualify patients for specific anti-HER2 targeted therapies. These findings underscore the potential for precision medicine approaches based on the genomic profile of the tumor.
• Personalized Medicine: The heterogeneous nature of CNVs across different patient samples highlights the necessity for individualized genomic profiling to inform tailored treatment strategies. A "one-size-fits-all" approach is less effective given the molecular diversity revealed by CNV analysis.
• Future Research Avenues: Other frequently amplified regions (e.g., on chromosomes 1, 4, 5, 6) warrant further investigation to identify novel oncogenes or regulatory elements that could serve as new therapeutic targets or predictive biomarkers, expanding the landscape of actionable alterations in lung cancer.

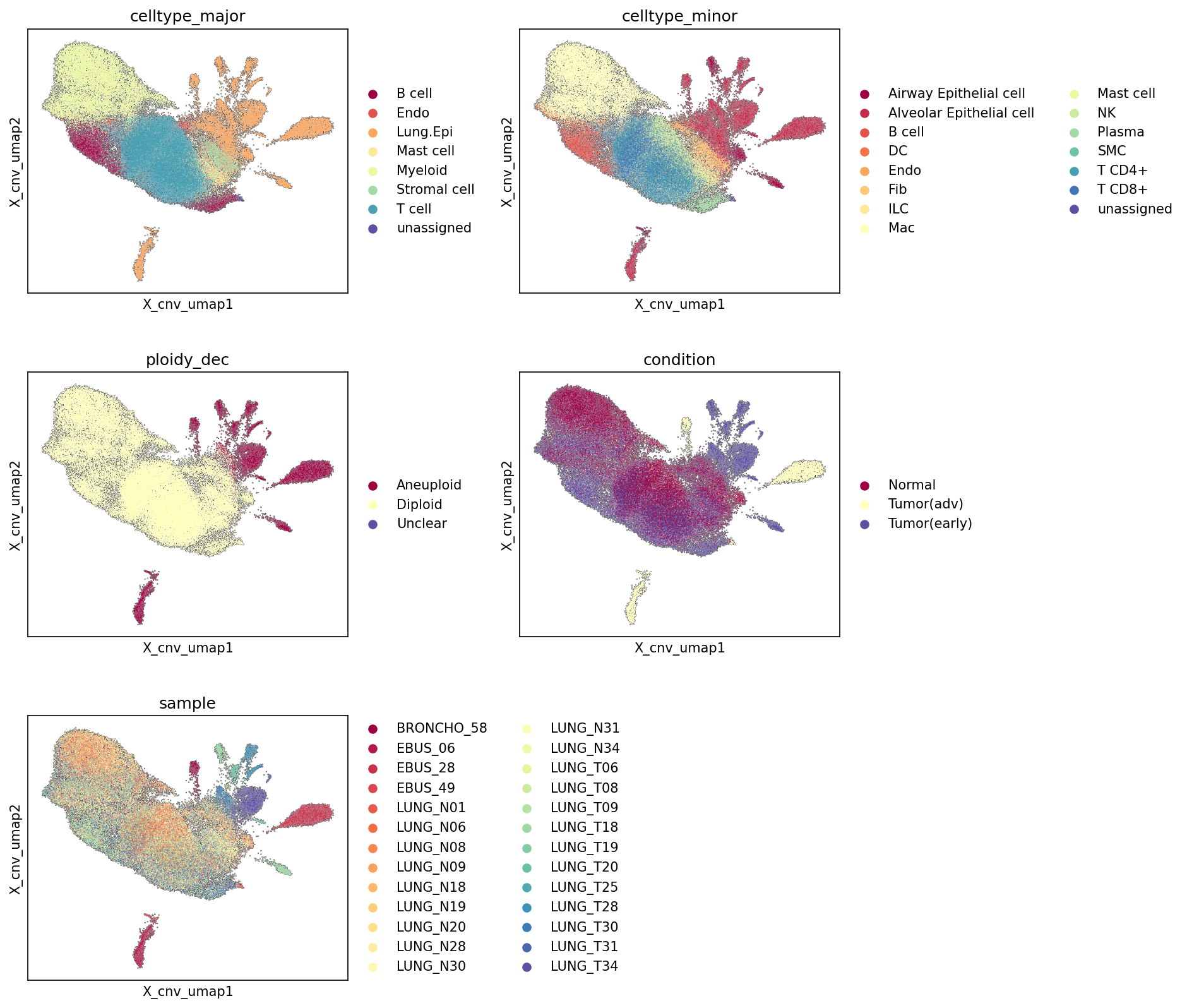

5. UMAP Visualization of CNV Patterns by Cell Type, Ploidy, Condition, and Sample

[Analysis Visualization Results]...

Analysis Overview

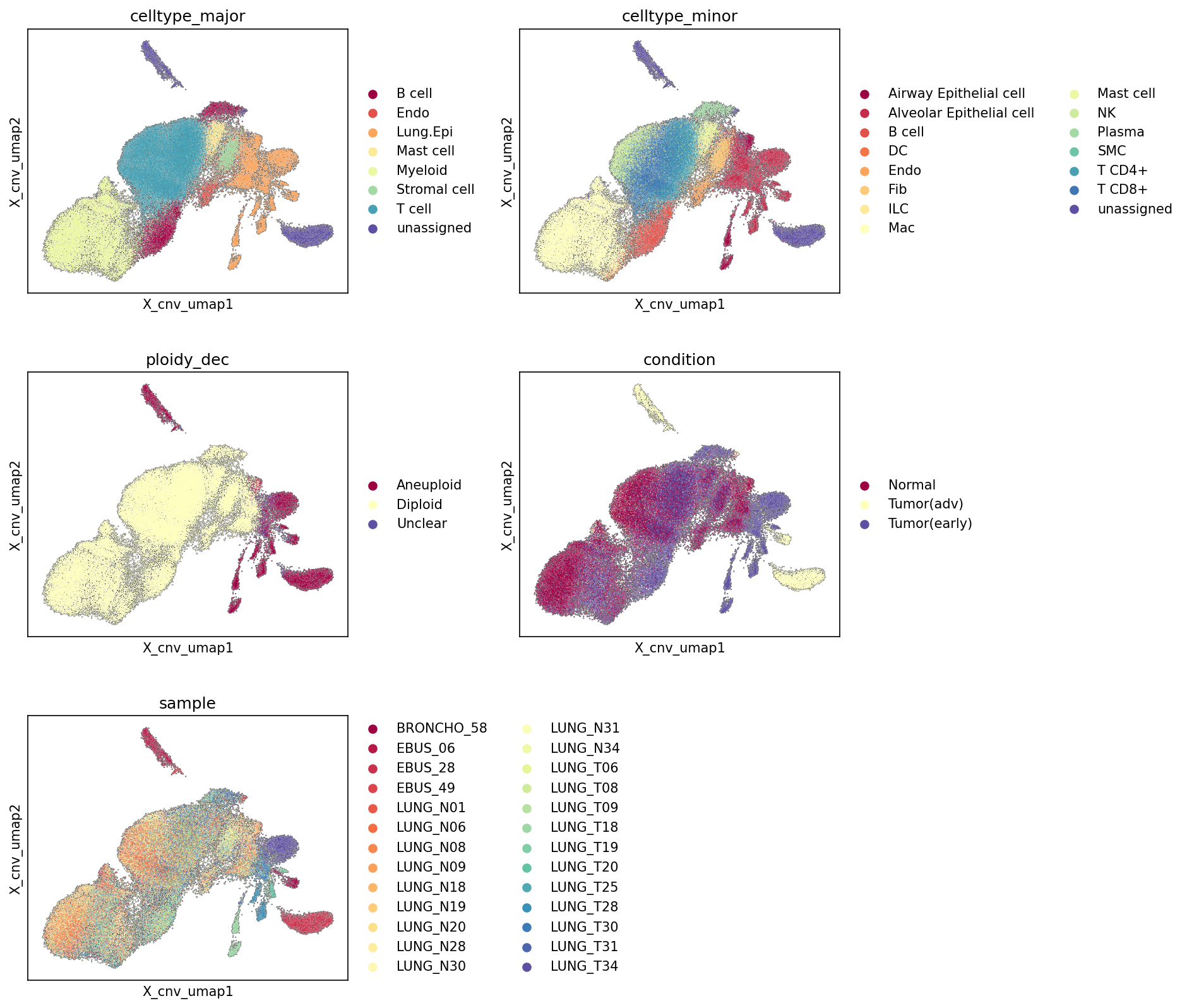

This analysis presents UMAP (Uniform Manifold Approximation and Projection) plots generated using Copy Number Variation (CNV) patterns, visualizing the cellular landscape of the single-cell RNA-seq data. The cells are colored according to major cell type, minor cell type, ploidy status, disease condition, and individual sample to reveal structural relationships and validate annotations. The embedding highlights how CNV profiles contribute to the separation and clustering of different cell populations, particularly in the context of tumor and normal tissues.

Visual Summary

celltype_major UMAP

The UMAP colored by celltype_major shows distinct clustering of major cell types. Lung Epithelial cells (orange) form a relatively compact and separate cluster, notably in the upper-central region of the UMAP. T cells (dark blue) and B cells (dark red) also form clear, distinct clusters. Myeloid cells (light green/yellow) and Stromal cells (light green) are more broadly distributed, often co-localizing with each other. The 'unassigned' cells (purple) are very few and scattered, indicating a comprehensive major cell type annotation.

celltype_minor UMAP

The celltype_minor UMAP provides a finer resolution of the cell types. Within the broader T cell cluster, CD8+ T cells (dark blue) and CD4+ T cells (light blue) show some degree of separation. The Lung Epithelial cluster from the major cell type map is further refined, likely including Alveolar Epithelial cells and Airway Epithelial cells. Macrophages (Mac, light yellow) comprise a significant portion of the Myeloid population, and Fibroblasts (Fib, orange) contribute to the Stromal cluster. This level of detail confirms the robust identification of specific cell subsets.

ploidy_dec UMAP

The ploidy_dec UMAP reveals a striking separation based on ploidy status. A distinct, prominent cluster of Aneuploid cells (dark red) is clearly visible in the upper-central and some peripheral regions of the UMAP. The vast majority of cells, identified as Diploid (light yellow), occupy the large, central, and top-right portions of the UMAP. 'Unclear' ploidy status cells (dark blue) are very rare and diffusely distributed, suggesting high confidence in ploidy assignments for most cells. This separation strongly suggests that CNV differences are a primary driver of the UMAP's structure, effectively distinguishing cells with chromosomal abnormalities.

condition UMAP

The condition UMAP shows the distribution of cells from 'Normal' (dark red), 'Tumor(adv)' (light yellow), and 'Tumor(early)' (purple) samples. 'Normal' cells primarily occupy the large, diploid-rich regions of the UMAP. Conversely, the Aneuploid clusters observed in the ploidy_dec UMAP are heavily enriched with cells from 'Tumor(adv)' and 'Tumor(early)' conditions. There is considerable overlap and mixing between 'Tumor(adv)' and 'Tumor(early)' cells within the aneuploid clusters, suggesting similar CNV patterns regardless of the tumor stage as defined here. Some tumor cells also appear scattered among the diploid populations, which could represent non-malignant cells within the tumor microenvironment.

sample UMAP

The sample UMAP displays the contribution of individual patient samples to the overall cellular landscape. While some samples show distinct small clusters, there is generally good mixing of cells from different samples within the larger cell type and ploidy-defined clusters. This indicates that the UMAP structure primarily reflects biological variation (e.g., cell types, ploidy, condition) rather than strong batch effects. The aneuploid clusters, in particular, appear to be composed of cells from multiple tumor samples (e.g., various LUNG_T and EBUS samples), reinforcing the commonality of CNV-driven cellular states across different individuals with lung cancer.

Biological Interpretation

The CNV-informed UMAP provides a powerful visualization of the cellular architecture in lung cancer. The most prominent biological finding is the clear segregation of cells based on their ploidy status, with aneuploid cells forming distinct clusters. These aneuploid clusters predominantly originate from Lung Epithelial cells, which is highly consistent with the inferred tumor-origin cell type and the context of lung cancer, where epithelial cells undergo malignant transformation and often acquire aneuploidy PubMed search: aneuploidy lung cancer epithelial origin.

The enrichment of 'Tumor(adv)' and 'Tumor(early)' cells within these aneuploid clusters strongly supports their identification as malignant cell populations. Conversely, 'Normal' cells are largely confined to the diploid-rich regions, representing healthy lung tissue components. The presence of T cells, B cells, Myeloid cells, and Stromal cells across both normal and tumor conditions (though some showing differential distribution) reflects the complex tumor microenvironment, where immune and stromal cells interact with tumor cells.

The UMAP effectively demonstrates that CNV profiles are highly informative for distinguishing tumor cells from non-malignant cells and for characterizing the intrinsic genomic alterations within the tumor population. The similar clustering of 'Tumor(adv)' and 'Tumor(early)' aneuploid cells suggests that the overall CNV landscape in these malignant epithelial populations might share core features even at different clinical stages, although more subtle differences could exist at the gene level. The observed sample mixing further enhances confidence that the identified clusters represent genuine biological states rather than patient-specific artifacts.

Annotation Notes

The UMAP analysis confirms the robustness and quality of several key annotations within the AnnData object.

• Cell Type Annotation: The distinct clustering of both major and minor cell types on the CNV-driven UMAP indicates that the cell type annotations are well-defined and biologically relevant, separating different cell lineages effectively.
• Ploidy Status: The clear separation of aneuploid and diploid cells validates the ploidy_dec annotation, suggesting that the CNV estimation successfully identified cells with chromosomal aberrations characteristic of malignancy. The minimal number of 'Unclear' cells further supports this confidence.
• Condition and Sample: The distribution of cells by condition and sample is consistent with the expected biological scenario in cancer studies, where tumor cells (from early and advanced stages) exhibit distinct CNV patterns compared to normal cells. The effective integration of cells from various samples indicates a robust underlying embedding, minimizing strong batch effects.
• Consistency with Tumor Origin: The strong concordance between the aneuploid clusters, Lung Epithelial cells, and tumor conditions directly supports the "Resolved tumor-origin cell type: Lung Epithelial cell" finding.

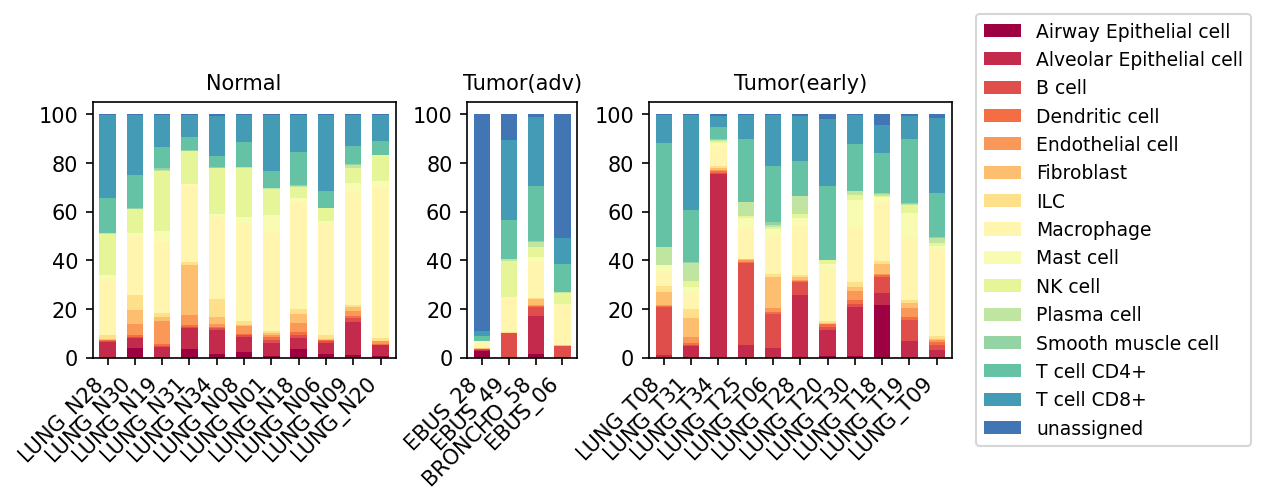

6. Cell Type Population Analysis in Lung Cancer Conditions

[Analysis Visualization Results]...

Analysis Overview

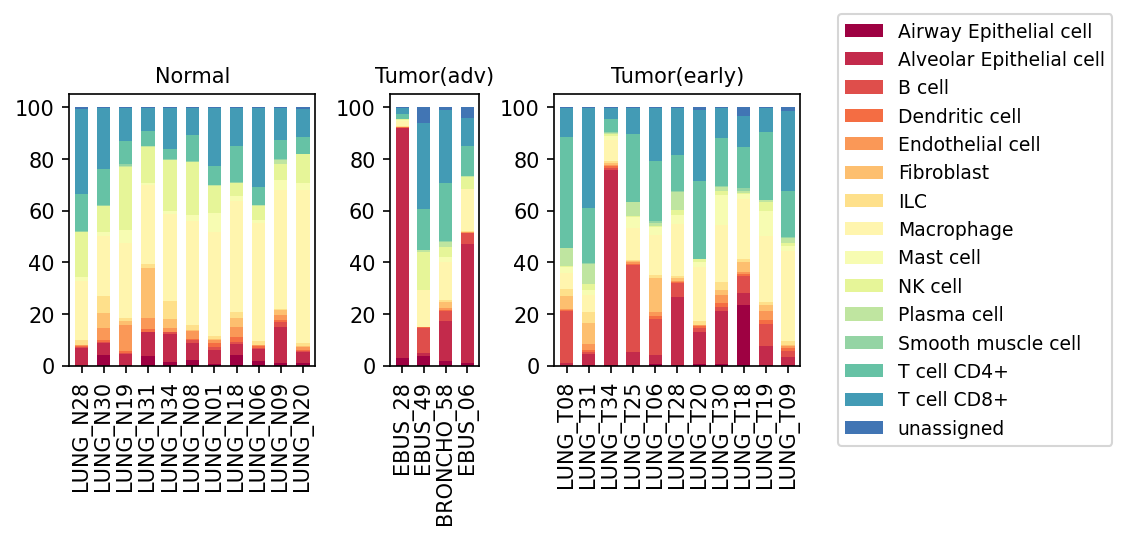

This analysis presents a population bar plot of minor cell types across individual samples from Normal, early-stage Tumor (Tumor(early)), and advanced-stage Tumor (Tumor(adv)) lung tissues. The primary goal is to visualize and interpret the cellular heterogeneity and shifts in the composition of the lung tissue microenvironment under different disease conditions, with a specific focus on lung cancer. This provides insights into the impact of tumorigenesis and progression on cellular landscapes.

Visual Summary

The stacked bar plots illustrate the relative proportions of various minor cell types within each sample, grouped by condition.

• Normal Condition: Normal lung samples exhibit a diverse cellular composition. Dominant populations include 'unassigned' cells (which could represent a mixture of rare cells or cells with ambiguous annotations), T cells (CD4+ and CD8+), Macrophages, and Alveolar Epithelial cells. Fibroblasts, B cells, Dendritic cells, and Plasma cells are also consistently present, albeit in smaller proportions.
• Tumor(early) Condition: A striking feature of early-stage tumors is the substantial expansion of epithelial cell populations, particularly 'Alveolar Epithelial cell' and 'Airway Epithelial cell'. For instance, in sample LUNG_T34, Alveolar Epithelial cells constitute a very large proportion of the total cells. Similarly, samples like LUNG_T08, LUNG_T31, LUNG_T25, LUNG_T18, and LUNG_T09 show significant epithelial cell presence. Immune cell populations (e.g., T cells, Macrophages) are still present but appear relatively diminished in proportion due to the expansion of tumor-originating epithelial cells.
• Tumor(adv) Condition: The advanced tumor samples show a distinct cellular profile, differing from both Normal and early-stage tumors. A high proportion of 'unassigned' cells is observed across all advanced tumor samples (e.g., EBUS_28, EBUS_49, BRONCHO_58, EBUS_06). While epithelial cells (Alveolar and Airway Epithelial cells) are present, their relative proportions are generally lower than in early-stage tumors. Macrophages and T cells (CD4+ and CD8+) continue to be components of the tumor microenvironment, with varying proportions across samples.

Biological Interpretation

The observed shifts in cell type populations provide critical insights into the evolving cellular landscape during lung cancer progression.

• Tumorigenesis and Epithelial Cell Expansion: The significant increase in 'Alveolar Epithelial cell' and 'Airway Epithelial cell' populations in 'Tumor(early)' samples strongly supports the 'Resolved tumor-origin cell type: Lung Epithelial cell' from the data context. This indicates the primary tumor mass at early stages is largely composed of proliferating malignant epithelial cells.

Dynamic Tumor Microenvironment (TME):

• Normal Lung Homeostasis: The normal lung environment reflects a balanced cellular ecosystem, with epithelial cells forming the structural and functional core, supported by diverse immune cells (T cells, Macrophages for surveillance), and stromal elements (Fibroblasts, Endothelial cells).
• Early Tumor Evolution: In early tumors, the dominant biological event is the uncontrolled proliferation of epithelial cells. This expansion dilutes the relative proportion of resident immune and stromal cells, though these non-malignant cells are crucial for shaping the nascent TME.
• Advanced Tumor Complexity: The advanced tumor microenvironment shows increased complexity and heterogeneity. The high 'unassigned' cell fraction in 'Tumor(adv)' could represent highly dedifferentiated malignant cells that are difficult to classify, or novel cell states associated with advanced disease. The relatively lower proportion of identified epithelial cells compared to early tumors (despite being the tumor origin) could imply increased infiltration of immune and stromal cells, or sampling biases, or altered cellular states that defy easy classification. Macrophages and T cells remain integral, highlighting their continuous involvement in tumor progression and immune modulation.
• Immune Cell Context: While T cells and Macrophages are present in all conditions, their dynamic changes in proportion hint at the evolving immune response. In advanced disease, these immune cells might be functionally altered (e.g., T cell exhaustion, M2-polarization of macrophages) to promote tumor growth or evade immune surveillance, though this plot only shows proportions and not functional states.

Clinical or Translational Implications

Understanding the dynamic changes in cell type composition across lung cancer stages has several clinical and translational implications:

• Biomarkers for Early Detection and Staging: The distinctive epithelial cell expansion in early-stage tumors could potentially serve as a robust cellular biomarker for early disease detection or for distinguishing early from advanced disease. Quantitative assessment of tumor-associated epithelial cells relative to other cell types might aid in staging and prognostic assessment.
• Targeting the Tumor Microenvironment: The evolving cellular composition of the TME at different stages suggests that therapeutic strategies might need to be stage-specific. For instance, in early tumors, targeting epithelial cell proliferation is key. In advanced tumors, addressing the complex interplay between heterogeneous cancer cells, immune cells (e.g., promoting anti-tumor T cell responses, repolarizing macrophages), and stromal components might be more effective.
• Addressing Unassigned Cell Populations: The significant 'unassigned' cell fraction in advanced tumors highlights a knowledge gap. Further investigation into these cells is crucial, as they may represent novel cancer cell states, cancer stem cells, or uncharacterized stromal components that contribute to tumor aggressiveness, metastasis, or drug resistance. Resolving their identity could unveil new therapeutic targets or resistance mechanisms.

Annotation Notes

• The 'unassigned' cell population is notably high, particularly in the advanced tumor samples. Re-analysis with refined annotation strategies or more specific markers might help resolve these cells, offering a more complete picture of the tumor microenvironment. These could represent cells of low quality, artifacts, or genuinely rare/unusual cell types that warrant further investigation.
• The plot displays relative proportions. Absolute cell counts or cell density information, if available, would offer a complementary view by distinguishing whether a cell type's decreased proportion is due to its absolute reduction or the expansion of other populations.
• The 'minor cell type' level provides a good overview, but finer resolution (celltype_subset such as T cell (Cytotoxic), Macrophage (M2B)) would offer deeper insights into specific cell states and functions within the TME.

7. Analysis of T cell and ILC Subpopulation Dynamics in Lung Cancer

[Analysis Visualization Results]...

Analysis Overview

This analysis presents a stacked bar plot visualizing the relative proportions of T cell subsets and innate lymphoid cells (ILCs) across individual samples, stratified by disease condition: Normal, Tumor (advanced), and Tumor (early). This allows for a comparative assessment of immune cell landscape shifts in the lung microenvironment during different stages of lung cancer progression. The plot specifically focuses on the celltype_subset level within the broader T cell celltype_major category, including related cell types like NK cells and ILCs for a comprehensive view of the T-lymphoid compartment.

Visual Summary

The stacked bar plot effectively illustrates the varying proportions of T cell subsets, NK cells, and ILCs across individual lung samples under Normal, advanced Tumor, and early Tumor conditions.

• Normal Samples: These samples exhibit a relatively diverse T cell and ILC profile. Notably, NK cells and ILCreg populations (represented by darker orange and red shades) constitute a significant proportion of the immune cells in this compartment. T cell populations such as T cell (CD4 Memory), T cell (CD8 Cytotoxic), and T cell (CD8 Memory) are also well represented. T cell (Treg) (dark blue) appears as a minor, consistent component.
• Tumor(adv) Samples: In advanced tumor samples, there is a noticeable shift in the immune cell composition. The proportion of NK cells and ILCreg (orange/red) appears reduced compared to normal lung tissue. Conversely, T cell (CD8 Exhausted) (light yellow) shows a more prominent presence in several advanced tumor samples, suggesting a potential immune exhaustion phenotype. T cell (Cytotoxic) (light green) remains a significant component, but its overall activity might be compromised by exhaustion. T cell (Treg) proportions might be slightly increased in some advanced tumor samples.
• Tumor(early) Samples: Early tumor samples display a mixed pattern, sharing some characteristics with both normal and advanced tumor conditions. Similar to advanced tumors, there is a trend towards reduced NK cell and ILCreg populations compared to normal. T cell (CD8 Exhausted) is also present, though its proportion appears more variable across early tumor samples than in advanced ones. The representation of T cell (CD8 Memory) and T cell (Cytotoxic) remains substantial, highlighting the ongoing immune response even in early stages.

Biological Interpretation

The observed shifts in T cell and ILC subpopulations provide critical insights into the immune microenvironment in lung cancer.

1. Diminished Innate Anti-tumor Immunity: The apparent reduction in NK cells and ILCreg populations in both early and advanced tumor conditions compared to normal tissue suggests a potential weakening of innate immune surveillance. NK cells are crucial for directly killing tumor cells and producing cytokines that promote adaptive anti-tumor responses. ILCreg cells, while less studied, are part of the innate lymphoid cell family, which plays diverse roles in tissue homeostasis and immunity. Their decrease may indicate an impaired initial immune response against developing tumors. PubMed search: NK cell function in lung cancer immunotherapy
2. T cell Exhaustion in Tumor Microenvironment: The increased prominence of T cell (CD8 Exhausted) in tumor samples, particularly in advanced stages, is a hallmark of chronic antigen exposure in cancer. T cell exhaustion is characterized by progressive loss of effector function, impaired cytokine production (e.g., IFN-$\gamma$), and upregulation of inhibitory receptors (e.g., PD-1, CTLA-4). This state hinders effective anti-tumor immunity and is a major mechanism of immune evasion by cancer cells. The presence of T cell (CD8 Exhausted) in early tumors suggests that immune suppression begins early in tumor development. GeneCards: PDCD1 (PD-1)
3. Dynamic Balance of CD8+ T cells: While T cell (CD8 Exhausted) cells are increased, T cell (Cytotoxic) and T cell (CD8 Memory) populations remain significant. This indicates an ongoing, albeit potentially compromised, cytotoxic T cell response against the tumor. The balance between functional cytotoxic T cells and exhausted T cells is crucial for determining the efficacy of the immune response.
4. Regulatory T cell (Treg) Involvement: A subtle increase in T cell (Treg) proportions in some tumor samples, particularly advanced ones, is consistent with their known role in establishing an immunosuppressive tumor microenvironment. Tregs suppress effector T cell function, promoting immune tolerance towards tumor antigens and facilitating tumor growth. PubMed search: Treg role in lung cancer immune evasion

Clinical or Translational Implications

These findings have significant implications for understanding lung cancer progression and developing therapeutic strategies.

• Immunotherapy Response Prediction: The prevalence of T cell (CD8 Exhausted) cells suggests that patients with higher proportions of these cells might be candidates for immune checkpoint blockade therapies (e.g., anti-PD-1/PD-L1) designed to reverse T cell exhaustion and reactivate anti-tumor immunity.
• Combination Therapies: The observed decrease in NK cells and ILCreg might indicate a need for combination therapies that not only target T cell exhaustion but also bolster innate immune responses, for instance, by activating NK cells.
• Early Disease Biomarkers: Monitoring the shifts in NK cells, ILCreg, and T cell (CD8 Exhausted) populations in early-stage lung cancer could serve as prognostic biomarkers for disease progression or indicators of immune evasion, potentially guiding early intervention strategies.
• Targeting Immunosuppression: The potential increase in T cell (Treg) highlights the importance of strategies aimed at depleting or modulating Treg function to enhance anti-tumor immunity in lung cancer.

8. Differential T Cell Subset Proportions Across Lung Cancer Stages

[Analysis Visualization Results]...

Analysis Overview

This analysis investigates the proportional representation of various T cell subsets in the lung tissue across three conditions: early-stage tumor (Tumor(early)), advanced-stage tumor (Tumor(adv)), and normal lung tissue (Normal). Box plots are used to visualize the cell type proportions, and statistical significance (p-value < 0.1) is assessed between conditions. The goal is to identify T cell population shifts that correlate with lung cancer progression.

Visual Summary

The box plots illustrate the distribution of cell type proportions for eight T cell subsets across conditions. Statistically significant differences (p < 0.1) between specific conditions are highlighted.

• T cell (CD4 Memory): Significantly higher proportion in Tumor(early) compared to Normal tissue (p=9.16e-07). No significant difference between Tumor(adv) and Normal (p=0.337) or between Tumor(early) and Tumor(adv) (p=0.194).
• Tfh (T follicular helper cells): Significantly higher proportion in Tumor(early) compared to Normal tissue (p=7.73e-06). No significant difference between Tumor(adv) and Normal (p=0.525) or between Tumor(early) and Tumor(adv) (p=0.122).
• Th17: Significantly higher proportion in Tumor(early) compared to Normal tissue (p=0.0025). Conversely, Th17 cells are significantly lower in Tumor(adv) compared to Normal tissue (p=0.0508) and significantly lower in Tumor(adv) compared to Tumor(early) (p=0.000163).
• T cell (CD8 Memory): Significantly higher proportion in Tumor(early) compared to Normal tissue (p=0.000542). No significant difference between Tumor(adv) and Normal (p=0.469) or between Tumor(early) and Tumor(adv) (p=0.326).
• Treg (Regulatory T cells): Significantly higher proportion in Tumor(early) compared to Normal tissue (p=0.001). No significant difference between Tumor(adv) and Normal (p=0.283) or between Tumor(early) and Tumor(adv) (p=0.871).
• T cell (CD4 Naive): Significantly higher proportion in Tumor(early) compared to Normal tissue (p=0.00191). The proportion is also significantly higher in Tumor(adv) compared to Normal tissue (p=0.0527). No significant difference between Tumor(early) and Tumor(adv) (p=0.894).
• Th22: Not significantly different between Tumor(early) and Normal (p=0.67). However, Th22 cells are significantly lower in Tumor(adv) compared to Normal tissue (p=0.0236) and significantly lower in Tumor(adv) compared to Tumor(early) (p=0.00401).
• T cell (CD8 Exhausted): Significantly higher proportion in Tumor(early) compared to Normal tissue (p=0.0043). No significant difference between Tumor(adv) and Normal (p=0.226) or between Tumor(early) and Tumor(adv) (p=0.638).

Biological Interpretation

The analysis reveals substantial changes in T cell subset composition within the lung tumor microenvironment, particularly between early tumor stages and normal tissue, and notable shifts as the disease progresses to advanced stages.

1. Early Immune Infiltration and Activation: The consistently higher proportions of T cell (CD4 Memory), Tfh, Th17, T cell (CD8 Memory), Treg, T cell (CD4 Naive), and T cell (CD8 Exhausted) in early tumors compared to normal tissue suggest an initial immune response to the developing malignancy. This influx of T cells, including memory and naive populations, indicates active immune cell recruitment and potential anti-tumor immune responses, or at least attempts thereof, at early stages. Tfh cells, important for B cell immunity, are also elevated, possibly supporting a humoral response.
2. Immune Dysregulation and Evasion in Progression:

• Th17 and Th22 Decline: A striking observation is the significant decrease in Th17 and Th22 cell proportions in advanced tumors compared to both early tumors and normal tissue. Th17 cells have context-dependent roles in cancer, sometimes promoting anti-tumor immunity and sometimes contributing to pro-tumor inflammation and growth. Th22 cells are involved in tissue homeostasis and inflammation. Their decline in advanced lung cancer might signify a shift towards a less inflammatory, more immunosuppressive tumor microenvironment, or a loss of certain protective responses, which could facilitate tumor progression.
• Persistent Immunosuppression: Regulatory T cells (Tregs), known suppressors of anti-tumor immunity, are significantly elevated in early tumors compared to normal tissue and appear to remain elevated, though not statistically significant against normal in advanced tumors. This early and potentially sustained presence of Tregs suggests the establishment of an immunosuppressive environment from the onset, hindering effective anti-tumor responses. PubMed search: Tregs in lung cancer microenvironment
• Early Exhaustion of CD8 T cells: The significant increase in T cell (CD8 Exhausted) in early tumors compared to normal tissue is a critical finding. It indicates that even at an early stage, persistent antigen stimulation within the tumor microenvironment leads to the dysfunction of cytotoxic CD8 T cells, a hallmark of chronic infection and cancer. This exhaustion can limit the efficacy of anti-tumor immunity. GeneCards: PDCD1 (Programmed Cell Death 1 - marker for exhaustion)

Clinical or Translational Implications

These findings have several potential clinical and translational implications for lung cancer:

• Prognostic Biomarkers: The dynamic changes in Th17 and Th22 cell populations, particularly their decrease in advanced disease, could serve as prognostic indicators for lung cancer progression. Patients with a declining Th17/Th22 profile might have a poorer prognosis.
• Early Immunotherapeutic Targets: The significant presence of exhausted CD8 T cells and Tregs in early tumors suggests that immunosuppressive mechanisms are established early in lung cancer development. This implies that immunotherapies targeting T cell exhaustion (e.g., PD-1/PD-L1 blockade) or Treg function could be beneficial not only in advanced disease but also potentially in earlier stages to prevent immune escape. PubMed search: Checkpoint inhibitors lung cancer early stages
• Combination Therapies: Understanding the early immune landscape, characterized by both immune infiltration and signs of exhaustion/suppression, might guide the development of combination immunotherapies. For instance, therapies that boost effector T cell function could be combined with agents that reverse T cell exhaustion or deplete Tregs, potentially improving treatment outcomes.
• Patient Stratification: These T cell subset profiles could aid in stratifying patients based on their immune contexture, allowing for more personalized treatment approaches. Patients exhibiting certain immune profiles might respond better to specific immunotherapeutic interventions.

9. Macrophage Subset Population Dynamics in Lung Cancer Progression

[Analysis Visualization Results]...

Analysis Overview

This analysis presents a population bar plot illustrating the relative proportions of various macrophage subsets (Macrophage M1, M2A, M2B, M2C, and M2D) across individual samples, categorized by their condition: Normal lung tissue, Early-stage Tumor (Tumor(early)), and Advanced-stage Tumor (Tumor(adv)). The plot visually summarizes the shifts in macrophage polarization within the lung microenvironment during different stages of lung cancer.

Visual Summary

The stacked bar plots display the percentage composition of five macrophage subsets within the total macrophage population for each sample.

• Normal Samples (LUNG_Nxx): Macrophage (M1) and Macrophage (M2A) subsets collectively constitute the majority of macrophages, typically ranging from 60-80% of the total. Macrophage (M2C) is present, generally forming a smaller proportion, often below 20%. Macrophage (M2B) and Macrophage (M2D) are consistently minor populations.
• Early-stage Tumor Samples (LUNG_Txx): A notable shift is observed compared to normal tissue. While Macrophage (M1) and Macrophage (M2A) remain substantial, there is a clear increase in the proportion of Macrophage (M2C). In many early tumor samples, M2C constitutes a larger fraction, often exceeding 20% and sometimes reaching over 30%. The proportion of Macrophage (M2A) appears somewhat variable but generally reduced relative to M1 and M2C compared to normal.
• Advanced-stage Tumor Samples (BRONCHO_xx, EBUS_xx): This trend of increased Macrophage (M2C) becomes even more pronounced in advanced tumor samples, where it frequently accounts for over 30% of the macrophage population and, in some cases, approaches 40%. The proportion of Macrophage (M1) also shows an overall increase compared to normal, often becoming the single largest subset. Conversely, Macrophage (M2A) appears to be relatively reduced in advanced tumors compared to both normal and some early-stage tumors. Macrophage (M2B) and Macrophage (M2D) remain minor components across all tumor stages.

Biological Interpretation

Macrophages are critical components of the tumor microenvironment (TME) and exhibit remarkable plasticity, polarizing into distinct functional states often broadly categorized as M1 (classically activated) and M2 (alternatively activated).

• M1 macrophages are generally considered pro-inflammatory and anti-tumorigenic, producing cytokines like TNF-α and IL-12, promoting antigen presentation, and direct cytotoxicity against tumor cells 1. The observed increase in M1 macrophages in tumor conditions might suggest an active, albeit potentially overwhelmed, anti-tumor immune response, or a specific inflammatory context within the lung cancer TME.
• M2 macrophages are heterogeneous and typically associated with immunosuppression, tissue repair, angiogenesis, and promotion of tumor growth and metastasis. The M2 category itself is further refined into subtypes based on activation stimuli and functional characteristics:
• M2A (activated by IL-4/IL-13) are involved in parasitic infections and allergic responses, as well as early tissue repair.
• M2B (activated by immune complexes/LPS/IL-1β) exhibit mixed pro-inflammatory and regulatory functions.
• M2C (activated by IL-10/TGF-β/glucocorticoids) are highly immunosuppressive, promote fibrosis, tissue remodeling, and are strongly implicated in promoting tumor progression, angiogenesis, and metastasis by suppressing anti-tumor immunity 2.
• M2D (activated by adenosine) are known for promoting angiogenesis and tumor progression.

The most significant biological insight from these results is the progressive increase in the proportion of Macrophage (M2C) from normal lung tissue to early and advanced lung cancer stages. This shift towards an M2C-dominant macrophage phenotype within the tumor microenvironment strongly indicates an enhanced immunosuppressive and pro-tumorigenic environment. M2C macrophages contribute to cancer progression by secreting immunosuppressive cytokines (e.g., IL-10), promoting angiogenesis, and remodeling the extracellular matrix, thereby facilitating tumor growth and metastasis 2. The relative reduction of M2A in advanced tumors might suggest a preference for the M2C-mediated immunosuppressive phenotype over other M2 functions in the advanced disease context.

Clinical or Translational Implications

The observed expansion of M2C macrophages in lung cancer, particularly in advanced stages, carries significant clinical implications:

1. Biomarker Potential: The proportion of M2C macrophages could serve as a prognostic biomarker for lung cancer progression, with higher M2C levels potentially correlating with more advanced disease or poorer outcomes.
2. Therapeutic Target: Given their pro-tumorigenic and immunosuppressive roles, M2C macrophages represent an attractive therapeutic target in lung cancer. Strategies aimed at repolarizing M2C macrophages towards an M1-like phenotype, depleting M2C macrophages, or inhibiting their pro-tumorigenic functions could enhance anti-tumor immunity and improve therapeutic responses 3. This could be achieved through small molecules, antibodies, or cellular therapies.
3. Combination Therapies: Targeting M2C macrophages could be particularly beneficial in combination with existing immunotherapies, such as immune checkpoint inhibitors, to overcome the immunosuppressive TME and improve patient outcomes.

References

1. M1 Macrophages in Cancer: Cao D, Li Y, Li J, Su Y, Bai W, Song Y, Hou J. Diverse roles of M1 and M2 macrophages in tumor progression. *J Transl Med.* 2020 Dec 2;18(1):449. PubMed Link
2. M2c Macrophages in Tumor Microenvironment: Ma Y, Pope R, Smith DL, Betts BC, Rogers C, Blass S, Mui A, Tang K, Kruk P, Tan H. The diverse functions of M2 macrophages in tumor microenvironment. *Cancer Treat Rev.* 2017 Jul;58:10-22. PubMed Link
3. Targeting TAMs in Cancer Therapy: Sawa-Makarska J, Ratajewski M. Targeting Tumor-Associated Macrophages (TAMs) in Cancer Therapy. *Int J Mol Sci.* 2020 May 13;21(10):3430. PubMed Link

10. Macrophage Subset Population Analysis Across Lung Cancer Conditions

[Analysis Visualization Results]...

Analysis Overview

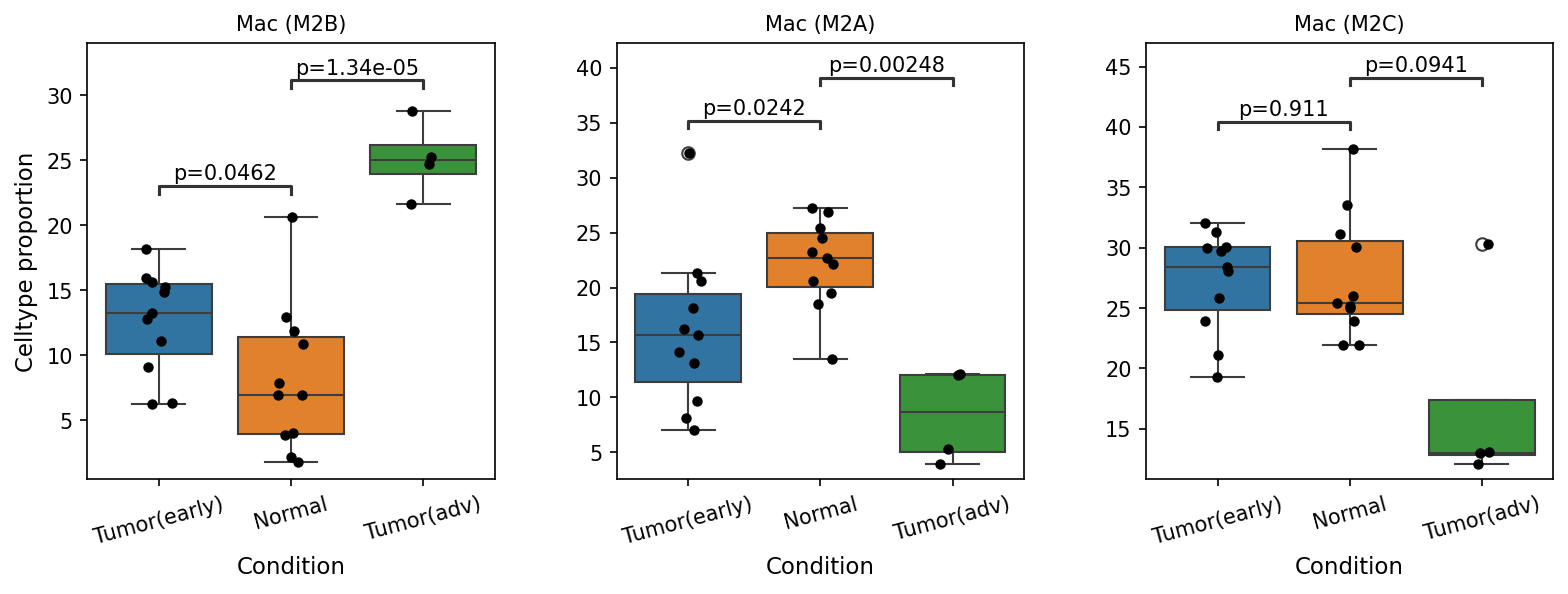

This analysis investigates the proportional changes of different macrophage subsets (Mac (M2A), Mac (M2B), Mac (M2C), Mac (M2D)) across three conditions: Tumor (early stage), Normal tissue, and Tumor (advanced stage) in lung tissue. Box plots are used to visualize the cell type proportions, and statistical significance tests highlight differences between conditions. The goal is to identify how the tumor microenvironment influences the composition of macrophage populations during lung cancer progression.

Visual Summary

The box plots illustrate the celltype proportion for four distinct macrophage subsets (M2A, M2B, M2C, M2D) across early tumor, normal, and advanced tumor conditions.

• Mac (M2A): This subset shows a significant decrease in proportion in tumor conditions compared to normal. Specifically, the proportion is significantly lower in Tumor(early) (p=0.0168) and Tumor(adv) (p=0.000327) compared to Normal. Furthermore, Tumor(adv) exhibits a significantly lower proportion of M2A macrophages than Tumor(early) (p=0.0111), indicating a progressive decline with tumor advancement.
• Mac (M2B): In contrast to M2A, the Mac (M2B) subset demonstrates a significant increase in tumor conditions. Its proportion is significantly higher in Tumor(early) compared to Normal (p=0.0176). The most pronounced increase is observed in Tumor(adv), which shows a significantly higher proportion than both Normal (p=0.00116) and Tumor(early) (p=0.00937). This suggests a progressive enrichment of M2B macrophages as lung cancer advances.
• Mac (M2D): This subset does not show statistically significant differences in proportion across the three conditions (p-values: 0.0753, 0.119, 0.77). While there's a slight numerical increase in tumor conditions, it does not meet the typical significance threshold.
• Mac (M2C): The proportion of Mac (M2C) is similar between Tumor(early) and Normal (p=0.912). However, there is a borderline significant decrease in Tumor(adv) compared to Normal (p=0.0824) and Tumor(early) (p=0.0872), suggesting a potential reduction in advanced tumor stages, though not reaching conventional statistical significance (p<0.05).

Biological Interpretation

Macrophages are critical components of the tumor microenvironment (TME) and play diverse roles in cancer progression. M2-like macrophages, often referred to as Tumor-Associated Macrophages (TAMs), are generally associated with pro-tumorigenic functions. This analysis reveals distinct and contrasting shifts in specific M2 macrophage subsets in lung cancer.

1. M2B Macrophage Enrichment in Tumor Progression: The most striking finding is the significant and progressive increase in Mac (M2B) populations from normal tissue to early-stage tumors, and further to advanced-stage tumors. This enrichment of M2B macrophages strongly suggests a pro-tumorigenic role for this subtype in lung cancer. M2B macrophages are known to produce both pro- and anti-inflammatory cytokines, but their specific role in cancer can include promoting tumor growth, angiogenesis, and immunosuppression, contributing to an environment conducive to tumor survival and metastasis. PubMed search: M2B macrophages cancer
2. M2A Macrophage Decline in Tumor Progression: Conversely, Mac (M2A) populations significantly decrease from normal to early tumor, and further decline in advanced tumors. M2A macrophages are typically associated with wound healing, tissue repair, and sometimes anti-tumor immune responses, although their function is context-dependent. The reduction of M2A macrophages in the lung cancer TME might indicate a loss of potentially beneficial immune functions or a polarization shift away from this subtype, possibly facilitating tumor escape from immune surveillance. PubMed search: M2A macrophages lung cancer
3. Complex Macrophage Polarization: The observed reciprocal changes in M2A and M2B macrophage proportions highlight the complex and dynamic nature of macrophage polarization within the TME. The dominance of specific pro-tumorigenic M2 subsets over others could influence various aspects of tumor biology, including immune evasion, stromal remodeling, and therapeutic resistance.

Clinical or Translational Implications

The distinct and statistically significant changes in macrophage subset proportions across lung cancer stages have several potential clinical implications:

• Biomarkers for Disease Progression: The ratio or absolute proportions of M2A and M2B macrophages could serve as prognostic biomarkers for lung cancer. An increased M2B proportion, especially relative to M2A, might indicate more aggressive disease or advanced staging.
• Therapeutic Targets: The significant increase in M2B macrophages in advanced lung cancer suggests that these cells could be promising therapeutic targets. Strategies aimed at depleting M2B macrophages, inhibiting their pro-tumorigenic functions, or reprogramming them towards an anti-tumor phenotype could potentially improve patient outcomes. This could involve modulating signaling pathways crucial for M2B differentiation or activation within the TME. PubMed search: macrophage polarization cancer therapy
• Personalized Medicine: Understanding the specific macrophage polarization profile in individual patients could inform personalized treatment strategies, guiding the selection of immunotherapies or combination therapies that specifically target or modulate these immune cells.

11. Ploidy Analysis of Lung Epithelial Tumor-Origin Cells Across Normal and Lung Cancer Stages

[Analysis Visualization Results]...

Analysis Overview

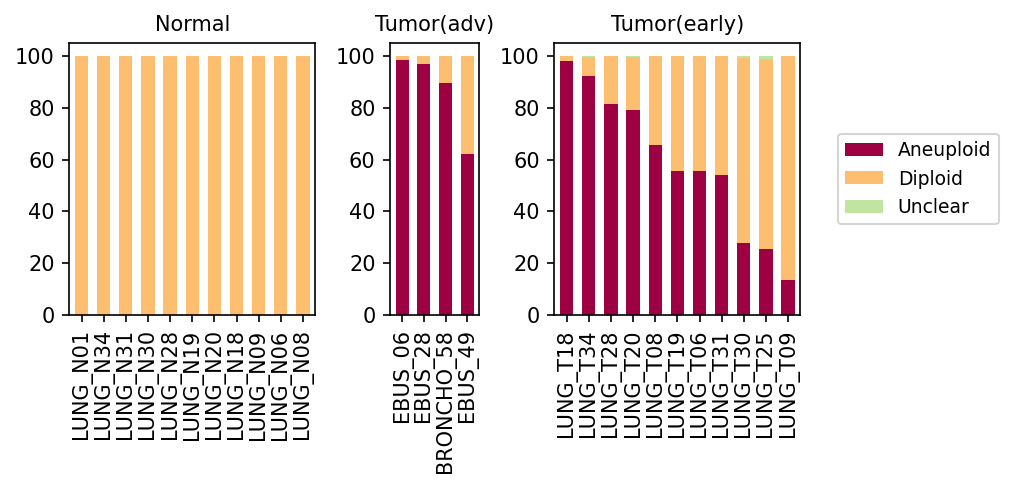

This analysis investigates the ploidy status (Diploid, Aneuploid, Unclear) of Lung Epithelial cells identified as tumor-origin, across normal lung tissue, early-stage lung tumors (Tumor(early)), and advanced lung tumors (Tumor(adv)). The results are visualized as stacked bar charts, showing the percentage of each ploidy population per sample, grouped by disease condition. This assessment is crucial for understanding the genomic stability landscape in tumor development and progression within the context of lung cancer.

Visual Summary

The stacked bar plots clearly illustrate distinct ploidy profiles across the different conditions and samples:

• Normal Condition: All Lung Epithelial cells from normal lung samples (e.g., LUNG_N01, LUNG_N34) are almost exclusively diploid (indicated by the predominant orange bars), with negligible to no aneuploid or unclear populations. This serves as a healthy baseline.
• Tumor(adv) Condition: Lung Epithelial cells from advanced tumor samples (EBUS_28, EBUS_06, BRONCHO_58, EBUS_49) exhibit a substantial to dominant aneuploid population (maroon bars). Specifically, samples like EBUS_28, EBUS_06, and BRONCHO_58 show very high proportions of aneuploid cells, exceeding 85%. While EBUS_49 has a lower proportion (~35%), it still represents a significant deviation from diploidy.
• Tumor(early) Condition: Early-stage tumor samples (e.g., LUNG_T18, LUNG_T34, LUNG_T28) show heterogeneous but generally elevated levels of aneuploidy compared to normal samples. Some early tumor samples, such as LUNG_T18 and LUNG_T34, are highly aneuploid (over 95%), resembling advanced tumors. Others, like LUNG_T31, LUNG_T30, and LUNG_T09, show more moderate aneuploid fractions (around 20-25%), though still markedly higher than normal tissue. The 'Unclear' ploidy population remains minimal across all conditions.

Biological Interpretation

These findings strongly align with the understanding of cancer as a disease driven by genomic instability.

• Aneuploidy as a Hallmark of Cancer: The stark contrast between the diploid state of normal Lung Epithelial cells and the widespread aneuploidy in tumor-origin Lung Epithelial cells, regardless of tumor stage, reaffirms aneuploidy as a critical hallmark of malignancy. Aneuploidy, the condition of having an abnormal number of chromosomes, results from chromosomal instability and is a potent driver of tumorigenesis and tumor evolution [1, 2].
• Early Onset of Genomic Instability: The presence of significant aneuploidy in "Tumor(early)" samples suggests that chromosomal instability is an early event in lung cancer development. This implies that the genetic alterations that lead to abnormal chromosome numbers are initiated relatively early in the transformation process of lung epithelial cells.
• Progression and Heterogeneity: While aneuploidy is high in both tumor conditions, the "Tumor(adv)" group generally displays a more consistently high aneuploid fraction, potentially reflecting further accumulation of genomic aberrations during disease progression. The variability observed within the "Tumor(early)" group highlights tumor heterogeneity, where some early lesions may already be highly aneuploid, while others are at an earlier stage of genomic disruption or contain a higher admixture of benign cells within the "Lung Epithelial cell tumor-origin" classification for that sample. This heterogeneity underscores the complex and often asynchronous nature of tumor evolution even within early stages.
• Tumor-Origin Specificity: By focusing specifically on "Lung Epithelial cell tumor-origin cells," the analysis directly demonstrates that the malignant cells themselves, rather than bystander stromal or immune cells, are characterized by widespread aneuploidy. This reinforces the identified cell type as the primary cellular component driving tumor pathology in lung cancer.

Clinical or Translational Implications

The insights from this ploidy analysis have several potential clinical and translational implications for lung cancer:

• Diagnostic and Prognostic Biomarker: Aneuploidy in Lung Epithelial cells could serve as a robust biomarker for differentiating malignant from benign lesions, particularly in indeterminate lung nodules. Furthermore, the degree of aneuploidy in early tumors might have prognostic value, indicating which tumors are more aggressive and prone to progression.
• Therapeutic Target Identification: The pervasive nature of aneuploidy in lung cancer cells, even in early stages, suggests that therapeutic strategies aimed at exploiting aneuploidy-induced vulnerabilities could be broadly applicable. For instance, cancer cells with aneuploidy often exhibit increased stress due to an imbalanced proteome, making them susceptible to specific targeted therapies that exacerbate this stress [1].
• Monitoring Tumor Evolution: Tracking the evolution of aneuploidy over time, especially in patients undergoing treatment, could provide insights into treatment response, resistance mechanisms, and tumor recurrence.
• Personalized Medicine: The observed inter-sample heterogeneity in aneuploidy, particularly in early-stage tumors, suggests that a personalized approach might be beneficial. Genetic profiling of individual tumors to assess their aneuploid status could guide treatment selection or clinical trial enrollment for therapies targeting genomic instability.

---

References:

1. Aneuploidy as a Cause and Consequence of Cancer. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC3384725/
2. Chromosomal Instability in Cancer: Causes, Consequences, and Therapeutic Opportunities. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC8941655/

12. Cell-Cell Interaction Analysis in Lung Cancer Progression

[Analysis Visualization Results]...

Analysis Overview

This analysis investigates significant cell-cell interaction (CCI) patterns within the lung tissue microenvironment, comparing Normal, early-stage tumor (Tumor(early)), and advanced-stage tumor (Tumor(adv)) conditions. The focus is on interactions involving Lung Epithelial cells (categorized as Diploid or Aneuploid to distinguish healthy from likely malignant epithelial cells), Macrophages, and T cells (CD4+ and CD8+). The plot_cci_dots tool was used to visualize the top 80 cell-cell interaction pairs per condition, based on p-value and mean expression, providing insights into potential changes in cellular communication during lung cancer progression.

Visual Summary

The provided dot plots illustrate distinct cell-cell interaction landscapes across the three conditions:

• CCI for Normal: This plot serves as a baseline, showing a diverse array of interactions, primarily involving Diploid Lung Epithelial cells, Macrophages, and various T cell subsets. Prominent interactions include those mediated by adhesion molecules such as CDH1-integrin, FN1-integrin, and ICAM1-integrin complexes, as well as SPP1-integrin and CD47-SIRPA. These interactions reflect a balanced, homeostatic tissue microenvironment. It's noteworthy that interactions involving Fibroblasts, while specified as a target cell type, were not among the top 80 displayed in the Normal condition.
• CCI for Tumor(early): In this stage, a clear shift in the interactome begins to emerge. Interactions involving Aneuploid Lung Epithelial cells (presumed tumor cells) become apparent. These Aneuploid cells engage in self-interactions and form new or strengthened connections with Macrophages and T cells. Many interactions observed in the Normal condition, such as SPP1-integrin and CD47-SIRPA, persist and often show increased activity, now predominantly involving Aneuploid Lung Epithelial cells. The overall complexity of interactions involving immune cells and epithelial cells appears to increase.
• CCI for Tumor(adv): This plot reveals a significantly remodeled and often more intense interactome. Interactions are predominantly driven by Aneuploid Lung Epithelial cells, which emerge as central hubs in the communication network. Interactions involving Diploid Lung Epithelial cells are markedly reduced or absent compared to Aneuploid cells. There is a noticeable increase in both the number and strength (higher log2(m)) of interactions between Aneuploid Lung Epithelial cells and immune cells (Macrophages, T CD4+, T CD8+). Critically, new or significantly enhanced interactions such as AREG-EGFR, CD86-CD28/CD28-CD86, and PVR-CD226 become prominent, alongside persistent and strong integrin and CD47-SIRPA pathways.
• Overall Trend: From Normal to advanced tumor stages, the cell-cell interaction landscape undergoes a profound transformation. This evolution is characterized by a decreasing role of diploid epithelial cells and an increasing dominance of aneuploid epithelial cells in orchestrating interactions, leading to a microenvironment that likely supports tumor growth, metastasis, and immune evasion.

Biological Interpretation

The observed shifts in cell-cell interactions provide crucial biological insights into lung cancer progression:

• Extracellular Matrix (ECM) Remodeling and Adhesion: Integrin-mediated interactions (e.g., FN1_integrin_aM_b2_complex, SPP1_integrin_aM_b2_complex, ICAM1_integrin_aM_b2_complex) are consistently active across all conditions, but their specific patterns change dramatically in tumor stages. In both early and advanced tumors, these interactions are heavily involved with Aneuploid Lung Epithelial cells and immune cells. SPP1 (Osteopontin), a key ligand for various integrins, is known to promote tumor cell adhesion, migration, invasion, and metastasis, as well as modulate immune cell functions, contributing to a pro-tumorigenic microenvironment GeneCards - SPP1.

Immune Evasion Mechanisms

• CD47-SIRPA Axis: This interaction is robustly present between Macrophages and Aneuploid Lung Epithelial cells in both tumor stages. CD47, often overexpressed on cancer cells, acts as a "don't eat me" signal by binding to SIRPα on phagocytic cells like macrophages, thereby allowing tumor cells to evade immune surveillance and destruction GeneCards - CD47.
• PVR-CD226: Interactions involving PVR (CD155) on Aneuploid Lung Epithelial cells and CD226 (DNAM-1) on T cells emerge in tumor conditions. While CD226 typically provides activating signals to T cells, PVR on tumor cells can also interact with inhibitory receptors such as TIGIT, contributing to T cell exhaustion and immunosuppression within the tumor microenvironment PubMed - PVR CD226 TIGIT cancer.

Tumor Cell Proliferation and Survival

• AREG-EGFR Signaling: The interaction between Amphiregulin (AREG) and its receptor EGFR becomes highly prominent and strong in advanced tumors, particularly between Aneuploid Lung Epithelial cells and T CD4+ cells. This axis is a well-established driver of cancer cell proliferation, survival, invasion, and resistance to therapy, especially in lung cancer GeneCards - AREG.
• T Cell Co-stimulation: The presence of CD28-CD86 and CD86-CD28 interactions between T cells and Aneuploid Lung Epithelial cells indicates active T cell engagement. The balance between co-stimulatory (e.g., CD28-CD86) and co-inhibitory signals (e.g., PD-1/PD-L1, CTLA-4, often not shown here but critical) dictates the ultimate anti-tumor immune response.

Clinical or Translational Implications

The identified cell-cell interaction patterns hold significant promise for therapeutic development and biomarker discovery in lung cancer:

• Targeting Immune Evasion Pathways: The consistent and strong CD47-SIRPA axis presents a compelling therapeutic target. Strategies to block CD47 (e.g., with anti-CD47 antibodies) or SIRPα could re-activate macrophage-mediated phagocytosis of tumor cells, representing a novel immunotherapeutic approach.
• Disrupting Tumor Growth and Survival Signals: The robust AREG-EGFR signaling in advanced disease suggests that existing EGFR inhibitors or novel therapies specifically targeting AREG could be highly effective, especially in patients whose tumors exhibit this active crosstalk. This also highlights the potential for personalized medicine based on the observed interactome.
• Modulating the Tumor Microenvironment (TME): Targeting key integrin-mediated interactions, such as those involving SPP1, could inhibit critical processes like tumor cell migration, invasion, and metastasis. This may complement therapies aimed at directly killing tumor cells by disrupting the supportive TME.
• Biomarker Identification: Specific interaction signatures, particularly those emerging in early tumor stages involving Aneuploid Lung Epithelial cells and immune subsets, could serve as valuable biomarkers for early detection, prognosis, or prediction of response to therapy.
• Understanding Treatment Resistance: The dynamic changes in the interactome from early to advanced stages could shed light on mechanisms of therapeutic resistance, pointing to compensatory pathways or novel vulnerabilities that emerge under treatment pressure.
• Experimental Validation: The high-confidence ligand-receptor pairs identified warrant further experimental validation. _In vitro_ co-culture models, _ex vivo_ tissue slice cultures, or _in vivo_ mouse models could be used to functionally characterize these interactions and assess their impact on tumor biology and immune responses. Techniques like spatial transcriptomics or multiplex immunofluorescence could confirm the cellular proximity and protein expression in patient samples.

13. Condition-Specific Cell-Cell Interaction Patterns in Lung Cancer Progression

[Analysis Visualization Results]...

Analysis Overview

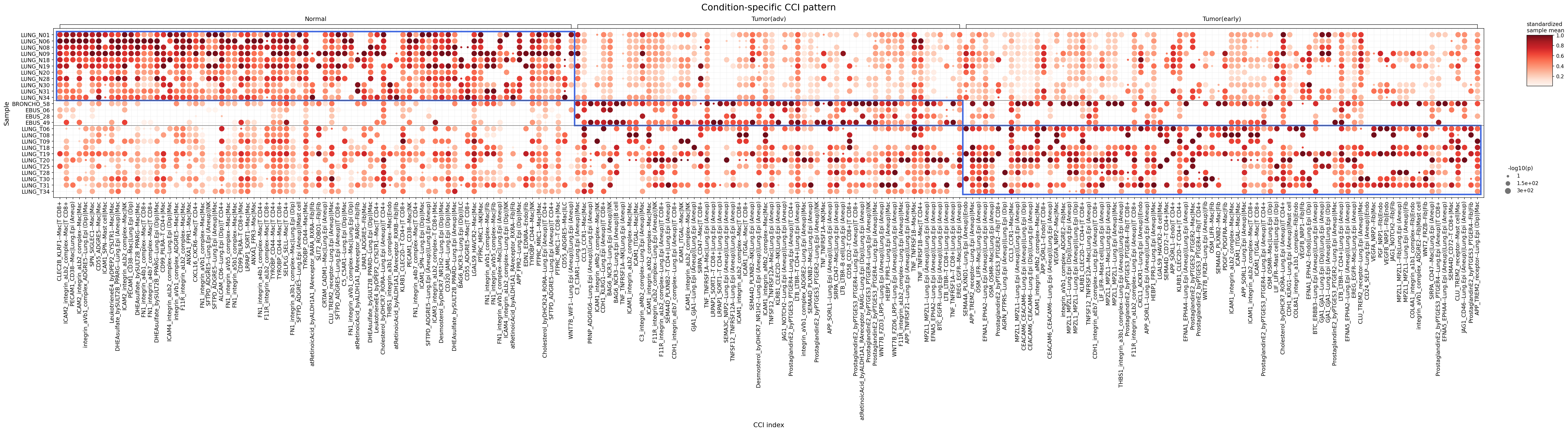

This analysis investigates condition-specific cell-cell interaction (CCI) patterns involving Lung Epithelial cells (the identified tumor origin) and major immune and stromal cells across Normal, early-stage tumor (Tumor(early)), and advanced-stage tumor (Tumor(adv)) conditions. The dot plot visualizes significant differences in the strength of ligand-receptor interactions, with dot size representing the statistical significance (-log10(p-value)) and color intensity indicating the scaled log interaction strength. The analysis specifically highlights interactions that are significantly *stronger* in each condition compared to the average of the other conditions, providing insights into the evolving tumor microenvironment in lung cancer.

Visual Summary

The dot plot reveals distinct patterns of cell-cell interactions across the three conditions:

• Normal Condition: This panel shows a high density of strong (dark red) and highly significant (large dots) interactions. Prominent interactions involve Macrophages (Mac) with other Macrophages, T cells (CD8+, CD4+), NK cells, and Fibroblasts (Fib), as well as Diploid Lung Epithelial cells (Lung.Epi (Dip)) interacting with various immune cells. These patterns suggest a rich, homeostatic immune surveillance and tissue maintenance network characteristic of healthy lung tissue. Key interactions include ANXA1-FPR1 (Mac|Mac) and ICAM2-integrin_aLb2_complex (Lung.Epi (Dip)|T CD8+).
• Tumor Conditions (Tumor(early) and Tumor(adv)): In contrast to the Normal state, the tumor conditions exhibit a shift towards a distinct set of interactions, many of which involve Aneuploid Lung Epithelial cells (Lung.Epi (Aneup)), identified as the tumor cells. These interactions are significantly elevated in tumor samples compared to normal samples.
• Emergence of Tumor-Specific Interactions: Both Tumor(early) and Tumor(adv) panels show the emergence of numerous interactions involving Lung.Epi (Aneup) cells, particularly with Macrophages, Endothelial cells (Endo), T cells, NK cells, and Fibroblasts. These interactions often appear as dark red, large dots, signifying strong and significant pro-tumorigenic signaling.
• Similarities and Differences between Tumor Stages: Many Lung.Epi (Aneup)-centric interactions are present in both early and advanced tumor stages, suggesting that key pro-tumorigenic signaling pathways are established early in cancer development. For instance, the CXCL12-CXCR4 interaction between Lung.Epi (Aneup) and Macrophages, and VEGFA-NRP1/VEGFA-FLT1 interactions involving Endothelial cells, are prominent across both tumor conditions. The overall density and strength of these tumor-specific interactions appear to be maintained or potentially increase from early to advanced stages for certain key pairs, indicating their sustained importance in tumor progression.

Biological Interpretation

The differential CCI patterns highlight critical biological processes in the lung tumor microenvironment (TME):

1. Loss of Homeostatic Immune Surveillance in Normal Tissue:

• Interactions such as ANXA1-FPR1 (Mac|Mac) and ICAM2-integrin_aLb2_complex (Lung.Epi (Dip)|T CD8+) are significantly stronger in Normal tissue. ANXA1-FPR1 signaling plays a role in resolving inflammation and regulating immune cell chemotaxis, while ICAM2-LFA-1 is crucial for T cell adhesion and migration, facilitating immune surveillance. Their decreased prominence in tumor conditions indicates a potential breakdown of these protective mechanisms.
• ANXA1 functions: GeneCards: ANXA1
• ICAM2 functions: GeneCards: ICAM2

2. Recruitment and Activation of Tumor-Associated Macrophages (TAMs):

• A prominent cluster of interactions involves Lung.Epi (Aneup) and Macrophages in both tumor conditions.
• The CXCL12-CXCR4 axis (Lung.Epi (Aneup) | Mac) is strongly activated. CXCL12 produced by tumor cells can recruit CXCR4-expressing macrophages, differentiating them into immunosuppressive TAMs that promote tumor growth, angiogenesis, and metastasis.
• ProstaglandinE2_byPTGES3-PTGER4 (Lung.Epi (Aneup) | Mac) indicates activation of PGE2 signaling. PGE2, often produced by tumor cells, binds to PTGER4 on macrophages, promoting their pro-tumorigenic M2 polarization and contributing to immunosuppression.
• OSM-OSMR (Lung.Epi (Aneup) | Mac) suggests that Oncostatin M (OSM) signaling contributes to tumor progression by influencing macrophage function and promoting inflammation and remodeling in the TME.

3. Angiogenesis and Extracellular Matrix (ECM) Remodeling:

• Interactions like VEGFA-NRP1 and VEGFA-FLT1 (Lung.Epi (Aneup) | Endo or Fib) are highly significant in tumor conditions. VEGFA is a critical growth factor for angiogenesis, and its interaction with NRP1 and FLT1 (VEGFR1) on endothelial cells drives new blood vessel formation essential for tumor supply and growth. The involvement of fibroblasts (Fib) suggests their role as cancer-associated fibroblasts (CAFs) in orchestrating angiogenesis.
• Various Integrin-ECM interactions (e.g., COL1A1-integrin_a2b1_complex (Lung.Epi (Aneup) | Endo)) highlight the active remodeling of the ECM in the TME, which supports tumor cell invasion, migration, and survival.

4. Immune Evasion Mechanisms:

• The KLRB1-CLEC2D interaction (Lung.Epi (Aneup) | NK) is observed in tumor conditions. CLEC2D (LLT1) expressed by tumor cells can engage with KLRB1 (CD161) on NK cells, leading to inhibition of NK cell cytotoxicity and thus contributing to immune evasion.
• Interactions between Lung.Epi (Aneup) and T cells (e.g., PPIA-BSG, CD99-PILRA, SELPGLG-SELL) suggest mechanisms that might influence T cell recruitment, adhesion, or function within the immunosuppressive TME.

5. Autocrine/Paracrine Tumor Cell Signaling:

• WNT7B-FZD5_LRP5 (Lung.Epi (Aneup) | Lung.Epi (Aneup)) is significantly upregulated in tumor samples. This indicates an autocrine Wnt signaling loop within the tumor cells, which is frequently hyperactivated in cancer and drives cell proliferation, stemness, and epithelial-mesenchymal transition (EMT), promoting tumor progression.
• OSM-OSMR (Lung.Epi (Aneup) | Lung.Epi (Aneup)) also indicates autocrine/paracrine signaling among tumor cells themselves, contributing to their survival and proliferation.

Clinical or Translational Implications

The identified condition-specific cell-cell interactions offer promising avenues for therapeutic intervention in lung cancer:

1. CXCL12-CXCR4 Axis:

• Signaling/Mechanism: This axis drives tumor cell survival, proliferation, metastasis, and recruitment of immunosuppressive cells like TAMs. It is a critical mediator of tumor-stroma communication.
• Therapeutic Potential: Disrupting this axis can inhibit tumor progression, reduce metastasis, and potentially enhance anti-tumor immune responses.
• Therapeutic Agents: CXCR4 antagonists such as Plerixafor (AMD3100) are FDA-approved for hematopoietic stem cell mobilization and are under investigation in various solid tumors, including lung cancer, to block tumor-promoting signaling and TME remodeling.
• Related clinical trials/research: PubMed search: CXCL12 CXCR4 cancer therapy lung

2. VEGFA-NRP1/FLT1 Axis:

• Signaling/Mechanism: VEGFA signaling is the primary driver of pathological angiogenesis in tumors, essential for their growth, survival, and metastasis by supplying nutrients and oxygen. NRP1 acts as a co-receptor for VEGFA, modulating its activity.
• Therapeutic Potential: Inhibiting VEGFA signaling starves tumors by preventing new blood vessel formation and normalizing existing ones, thereby reducing tumor growth and improving drug delivery.
• Therapeutic Agents: Anti-VEGF monoclonal antibodies (e.g., Bevacizumab) are standard-of-care in various cancers, including non-small cell lung cancer (NSCLC). Inhibitors targeting NRP1 are also being developed to block VEGF-mediated angiogenesis and tumor progression.
• Anti-angiogenic therapies: PubMed search: VEGFA angiogenesis cancer therapy

3. ProstaglandinE2-PTGER4 Pathway:

• Signaling/Mechanism: PGE2 produced by tumor and stromal cells promotes immunosuppression, chronic inflammation, and the pro-tumorigenic M2 polarization of macrophages, thus fostering tumor growth and metastasis.
• Therapeutic Potential: Targeting this pathway can reduce immunosuppression in the TME, re-educate TAMs towards an anti-tumor phenotype, and diminish pro-inflammatory signals that drive tumor progression.
• Therapeutic Agents: Non-steroidal anti-inflammatory drugs (NSAIDs) like COX-2 inhibitors (e.g., Celecoxib) reduce PGE2 synthesis and are being investigated in cancer prevention and therapy, often in combination with other agents. Specific PTGER4 antagonists are also under preclinical development.
• Role in tumor microenvironment: PubMed search: PGE2 PTGER4 tumor microenvironment therapy

4. WNT7B-FZD5_LRP5 Axis:

• Signaling/Mechanism: Autocrine Wnt signaling within tumor cells promotes their unchecked proliferation, self-renewal (stemness), and contributes to EMT, driving invasion and metastasis.
• Therapeutic Potential: Inhibiting hyperactive Wnt signaling can suppress tumor growth, reduce tumor stem cell populations, and reverse EMT, thereby sensitizing tumors to other therapies.
• Therapeutic Agents: Wnt pathway inhibitors, including Frizzled receptor antagonists and tankyrase inhibitors, are currently in various stages of preclinical and clinical development for a range of cancers, including lung cancer.
• Wnt signaling in cancer: PubMed search: WNT signaling inhibitors cancer lung

5. KLRB1-CLEC2D Interaction:

• Signaling/Mechanism: This interaction between tumor cells and NK cells provides an inhibitory signal to NK cells, suppressing their innate anti-tumor immune response.
• Therapeutic Potential: Blocking this inhibitory axis could unleash or enhance NK cell-mediated cytotoxicity against lung cancer cells, representing a novel immunotherapeutic strategy.
• Therapeutic Agents: Strategies to disrupt or block the CLEC2D-KLRB1 interaction, possibly via antibodies or small molecules, could be explored to boost NK cell anti-tumor activity.
• NK cell checkpoint modulation: PubMed search: KLRB1 CLEC2D NK cell cancer immunotherapy

14. Condition-Specific Cell-Cell Interaction Patterns Involving Immune Checkpoint and Cell Cycle Pathways in Lung Cancer

[Analysis Visualization Results]...

Analysis Overview

This analysis identifies and visualizes cell-cell interactions (CCIs) involving immune checkpoint and cell cycle pathway genes across different conditions (Normal, Tumor(early), Tumor(adv)) and individual patient samples. The focus is on interactions between tumor-origin Lung Epithelial cells (distinguishing between diploid and aneuploid states) and major immune and stromal cell types, to understand how these communications change in the context of lung cancer. The visualization uses a dot plot where dot color intensity indicates the scaled interaction strength (log expression levels of ligand-receptor), and dot size represents the significance of the interaction (-log10(p-value)).

Visual Summary

The dot plot effectively illustrates the complex and dynamic nature of cell-cell interactions in the lung tumor microenvironment (TME) compared to normal tissue. Samples are grouped by condition (Normal, Tumor(adv), Tumor(early)) on the y-axis, and specific CCI indices (ligand-receptor pair, sender-receiver cell types, and ploidy status for Lung Epithelial cells) are displayed on the x-axis.

Normal Condition

In normal lung tissue samples, a baseline of robust cell-cell interactions is observed, predominantly involving diploid Lung Epithelial cells (Lung.Epi (Dip)) interacting with Macrophages (Mac) and Fibroblasts (Fib). Prominent interactions include those mediated by the EGFR family (e.g., HBEGF_EGFR, AREG_EGFR) and TGF-beta family (e.g., TGFB1_TGFbeta_receptor, TGFB1_TGFBR3). Integrin-mediated interactions (e.g., TGFB1_integrin_aVb6_complex) are also notable. These interactions reflect physiological tissue homeostasis, immune surveillance, and stromal support in healthy lung.

Tumor Conditions (Early and Advanced)

Both early and advanced tumor conditions show a dramatic shift and intensification of CCI patterns, characterized by a significant increase in the number and strength of interactions, particularly those involving aneuploid Lung Epithelial cells (Lung.Epi (Aneup)), which are inferred to be the malignant tumor cells.

• Emergence of Aneuploid Cell Interactions: In tumor samples, aneuploid Lung Epithelial cells become central players, forming strong and significant interactions with various immune and stromal cells. Many interactions that were observed with Lung.Epi (Dip) in normal tissue are now observed with Lung.Epi (Aneup) in tumor samples, often with increased strength and prevalence.
• Prominent Oncogenic Signaling: EGFR-ligand/receptor interactions (e.g., AREG_EGFR, HBEGF_EGFR, EREG_EGFR, TGFA_EGFR) are consistently and highly prominent across almost all tumor samples, frequently involving Lung.Epi (Aneup) interacting with Macrophage, Fibroblast, and Endothelial cell. Similarly, TGF-beta signaling interactions (e.g., TGFB1_TGFbeta_receptor, TGFB3_TGFBR3) are highly active in tumor conditions.
• Immune Cell Involvement: Interactions involving immune cells such as T CD8+ are particularly noticeable in tumor conditions. For instance, the CD93_IFNGR1 and IFNG_Type_II_IFNR interactions are frequently observed between Lung.Epi (Aneup) and T CD8+ cells in both early and advanced tumors, suggesting altered immune recognition or modulation. The CD86_CD28 interaction, involving B cell and Lung.Epi (Aneup), also appears.
• Stromal and Angiogenic Activation: Interactions involving Fibroblast and Endothelial cell (Endo) are markedly increased and strengthened in tumor conditions. For example, AREG_EGFR -- Endo | Lung.Epi (Aneup) and CD93_IFNGR1 -- Endo | Lung.Epi (Aneup) are widespread in advanced tumor samples, indicating active angiogenesis and stromal remodeling.

Differential Patterns Across Conditions

While the core patterns of EGFR and TGF-beta signaling are present across all conditions, their cellular context shifts dramatically in tumor samples, moving from diploid epithelial cells to aneuploid ones. The overall density and intensity of significant interactions appear to increase from Normal to Tumor(early) to Tumor(adv) conditions, reflecting a progressively active and dysregulated TME. Specific interactions, such as those involving Endothelial cells, become particularly dominant in advanced disease, suggesting an escalation of pro-tumorigenic processes like angiogenesis.

Biological Interpretation

The observed shifts in cell-cell interactions highlight key biological processes driving lung cancer progression, involving both cell cycle dysregulation (via growth factor signaling) and immune evasion (via immune checkpoint-related pathways and TME remodeling). The distinction between diploid and aneuploid lung epithelial cells is crucial, with aneuploid cells orchestrating many of the pro-tumorigenic interactions.

Aberrant EGFR Signaling in the Tumor Microenvironment

The consistent and strong presence of EGFR-ligand (HBEGF, AREG, EREG, TGFA) interactions with EGFR on Lung Epithelial cell (Aneup), and with Macrophage, Fibroblast, and Endothelial cell in tumor conditions, underscores the critical role of EGFR signaling.

• Mechanism: Ligand binding to EGFR activates downstream pathways (RAS-MAPK, PI3K-AKT-mTOR, JAK-STAT), which are central to regulating cell proliferation, survival, migration, and angiogenesis. In cancer, this hyperactive signaling promotes uncontrolled tumor growth and survival, fulfilling the cell cycle pathway component of the analysis.
• TME Contribution: Macrophages, fibroblasts, and endothelial cells can produce EGFR ligands, establishing a paracrine loop that fuels tumor cell proliferation and survival, while also promoting stromal remodeling and angiogenesis critical for tumor progression.

Dysregulated TGF-beta Pathway and Immune Evasion

TGF-beta family interactions (TGFB1, TGFB3 with their receptors) are also highly active across all conditions, but their context changes dramatically in tumors.

• Mechanism: TGF-beta is a pleiotropic cytokine with context-dependent roles in cancer. While it can act as a tumor suppressor in early stages, in the context of established tumors, it primarily promotes tumor progression by inducing epithelial-mesenchymal transition (EMT), stimulating angiogenesis, and suppressing anti-tumor immune responses. This immunosuppressive role involves inhibiting T cell proliferation and function, promoting Treg development, and facilitating immune evasion, thereby connecting to the immune checkpoint component of the analysis.
• TME Remodeling: Interactions with Macrophage and Fibroblast (cancer-associated fibroblasts) indicate TGF-beta's role in promoting fibrosis and creating an immunosuppressive and pro-metastatic TME.

Immune Modulation via IFNGR1 and Co-stimulatory Molecules

The involvement of IFNGR1 in interactions like CD93_IFNGR1 and IFNG_Type_II_IFNR with T CD8+ cells and Lung.Epi (Aneup) is significant.

• IFN-gamma Signaling: Interferon-gamma (IFN-gamma) is a key cytokine produced by activated T cells and NK cells, essential for anti-tumor immunity. Its binding to the IFN-gamma receptor (IFNGR1/2) activates the JAK-STAT pathway, leading to expression of genes involved in antigen presentation and immune responses. Altered interactions involving IFNGR1 could signify mechanisms of immune escape or attempts by the immune system to control tumor growth.
• CD93_IFNGR1 Interaction: The interaction CD93_IFNGR1 -- Lung.Epi (Aneup) | T CD8+ is particularly intriguing. While CD93 is primarily known for its role in angiogenesis and inflammation on endothelial and myeloid cells, its interaction with IFNGR1 on T cells, potentially from tumor cells, could represent a novel mechanism by which tumor cells modulate T cell responses or immune surveillance. This might involve direct signaling or indirect modulation of the IFN-gamma pathway, thus relating to immune checkpoint regulation. https://www.genecards.org/cgi-bin/carddisp.pl?gene=CD93, https://www.genecards.org/cgi-bin/carddisp.pl?gene=IFNGR1
• CD86_CD28 Interaction: The CD86_CD28 -- B cell | Lung.Epi (Aneup) interaction suggests potential modulation of T cell co-stimulation. CD86 on antigen-presenting cells (like B cells) binds to CD28 on T cells, providing a crucial co-stimulatory signal for T cell activation. If tumor cells (or B cells in their vicinity) are involved in this interaction, it could impact the immune response by promoting or hindering effective T cell activation.

Stromal and Endothelial Cell Contributions

The increased activity of interactions involving Fibroblast and Endothelial cell in tumor conditions highlights their essential roles in creating a pro-tumorigenic microenvironment. Fibroblasts (cancer-associated fibroblasts) secrete growth factors, extracellular matrix components, and cytokines that support tumor growth and invasion. Endothelial cells are critical for angiogenesis, the formation of new blood vessels that supply oxygen and nutrients to the rapidly growing tumor, especially evident in advanced stages.

Clinical or Translational Implications

The identified cell-cell interactions represent potential therapeutic vulnerabilities in lung cancer, spanning mechanisms of cell proliferation and immune modulation.

EGFR Signaling as a Therapeutic Target

• Associated Signaling Pathways and Mechanisms: EGFR signaling, activated by ligands such as HBEGF, AREG, EREG, and TGFA, plays a critical role in cellular proliferation, survival, migration, and angiogenesis. In cancer, hyperactive EGFR signaling often drives uncontrolled cell division by activating downstream pathways like RAS-MAPK, PI3K-AKT-mTOR, and JAK-STAT pathways, leading to cell cycle progression and reduced apoptosis. The observed strong interactions between various EGFR ligands and Lung Epithelial cell (Aneup) (tumor cells) with Macrophage, Fibroblast, and Endothelial cell indicate robust autocrine and paracrine stimulation of tumor growth and TME remodeling in early and advanced lung cancer.
• Potential as a Therapeutic Target: Given its central role in driving tumor growth and progression, EGFR is a well-validated therapeutic target in non-small cell lung cancer (NSCLC). Inhibiting EGFR signaling can block tumor cell proliferation, induce apoptosis, and sensitize tumor cells to other treatments. The prevalence and strength of these interactions, especially with aneuploid epithelial cells, highlight EGFR as a primary actionable target.

Relevant Therapeutic Agents

• EGFR Tyrosine Kinase Inhibitors (TKIs): First, second, and third-generation TKIs (e.g., Gefitinib, Erlotinib, Afatinib, Osimertinib) are widely used for NSCLC patients with EGFR activating mutations. https://www.genecards.org/cgi-bin/carddisp.pl?gene=EGFR
• Monoclonal Antibodies: Cetuximab and Necitumumab are examples of antibodies that block EGFR ligand binding, used in other cancers or specific NSCLC contexts. https://pubmed.ncbi.nlm.nih.gov/33924151/ (Search: "EGFR inhibitors NSCLC")

Targeting the TGF-beta Pathway

• Associated Signaling Pathways and Mechanisms: The TGF-beta pathway is a multifaceted signaling system that, in advanced lung cancer, promotes tumor progression through various mechanisms, including epithelial-mesenchymal transition (EMT), angiogenesis, and notably, profound immunosuppression within the TME. TGF-beta directly inhibits the proliferation and effector functions of T cells and NK cells while promoting the differentiation of regulatory T cells (Tregs), thereby enabling immune evasion.
• Potential as a Therapeutic Target: Inhibiting TGF-beta signaling holds promise to reverse its pro-tumorigenic and immunosuppressive effects. This could lead to reduced tumor growth, metastasis, and, critically, the restoration of anti-tumor immune responses, making it a valuable target in combination with immunotherapies.

Relevant Therapeutic Agents

• TGF-beta Receptor Kinase Inhibitors: Small molecule inhibitors like Galunisertib (LY2157299) block the TGF-beta receptor I kinase, hindering downstream signaling.
• Anti-TGF-beta Ligand Antibodies: Antibodies like Fresolimumab target the TGF-beta ligand itself, preventing its binding to receptors.
• Bifunctional Antibodies: Bintrafusp alfa (anti-PD-L1/TGF-beta Trap) represents a novel approach, simultaneously blocking PD-L1 and trapping TGF-beta, aiming for synergistic anti-tumor effects. These agents are mostly in clinical trials for various cancers, including lung cancer. https://pubmed.ncbi.nlm.nih.gov/32959635/ (Search: "TGF-beta inhibitors cancer immunotherapy")

Modulating Immune Checkpoint-Related Interactions

• Associated Signaling Pathways and Mechanisms: Interactions involving IFNGR1 (such as CD93_IFNGR1 and IFNG_Type_II_IFNR) and co-stimulatory molecules like CD86_CD28 directly impact the immune response in the TME. These pathways determine the activation, anergy, or suppression of anti-tumor immune cells, particularly T cells. Alterations in these interactions within tumor conditions suggest active mechanisms of immune modulation by tumor or stromal cells.
• Potential as a Therapeutic Target: If the CD93_IFNGR1 interaction contributes to immune suppression or evasion, modulating CD93 on tumor cells or its interaction with IFNGR1 on T cells could restore T cell effector functions. Similarly, manipulating the CD86_CD28 axis can fine-tune T cell activation. While not classical immune checkpoints like PD-1/PD-L1, these interactions fall within the broader category of immune regulation and represent potential novel targets.

Relevant Therapeutic Agents

• IFN-gamma Augmentation: Strategies to enhance local IFN-gamma levels or sensitize immune cells to its effects are being explored, though direct IFN-gamma administration has faced challenges.
• CD93 Targeting: While not yet clinically established for this specific context, preclinical studies have explored anti-CD93 antibodies for their anti-angiogenic and anti-inflammatory properties, which could be relevant if CD93 contributes to immune evasion.
• CD28/B7 Pathway Modulators: Abatacept (CTLA-4-Ig), which blocks CD28 binding to CD80/CD86, is used in autoimmune diseases, demonstrating the principle of modulating this pathway. In cancer, approaches could involve agonistic antibodies to CD28 or blocking agents to inhibitory co-stimulatory molecules. https://www.genecards.org/cgi-bin/carddisp.pl?gene=CD28

15. Lung Epithelial Cell Surfaceome Markers Across Normal and Tumor Conditions

[Analysis Visualization Results]...

Analysis Overview

This analysis investigates the expression of surfaceome markers in Lung Epithelial cells from single-cell RNA-seq data, comparing Normal, Tumor(early), and Tumor(adv) conditions. The aim is to identify condition-specific markers, distinguishing between established therapeutic targets and less well-characterized markers with potential for therapeutic intervention in lung cancer. The dot plot visualizes the mean expression level (color intensity) and the fraction of cells expressing each marker (dot size) for each sample group within the Lung Epithelial cell population. The markers shown are selected based on their differential expression using specific nz_pct_score and nz_pct_FC cutoffs when compared against the Normal reference condition.

Visual Summary

The dot plot effectively illustrates distinct patterns of surfaceome marker expression differentiating normal Lung Epithelial cells from their tumor counterparts.

• Normal-specific Markers: A prominent cluster of genes on the left side of the plot (e.g., *FOLR1*, *EMP2*, *PIGR*, *HLA-DPA1*, *CLDN18*, *LDLR*, *LAMP3*, *AQP4*, *SUSD2*, *CADM1*, *VSIG2*, *DUOX1*, *ALPL*, *MFSD2A*) shows high expression and prevalence within the Normal samples. These markers are markedly downregulated or absent in Tumor(adv) and Tumor(early) samples, indicating their association with healthy lung epithelial function.
• Tumor-Associated Markers: The majority of markers identified are highly expressed and prevalent in both Tumor(adv) and Tumor(early) conditions, showing minimal to no expression in Normal samples. These include genes such as *CEACAM6*, *BST2*, *LY6D*, *CDH1*, *PRSS8*, *EMP1*, *ADAM15*, *TSPAN1*, *SERINC2*, *DSG2*, *IFNGR2*, *MYOF*, *ITGA3*, *MUC4*, *TNFRSF1A*, *ABCC3*, *ADAM9*, *LTBR*, *IL20RB*, *CDCP1*, *EGFR*, *MET*, *ERBB2*, *PLAUR*, *EPHA2*, and *OSMR*.
• Progression-Associated Markers: While many tumor-associated markers are shared between Tumor(early) and Tumor(adv), some markers, notably *EGFR*, *MET*, *ERBB2*, *PLAUR*, *EPHA2*, and *OSMR*, appear to exhibit generally higher mean expression and/or prevalence in Tumor(adv) samples compared to Tumor(early), suggesting their potential role in disease progression or increased activity in advanced disease.
• Heterogeneity within Tumor Samples: The plot also reveals heterogeneity among individual patient samples within the tumor conditions. For instance, some Diploid LUNG_Txx samples (potentially representing non-malignant or early transforming cells within tumor tissue) show less pronounced expression of tumor-associated markers compared to other tumor samples.

Biological Interpretation

The identified surfaceome markers provide critical insights into the distinct biological states of normal and malignant lung epithelial cells, highlighting key pathways altered in lung cancer and potential therapeutic vulnerabilities.

Markers Specific to Normal Lung Epithelial Cells

Genes such as *FOLR1* (Folate Receptor Alpha), *PIGR* (Polymeric Immunoglobulin Receptor), *CLDN18* (Claudin 18), *AQP4* (Aquaporin 4), and *SUSD2* (Sushi Domain Containing 2) are highly expressed in normal lung epithelial cells and downregulated in tumor cells.

• FOLR1: Involved in folate uptake, essential for cell growth. Its downregulation in tumor epithelial cells might reflect altered metabolic needs or cellular dedifferentiation.
• PIGR: Facilitates transepithelial transport of immunoglobulins, a key part of mucosal immunity. Its loss could compromise immune surveillance in the lung.
• CLDN18: A tight junction protein, critical for epithelial barrier integrity. Loss of CLDN18 expression is frequently observed in lung cancers and is associated with increased invasiveness PubMed search: CLDN18 lung cancer.
• AQP4: An aquaporin water channel, important for water homeostasis in the lung.

The observed decrease in these markers in tumor cells suggests a loss of normal epithelial cell function and integrity, a hallmark of malignant transformation.

Tumor-Associated Lung Epithelial Cell Markers

A significant number of surfaceome markers are upregulated in both early and advanced tumor conditions, representing potential targets for therapy or diagnostics. These can be broadly categorized into established therapeutic targets and candidate targets.

Established Therapeutic Targets

These markers are well-known drivers of lung cancer, with approved targeted therapies or therapies in advanced clinical development.

EGFR (Epidermal Growth Factor Receptor)

• Signaling Pathways/Mechanisms: A receptor tyrosine kinase that activates downstream pathways like MAPK/ERK, PI3K/AKT, and STAT pathways, promoting cell proliferation, survival, angiogenesis, and metastasis.
• Relevant Therapeutic Agents: EGFR is a cornerstone target in non-small cell lung cancer (NSCLC). EGFR tyrosine kinase inhibitors (TKIs) such as gefitinib, erlotinib, afatinib, osimertinib are widely used, particularly for patients with activating EGFR mutations GeneCards: EGFR.
• Supporting Evidence: EGFR mutations are found in approximately 15% of NSCLC patients globally and are highly predictive of response to EGFR TKIs PubMed search: EGFR mutation lung cancer therapy.

ERBB2 (HER2 - Human Epidermal Growth Factor Receptor 2)

• Signaling Pathways/Mechanisms: Another receptor tyrosine kinase in the EGFR family, often forming heterodimers with other ERBB receptors. It activates similar downstream pathways (MAPK, PI3K/AKT) involved in cell growth and survival.
• Relevant Therapeutic Agents: HER2-targeted therapies, including antibody-drug conjugates (e.g., trastuzumab deruxtecan) and HER2 TKIs (e.g., afatinib, neratinib), are approved or in trials for HER2-mutant or amplified NSCLC GeneCards: ERBB2.
• Supporting Evidence: HER2 mutations or amplifications occur in 2-4% of NSCLCs and represent a distinct molecular subtype with specific therapeutic approaches PubMed search: HER2 lung cancer therapy.

MET (MET Proto-Oncogene, Receptor Tyrosine Kinase)

• Signaling Pathways/Mechanisms: The receptor for Hepatocyte Growth Factor (HGF), MET activation leads to cell proliferation, survival, migration, and invasive growth (scatter factor). Downstream signaling includes PI3K/AKT, MAPK/ERK, and STAT3.
• Relevant Therapeutic Agents: MET inhibitors like crizotinib, capmatinib, and tepotinib are approved for NSCLC patients with *MET* exon 14 skipping mutations or *MET* amplification GeneCards: MET.
• Supporting Evidence: *MET* alterations are found in a small subset of NSCLC (3-4% with exon 14 skipping, 1-5% with amplification), particularly in adenocarcinomas, and define a distinct therapeutic subset PubMed search: MET exon 14 skipping NSCLC therapy.

Candidate Therapeutic Targets

These markers are significantly upregulated in tumor cells and have been implicated in cancer progression, making them promising candidates for novel therapeutic strategies.

CEACAM6 (Carcinoembryonic Antigen Related Cell Adhesion Molecule 6)

• Signaling Pathways/Mechanisms: A cell adhesion molecule involved in cell-cell interactions, anti-apoptosis, and proliferation. It can activate PI3K/AKT and MAPK pathways.
• Potential Therapeutic Approaches: Given its cell surface location and overexpression in many cancers, including lung, CEACAM6 is explored as a target for antibody-drug conjugates (ADCs) or immunotherapies GeneCards: CEACAM6.
• Supporting Evidence: High CEACAM6 expression is associated with poor prognosis and chemotherapy resistance in NSCLC PubMed search: CEACAM6 lung cancer prognosis.

BST2 (Bone Marrow Stromal Antigen 2 / CD317 / Tetherin)

• Signaling Pathways/Mechanisms: Known for its antiviral role, BST2 also promotes tumor progression, angiogenesis, and immune evasion in various cancers. It can interact with components of the tumor microenvironment.
• Potential Therapeutic Approaches: BST2's role in immune evasion suggests it could be a target to enhance anti-tumor immunity, perhaps through antibody-mediated strategies or small molecule inhibitors GeneCards: BST2.
• Supporting Evidence: Elevated BST2 expression has been observed in NSCLC and correlated with advanced disease and poor prognosis PubMed search: BST2 lung cancer progression.

ITGA3 (Integrin Alpha 3)

• Signaling Pathways/Mechanisms: Forms a heterodimer with ITGB1 (Integrin Beta 1) to interact with extracellular matrix components (e.g., laminin). Integrins mediate cell adhesion, migration, proliferation, and survival, activating FAK/Src and MAPK pathways.
• Potential Therapeutic Approaches: Targeting ITGA3-mediated adhesion and signaling could inhibit tumor cell migration, invasion, and metastasis. This may involve blocking antibodies or small molecule inhibitors GeneCards: ITGA3.
• Supporting Evidence: ITGA3 is frequently overexpressed in lung cancer and contributes to tumor invasiveness and metastasis PubMed search: ITGA3 lung cancer invasion.

MUC4 (Mucin 4)

• Signaling Pathways/Mechanisms: A large transmembrane mucin glycoprotein that interacts with and stabilizes ERBB2, enhancing its signaling. It also provides a physical barrier and modulates immune cell interactions.
• Potential Therapeutic Approaches: MUC4 could be targeted by antibodies that interfere with its protective function or its interaction with ERBB2, or by ADCs GeneCards: MUC4.
• Supporting Evidence: MUC4 overexpression is linked to poor prognosis, resistance to chemotherapy, and enhanced metastasis in lung adenocarcinoma PubMed search: MUC4 lung cancer resistance.

CDCP1 (CUB Domain Containing Protein 1)

• Signaling Pathways/Mechanisms: A transmembrane glycoprotein that is cleaved and phosphorylated by Src kinases, promoting cell proliferation, migration, and invasion, and enhancing EGFR/HER2 signaling.
• Potential Therapeutic Approaches: Inhibitors targeting CDCP1 cleavage, phosphorylation, or its downstream signaling could impede tumor growth and metastasis GeneCards: CDCP1.
• Supporting Evidence: CDCP1 is overexpressed in various cancers, including NSCLC, correlating with advanced disease and metastatic potential PubMed search: CDCP1 NSCLC metastasis.

PLAUR (Plasminogen Activator, Urokinase Receptor / uPAR)

• Signaling Pathways/Mechanisms: Binds urokinase-type plasminogen activator (uPA), initiating a cascade that leads to plasmin generation, extracellular matrix degradation, cell migration, and invasion. It also signals via integrins.
• Potential Therapeutic Approaches: Strategies targeting PLAUR could involve inhibitors of uPA/uPAR interaction or antibodies that block uPAR function, thereby reducing tumor invasion and metastasis GeneCards: PLAUR.
• Supporting Evidence: High PLAUR expression is a prognostic marker for aggressive behavior and metastasis in NSCLC PubMed search: PLAUR lung cancer prognosis.

EPHA2 (EPH Receptor A2)

• Signaling Pathways/Mechanisms: A receptor tyrosine kinase that interacts with ephrin ligands (e.g., EFNA1, EFNA5) to regulate cell adhesion, migration, and invasion. Dysregulation promotes tumor progression.
• Potential Therapeutic Approaches: EPHA2-targeting therapies, including small molecule inhibitors, antibodies, and ADCs, are being developed to block its pro-tumorigenic functions GeneCards: EPHA2.
• Supporting Evidence: EPHA2 is overexpressed in NSCLC and correlates with poor prognosis, driving tumor growth and metastasis PubMed search: EPHA2 lung cancer therapy.

OSMR (Oncostatin M Receptor)

• Signaling Pathways/Mechanisms: A cytokine receptor of the IL-6 family, binding Oncostatin M. Activates JAK/STAT, MAPK, and PI3K pathways, influencing cell proliferation, differentiation, and inflammatory responses in the tumor microenvironment.
• Potential Therapeutic Approaches: Targeting OSMR signaling with blocking antibodies or small molecule inhibitors could mitigate its pro-tumorigenic effects GeneCards: OSMR.
• Supporting Evidence: OSMR is implicated in lung cancer cell survival, invasion, and resistance to therapy PubMed search: OSMR lung cancer resistance.

IL13RA1 (Interleukin 13 Receptor Alpha 1)

• Signaling Pathways/Mechanisms: Forms a functional receptor complex with IL4R for IL-4 and IL-13. While involved in immune responses, its overexpression in cancer can contribute to tumor growth and immune evasion.
• Potential Therapeutic Approaches: IL13RA1 could be targeted by antibodies to block cytokine signaling or by immunotoxins GeneCards: IL13RA1.
• Supporting Evidence: IL13RA1 is overexpressed in various cancers, including some lung cancer subtypes, influencing tumor-promoting inflammation and immune regulation PubMed search: IL13RA1 cancer immunity.

Clinical or Translational Implications

The identification of condition-specific surfaceome markers in Lung Epithelial cells holds significant clinical and translational value for lung cancer.

• Diagnostic and Prognostic Biomarkers: Markers like *CLDN18* (downregulated in tumor) or highly upregulated tumor markers such as *CEACAM6*, *MUC4*, and *CDCP1* could serve as diagnostic or prognostic biomarkers, detectable through tissue biopsies or liquid biopsies (e.g., circulating tumor cells or exosomes). Their expression patterns could help in early detection, risk stratification, and predicting disease aggressiveness.
• Therapeutic Stratification: The presence and differential expression of established targets like *EGFR*, *ERBB2*, and *MET* are crucial for guiding current targeted therapies. This analysis reaffirms the importance of molecular profiling in lung cancer.
• Novel Therapeutic Targets: The numerous candidate therapeutic targets identified, including *CEACAM6*, *BST2*, *ITGA3*, *MUC4*, *CDCP1*, *PLAUR*, *EPHA2*, *OSMR*, and *IL13RA1*, provide promising avenues for the development of new treatments. As cell surface proteins, they are amenable to various therapeutic modalities such as monoclonal antibodies, antibody-drug conjugates (ADCs), and CAR T-cell therapies.
• Understanding Disease Progression: The differential expression observed between Tumor(early) and Tumor(adv) for some markers (e.g., *EGFR*, *MET*, *ERBB2*, *PLAUR*, *EPHA2*, *OSMR*) may provide insights into the molecular changes driving tumor progression, potentially allowing for therapy selection tailored to disease stage.
• Experimental Validation: Further experimental validation using in vitro and in vivo models is warranted for these candidate targets to confirm their functional roles in lung cancer pathogenesis and to assess the efficacy and safety of potential therapeutic interventions. This would involve studies such as gene knockdown/overexpression, drug screening, and preclinical animal models.

16. Macrophage Condition-Specific Surfaceome Marker Analysis in Lung Cancer

[Analysis Visualization Results]...

Analysis Overview

This analysis identifies condition-specific surfaceome markers for Macrophages across Normal, Tumor (advanced), and Tumor (early) lung tissue samples. The goal is to highlight differences in macrophage phenotypes in the tumor microenvironment (TME) compared to normal tissue, and to identify potential therapeutic targets. The dot plot visualizes the mean expression level (color intensity) and the fraction of cells expressing each marker (dot size) for each sample and condition. Only surfaceome markers were considered, with a maximum of 40 markers per condition, ensuring focus on therapeutically accessible targets.

Visual Summary

The dot plot displays a clear separation of macrophage surfaceome markers into distinct clusters corresponding to the three conditions: Normal, Tumor (advanced), and Tumor (early).

• Normal Condition: The leftmost section of the plot (samples LUNG_N06 to LUNG_N30) shows high expression and prevalence of a specific set of markers, including PECAM1, ADGRE5, MYADM, SPN, ADAM17, ATP1B1, LRP1, AXL, and CLEC12A. These markers are largely absent or expressed at very low levels in the tumor conditions, indicating a distinct homeostatic macrophage phenotype.
• Tumor (advanced) Condition: The middle section (samples EBUS_49 to LUNG_T06 and LUNG_T20 to LUNG_T28) exhibits a strong enrichment of markers such as CD14, GPR183, TNFRSF1B, MPEG1, CD300A, CD93, ICAM3, CXCR4, CSF1R, FPR3, CD48, HM13, ABCA1, FCGR2B, NRP2, FOLR2, and MMP14. These markers show high expression and prevalence across most advanced tumor samples, suggesting a shift towards a pro-tumorigenic and immunosuppressive phenotype typical of tumor-associated macrophages (TAMs).
• Tumor (early) Condition: The rightmost section (samples LUNG_T09 to LUNG_T30) largely shares the same set of enriched markers as the Tumor (advanced) condition, with some variations in expression intensity and prevalence across individual samples. Notable markers include CD14, TNFRSF1B, CXCR4, CSF1R, MPEG1, CD48, ABCA1, FCGR2B, NRP2, FOLR2, and MMP14. This indicates that many aspects of the TAM phenotype are established even in early-stage lung tumors.

Overall, the visualization effectively highlights the dynamic changes in macrophage surface marker expression as the tissue transitions from normal to early-stage and advanced lung cancer, underscoring the potential for targeting these distinct phenotypes.

Biological Interpretation

Macrophages are critical components of the tumor microenvironment (TME) in lung cancer, playing diverse roles that can either inhibit or promote tumor growth. The markers identified here reflect these functional states.

Markers in Normal Macrophages

Normal lung macrophages maintain tissue homeostasis, clear cellular debris, and provide immune surveillance.

LRP1 (Low-density lipoprotein receptor-related protein 1)

• Signaling Pathways: LRP1 is a versatile endocytic receptor and a signaling molecule. It interacts with various ligands, including lipoproteins, proteases (e.g., MMPs), and growth factors, mediating their endocytosis and degradation. It can activate intracellular signaling pathways like ERK and JNK.
• Role in TME (Normal Lung): In normal tissue, LRP1 on macrophages is crucial for clearing apoptotic cells (efferocytosis), regulating inflammation, and maintaining tissue integrity. It helps remove harmful proteases and modulate immune responses, contributing to a non-inflammatory, homeostatic environment.
• Therapeutic Potential: While not typically a therapeutic target in cancer, its role in efferocytosis and inflammation regulation highlights normal macrophage function, which is often subverted in cancer.
• References: GeneCards: LRP1

AXL (AXL receptor tyrosine kinase)

• Signaling Pathways: AXL is activated by its ligand GAS6, triggering downstream signaling through PI3K/Akt, MAPK/ERK, and STAT pathways. These pathways regulate cell survival, proliferation, migration, and anti-inflammatory responses.
• Role in TME (Normal Lung): In homeostatic macrophages, AXL contributes to efferocytosis, the clearance of apoptotic cells, and resolution of inflammation. This is a crucial mechanism to prevent chronic inflammation.
• Therapeutic Potential: AXL is often highly expressed on cancer cells and TAMs in the TME, where it promotes tumor survival, drug resistance, and metastasis. However, its presence in normal macrophages implies that targeting AXL systemically might have off-target effects. Its specific upregulation *within the tumor* (not seen here, as it is a normal marker) makes it a cancer-relevant target.
• References: UniProt: AXL

Markers in Tumor-Associated Macrophages (TAMs) in Lung Cancer

Macrophages in the lung cancer TME often differentiate into TAMs, which typically adopt an M2-like, pro-tumorigenic phenotype, promoting tumor growth, angiogenesis, immunosuppression, and metastasis.

CSF1R (Colony Stimulating Factor 1 Receptor / CD115)

• Signaling Pathways: CSF1R activation by its ligands, CSF1 or IL-34, initiates a cascade of intracellular signaling pathways, primarily the PI3K/Akt and MAPK/ERK pathways. These pathways are crucial for macrophage survival, proliferation, differentiation, and polarization.
• Role in TME: CSF1R is a hallmark receptor for TAMs. Its signaling is essential for the recruitment, survival, and differentiation of monocytes into TAMs within the TME, driving their pro-tumorigenic functions, including angiogenesis, immune suppression, and extracellular matrix remodeling. In lung cancer, high CSF1R expression on TAMs correlates with poor prognosis.
• Therapeutic Potential: CSF1R inhibition is a highly investigated therapeutic strategy to deplete TAMs or reprogram their phenotype to be anti-tumorigenic. Several small-molecule inhibitors (e.g., Pexidartinib, Cabiralizumab, Emactuzumab) targeting CSF1R are in clinical trials for various cancers, including lung cancer.
• Therapeutic Agents: Pexidartinib (small molecule inhibitor), Cabiralizumab (monoclonal antibody targeting CSF1R).
• References: PubMed Search: CSF1R inhibitors cancer

CXCR4 (C-X-C motif chemokine receptor 4)

• Signaling Pathways: CXCR4 binds to its ligand CXCL12 (SDF-1), activating G-protein coupled receptor signaling pathways (e.g., Gi protein), leading to activation of PI3K/Akt, MAPK/ERK, and Rho GTPase pathways. These govern cell migration, adhesion, survival, and proliferation.
• Role in TME: The CXCL12-CXCR4 axis is a critical mediator of tumor growth and metastasis. On TAMs, CXCR4 promotes their recruitment to hypoxic and necrotic regions of the tumor, enhancing their pro-angiogenic and immunosuppressive activities. It also facilitates interactions between TAMs and cancer cells.
• Therapeutic Potential: CXCR4 is a promising therapeutic target due to its widespread involvement in cancer progression and metastasis. Blocking the CXCL12-CXCR4 axis can inhibit TAM recruitment and reduce their pro-tumorigenic functions.
• Therapeutic Agents: Plerixafor (AMD3100) is an FDA-approved CXCR4 antagonist for hematopoietic stem cell mobilization. Other CXCR4 inhibitors are under investigation for cancer.
• References: GeneCards: CXCR4

FOLR2 (Folate Receptor Beta)

• Signaling Pathways: Folate receptors internalize folate and folate-conjugated compounds. While primarily involved in folate transport, engagement of FOLR2 has been linked to signaling pathways modulating macrophage polarization and immunosuppression.
• Role in TME: FOLR2 is highly expressed on activated macrophages, particularly M2-like TAMs, but is generally absent on quiescent macrophages. In the TME, FOLR2-positive TAMs are associated with immunosuppressive functions, promoting tumor growth and metastasis. Its expression often correlates with tumor stage and poor prognosis in lung cancer.
• Therapeutic Potential: FOLR2 presents an excellent target for selective drug delivery to TAMs using folate-conjugated cytotoxic agents or immunotherapies. This allows for specific targeting of pro-tumorigenic macrophages while minimizing off-target effects on other cell types. Antibodies targeting FOLR2 are also under investigation.
• Therapeutic Agents: Folate-drug conjugates (e.g., Vintafolide, although it faced challenges in trials for other cancers, the concept remains relevant for FOLR2+ TAMs).
• References: PubMed: Folate receptor beta tumor associated macrophages

MMP14 (Matrix Metalloproteinase 14 / MT1-MMP)

• Signaling Pathways: MMP14 is a membrane-anchored metalloproteinase that degrades various extracellular matrix (ECM) components (e.g., collagen, fibronectin) and activates other proteases (e.g., pro-MMP2). It also modulates growth factor and cytokine bioavailability. Its activity impacts cell adhesion and migration through integrin signaling.
• Role in TME: MMP14 is highly expressed by TAMs and cancer cells. It plays a critical role in facilitating tumor invasion, metastasis, angiogenesis, and immunosuppression by remodeling the ECM, releasing pro-angiogenic factors, and processing immune checkpoint molecules. Its activity creates a permissive environment for tumor growth.
• Therapeutic Potential: Targeting MMP14 could inhibit multiple aspects of tumor progression driven by TAMs, including invasion and angiogenesis. Selective MMP14 inhibitors are being explored, though broad-spectrum MMP inhibitors have faced challenges due to side effects.
• References: GeneCards: MMP14

Clinical or Translational Implications

The distinct surfaceome marker profiles observed on macrophages in normal versus lung tumor tissues, particularly the upregulation of markers like CSF1R, CXCR4, FOLR2, and MMP14 in advanced and early tumors, carry significant clinical and translational implications:

1. Biomarker Potential: These condition-specific markers could serve as diagnostic or prognostic biomarkers for lung cancer, potentially indicating the presence of tumor-promoting macrophages and disease progression.
2. Therapeutic Targeting of TAMs: The identified surfaceome markers offer tangible targets for novel therapeutic strategies aimed at modulating TAM function in lung cancer.

• Depletion/Reprogramming: Inhibitors of CSF1R, for example, can reduce TAM numbers or switch their phenotype from pro-tumorigenic to anti-tumorigenic.
• Targeted Drug Delivery: FOLR2, being specifically expressed on TAMs, could be utilized for the precise delivery of cytotoxic drugs or immunomodulatory agents directly to these cells, minimizing systemic toxicity.
• Inhibition of Pro-Tumorigenic Functions: Targeting CXCR4 could block TAM recruitment and metastatic spread, while MMP14 inhibition could impede ECM remodeling, invasion, and angiogenesis.

3. Combination Therapies: Given the multifaceted roles of TAMs, combining TAM-targeting agents with existing standard-of-care treatments (e.g., chemotherapy, radiation, immune checkpoint inhibitors) could enhance therapeutic efficacy and overcome resistance mechanisms in lung cancer.
4. Monitoring Therapeutic Response: Changes in the expression of these macrophage surface markers could potentially be used to monitor the efficacy of TAM-targeted therapies in clinical trials.

The identification of these markers, particularly in early-stage tumors, suggests that interventions targeting TAMs could be beneficial even at earlier stages of lung cancer progression. Further preclinical and clinical validation is warranted to explore the full therapeutic potential of these macrophage surfaceome markers.

17. Fibroblast Condition-Specific Surfaceome Markers in Lung Cancer

[Analysis Visualization Results]...

Analysis Overview

This analysis identifies and visualizes surfaceome markers specifically expressed by Fibroblast cells across 'Normal' and 'Tumor(early)' lung conditions. The dot plot displays gene expression levels (color intensity) and the fraction of cells expressing each gene (dot size) for each sample. Markers were identified based on differential expression analysis comparing each condition against the reference 'Normal' condition, with a focus on surfaceome proteins. This provides insights into how fibroblast phenotype changes in the early stages of lung tumorigenesis.

Visual Summary

The dot plot clearly differentiates two main groups of fibroblast samples: those from 'Normal' lung tissues (LUNG_N31 to LUNG_N19) and those from 'Tumor(early)' lung tissues (LUNG_T28 to LUNG_T30).

• Normal Fibroblast Markers: A distinct set of surface markers, including GPNMB, TSPAN8, SCARA5, GAS1, LEPR, GPRC5A, CD34, PTPRS, CD55, PI16, CDH11, THY1, and PLXDC2, show high expression and prevalence within the 'Normal' samples. These markers are largely absent or expressed at very low levels in the 'Tumor(early)' fibroblast samples.
• Tumor(early) Fibroblast Markers: In stark contrast, a wide array of markers, such as ENG, SCARB2, PDGFRA, SLC2A3, TMEM123, ANTXR1, TNFSF13B, MMP14, CD82, FAP, PLAUR, ITGAV, NOTCH2, VCAM1, and F2R, are highly expressed and prevalent in fibroblasts from 'Tumor(early)' samples. These markers are either absent or minimally expressed in 'Normal' fibroblasts. The intensity of expression (darker red dots) and the large size of the dots indicate strong and widespread expression of these genes within the tumor-associated fibroblasts.
• Sample-Specific Variability: While overall trends are clear, some sample-to-sample variability is observed within both normal and tumor groups, suggesting heterogeneity even within the same condition. The side bar shows the number of cells per sample group, indicating that sample LUNG_N31 and LUNG_T18 have a higher number of cells within their respective groups.

Biological Interpretation

The differential expression of surfaceome markers in fibroblasts between normal and early tumor conditions highlights the profound phenotypic changes that occur in these cells during tumorigenesis, leading to the formation of Cancer-Associated Fibroblasts (CAFs). These changes are critical for creating a pro-tumorigenic tumor microenvironment (TME).

Markers Enriched in Normal Fibroblasts:

These markers represent characteristics of quiescent or homeostatic fibroblasts.

CDH11 (Cadherin-11)

• Expression Profile: High expression in Normal lung fibroblasts, low in Tumor(early).
• Associated Signaling Pathways: Primarily involved in homophilic cell-cell adhesion, Wnt signaling, and Rho GTPase signaling. CDH11 mediates calcium-dependent cell adhesion. GeneCards: CDH11
• Role in Tumor Microenvironment (Fibroblasts): In normal tissue, CDH11 contributes to tissue integrity and organization. Its reduced expression in tumor-associated fibroblasts might be associated with a loss of contact inhibition or altered cell-cell interactions that facilitate a more motile and activated fibroblast phenotype in the TME, or a shift to different adhesion molecules.
• Therapeutic Target Potential: While its loss might be significant, directly targeting reduced expression is challenging. It could serve as a marker for normal fibroblast populations to distinguish them from activated CAFs.
• Relevant Therapeutic Agents: Not a direct therapeutic target for cancer, but understanding its role in normal tissue architecture is important for tissue engineering and regenerative medicine.
• Other Pertinent Information: CDH11 has context-dependent roles in cancer, sometimes promoting invasion and metastasis in tumor cells, but its lower expression in fibroblasts here suggests a shift from a normal adhesive phenotype.

THY1 (CD90)

• Expression Profile: High expression in Normal lung fibroblasts, with some lower expression in certain Tumor(early) samples.
• Associated Signaling Pathways: A glycosylphosphatidylinositol (GPI)-anchored glycoprotein involved in cell adhesion, cell-cell/cell-matrix interactions, T cell activation, and fibroblast activation. It can signal through interaction with integrins. UniProt: P04216 (THY1_HUMAN)
• Role in Tumor Microenvironment (Fibroblasts): THY1 is a common marker for fibroblasts and mesenchymal stem cells. Its presence in normal fibroblasts suggests a role in tissue homeostasis and normal fibroblast function. In cancer, THY1 can have dual roles; it can promote tumor growth and metastasis in some contexts, but also mediate anti-tumor immunity. Its expression may vary with CAF subtypes and their activation states. The relatively higher expression in normal fibroblasts compared to tumor suggests a possible downregulation or shift in CAF populations in early lung tumor development.
• Therapeutic Target Potential: THY1's role is complex and context-dependent. While it's a marker for mesenchymal cells, its therapeutic targeting would require careful consideration of its multifaceted functions.
• Relevant Therapeutic Agents: No established therapeutic agents directly targeting THY1 in cancer currently, but it's a research area in fibrosis and stem cell biology.
• Other Pertinent Information: THY1 is often associated with a pro-fibrotic phenotype, which is a component of the TME. Its specific role in early lung cancer fibroblasts would warrant further investigation.

Markers Enriched in Tumor(early) Fibroblasts:

These markers characterize activated CAFs that promote early lung tumor progression.

FAP (Fibroblast Activation Protein alpha)

• Expression Profile: Highly elevated in Tumor(early) lung fibroblasts, virtually absent in Normal.
• Associated Signaling Pathways: FAP is a serine protease and dipeptidyl peptidase. It cleaves various extracellular matrix (ECM) components and peptide hormones, thereby influencing ECM remodeling, growth factor bioavailability, and immune cell recruitment. GeneCards: FAP
• Role in Tumor Microenvironment (Fibroblasts): FAP-positive CAFs are a hallmark of desmoplastic tumors, including lung cancer. They contribute to ECM stiffening, create pathways for tumor cell invasion, and promote an immunosuppressive TME by degrading chemokines and growth factors. In early lung tumors, FAP+ CAFs can drive tumor cell proliferation, survival, and angiogenesis.
• Therapeutic Target Potential: FAP is an attractive therapeutic target due to its restricted expression in healthy adult tissues (except for wound healing and some inflammatory conditions) and high expression in the TME of most solid tumors. Targeting FAP aims to disrupt CAF-mediated tumor support.
• Relevant Therapeutic Agents: FAP-targeting strategies include FAP-specific antibodies, FAP-activated prodrugs, FAP-targeting small molecule inhibitors, and FAP-targeting CAR-T cells, which are under investigation in preclinical and clinical trials.
• Other Pertinent Information: High FAP expression often correlates with poor prognosis in various cancers, including lung cancer. Its early upregulation here suggests its involvement from the initial stages of tumor development.

ENG (Endoglin/CD105)

• Expression Profile: Significantly upregulated in Tumor(early) lung fibroblasts, low in Normal.
• Associated Signaling Pathways: ENG is a co-receptor for TGF-beta superfamily ligands, modulating TGF-beta signaling. It plays a crucial role in angiogenesis, inflammation, and fibrosis. UniProt: P17813 (ENG_HUMAN)
• Role in Tumor Microenvironment (Fibroblasts): In CAFs, ENG can contribute to the pro-angiogenic TME and influence the fibrotic response by modulating TGF-beta signaling, which is a key driver of CAF activation and ECM production. Its upregulation in early tumor fibroblasts may contribute to the initial angiogenic switch and stromal remodeling necessary for tumor growth.
• Therapeutic Target Potential: ENG is a well-established marker of proliferating endothelial cells in tumors, making it a target for anti-angiogenic therapies. Its presence on CAFs suggests an additional mechanism by which targeting ENG could impact the TME.
• Relevant Therapeutic Agents: Anti-CD105 (Endoglin) antibodies (e.g., TRC105) have been developed and tested in clinical trials for various cancers, primarily for their anti-angiogenic effects.
• Other Pertinent Information: ENG expression correlates with microvessel density and poor prognosis in many cancers. Its presence on tumor fibroblasts indicates their active participation in TME remodeling beyond just angiogenesis.

MMP14 (Matrix Metalloproteinase 14 / MT1-MMP)

• Expression Profile: High expression in Tumor(early) lung fibroblasts, very low in Normal.
• Associated Signaling Pathways: MMP14 is a membrane-bound metalloproteinase that degrades various ECM components (e.g., collagen, fibronectin) and activates other proteases (e.g., pro-MMP2). It is involved in cell migration, invasion, and angiogenesis. GeneCards: MMP14
• Role in Tumor Microenvironment (Fibroblasts): CAFs are major producers of MMPs. High MMP14 expression in tumor-associated fibroblasts contributes to the proteolytic degradation of the ECM, facilitating tumor cell invasion and metastasis. It also creates space for new blood vessel formation and modulates growth factor availability. This is particularly crucial in early tumor stages for establishing an invasive front.
• Therapeutic Target Potential: MMP14 is an attractive target due to its direct role in ECM breakdown and tumor cell invasion. Inhibiting MMP14 could reduce tumor spread and block angiogenesis.
• Relevant Therapeutic Agents: Broad-spectrum MMP inhibitors have largely failed in clinical trials due to side effects. However, specific MMP14 inhibitors are being explored, along with strategies to target MMP14 activity more precisely within the TME.
• Other Pertinent Information: MMP14 is linked to aggressive tumor phenotypes and poor patient outcomes in lung cancer and other solid tumors.

PDGFRA (Platelet-Derived Growth Factor Receptor Alpha)

• Expression Profile: Elevated in Tumor(early) lung fibroblasts, lower in Normal.
• Associated Signaling Pathways: PDGFRA is a receptor tyrosine kinase that binds to PDGF ligands (PDGF-AA, -BB, -CC, -AB). Activation of PDGFRA leads to downstream signaling through pathways like PI3K/Akt, MAPK/ERK, and STAT, promoting cell proliferation, survival, migration, and angiogenesis. UniProt: P16234 (PDGFRA_HUMAN)
• Role in Tumor Microenvironment (Fibroblasts): PDGF signaling is a key driver of fibroblast activation and proliferation, converting normal fibroblasts into CAFs. In early lung cancer, PDGFRA-positive CAFs proliferate, contribute to desmoplasia, and secrete various factors that support tumor cell growth and survival.
• Therapeutic Target Potential: PDGFRA is a well-validated therapeutic target in certain cancers (e.g., GIST). Its expression on CAFs makes it a potential target to inhibit CAF activation and reduce stromal support for the tumor.
• Relevant Therapeutic Agents: Tyrosine kinase inhibitors (TKIs) such as imatinib, sunitinib, and regorafenib, which target PDGFRA (among other kinases), are approved for various cancers. Repurposing or developing more specific PDGFRA inhibitors for CAF-targeted therapy is an active area of research.
• Other Pertinent Information: PDGFRA signaling is crucial for tissue repair and fibrosis. In cancer, aberrant activation contributes to the fibrotic component of the TME, creating a physical barrier to drug delivery.

PLAUR (Urokinase Plasminogen Activator Receptor / uPAR)

• Expression Profile: Significantly upregulated in Tumor(early) lung fibroblasts, minimal in Normal.
• Associated Signaling Pathways: PLAUR is a GPI-anchored receptor that binds to urokinase-type plasminogen activator (uPA). This complex initiates a cascade of pericellular proteolysis, leading to the generation of plasmin, which degrades ECM components and activates growth factors. It also mediates cell adhesion, migration, and signaling through interactions with integrins and other receptors. GeneCards: PLAUR
• Role in Tumor Microenvironment (Fibroblasts): In tumor-associated fibroblasts, PLAUR promotes pericellular proteolysis, facilitating cell invasion and migration, and remodeling the ECM. This activity is crucial for creating an environment permissive for tumor growth, angiogenesis, and metastasis, even at early stages.
• Therapeutic Target Potential: PLAUR plays a central role in tumor invasion and metastasis, making it an attractive target. Inhibiting uPAR or uPA-uPAR interaction can reduce tumor invasiveness.
• Relevant Therapeutic Agents: Small molecule inhibitors, antibodies, or peptides designed to block uPAR-uPA interaction or uPAR-integrin binding are being investigated.
• Other Pertinent Information: High PLAUR expression is associated with aggressive tumor behavior and poor prognosis in many cancers, including lung cancer. Its early upregulation underscores its importance in the initial stages of tumor progression.

Clinical or Translational Implications

The identification of distinct surfaceome markers for Normal versus Tumor(early) fibroblasts has several crucial clinical and translational implications for lung cancer:

1. Early Diagnostic and Prognostic Biomarkers: Markers like FAP, ENG, MMP14, PDGFRA, and PLAUR, which are highly specific to early tumor-associated fibroblasts, could serve as early diagnostic indicators or prognostic markers for lung cancer progression. Their detection in patient samples (e.g., through liquid biopsies or tissue staining) could help identify early-stage disease or predict disease aggressiveness.
2. Targeted Therapeutic Strategies: The surface expression of these markers makes them highly accessible for therapeutic intervention. Targeting CAFs that express these markers could lead to novel stromal-targeting therapies.

• Direct Inhibition: Developing specific inhibitors or blocking antibodies against FAP, ENG, MMP14, PDGFRA, or PLAUR could disarm CAFs, reducing their pro-tumorigenic functions.
• Drug Delivery: These markers could be used to specifically deliver cytotoxic agents or immunomodulators to CAFs, minimizing off-target effects on normal stromal cells. This is particularly relevant for FAP due to its restricted expression in healthy tissues.
• Combination Therapies: Combining CAF-targeting therapies with conventional chemotherapy, radiation, or immunotherapy could overcome resistance mechanisms and improve treatment outcomes by remodeling the TME and enhancing drug penetration.

3. Understanding Early Tumor Progression: The robust differential expression in early tumor stages highlights that CAF activation is not merely a late-stage phenomenon but is actively involved from the inception of tumor development. Understanding the precise roles of these markers in initiating and sustaining the early lung cancer TME can inform preventative strategies or early intervention.
4. Monitoring Treatment Response: Changes in the expression of these CAF-specific markers could be monitored to assess the efficacy of CAF-targeting therapies or to track tumor response to other treatments.

Further research is warranted to validate these markers in larger patient cohorts and to explore the clinical utility of targeting these pathways in early lung cancer.

18. T cell CD4+ Condition-Specific Surfaceome Marker Expression in Lung Cancer

[Analysis Visualization Results]...

Analysis Overview

This analysis identifies and visualizes surfaceome markers specifically expressed by CD4+ T cells across different conditions: Normal, Tumor (advanced), and Tumor (early), using single-cell RNA sequencing data from lung tissue. The comparison is performed against the 'Normal' reference condition. The objective is to highlight surface markers that differentiate CD4+ T cell states in healthy versus cancerous lung microenvironments, with a focus on their biological significance, role in the tumor microenvironment (TME), and potential as therapeutic targets. Up to 40 surfaceome markers per condition (with a non-zero percentage score above a specified threshold and fold change) were selected and displayed in a dot plot.

Visual Summary

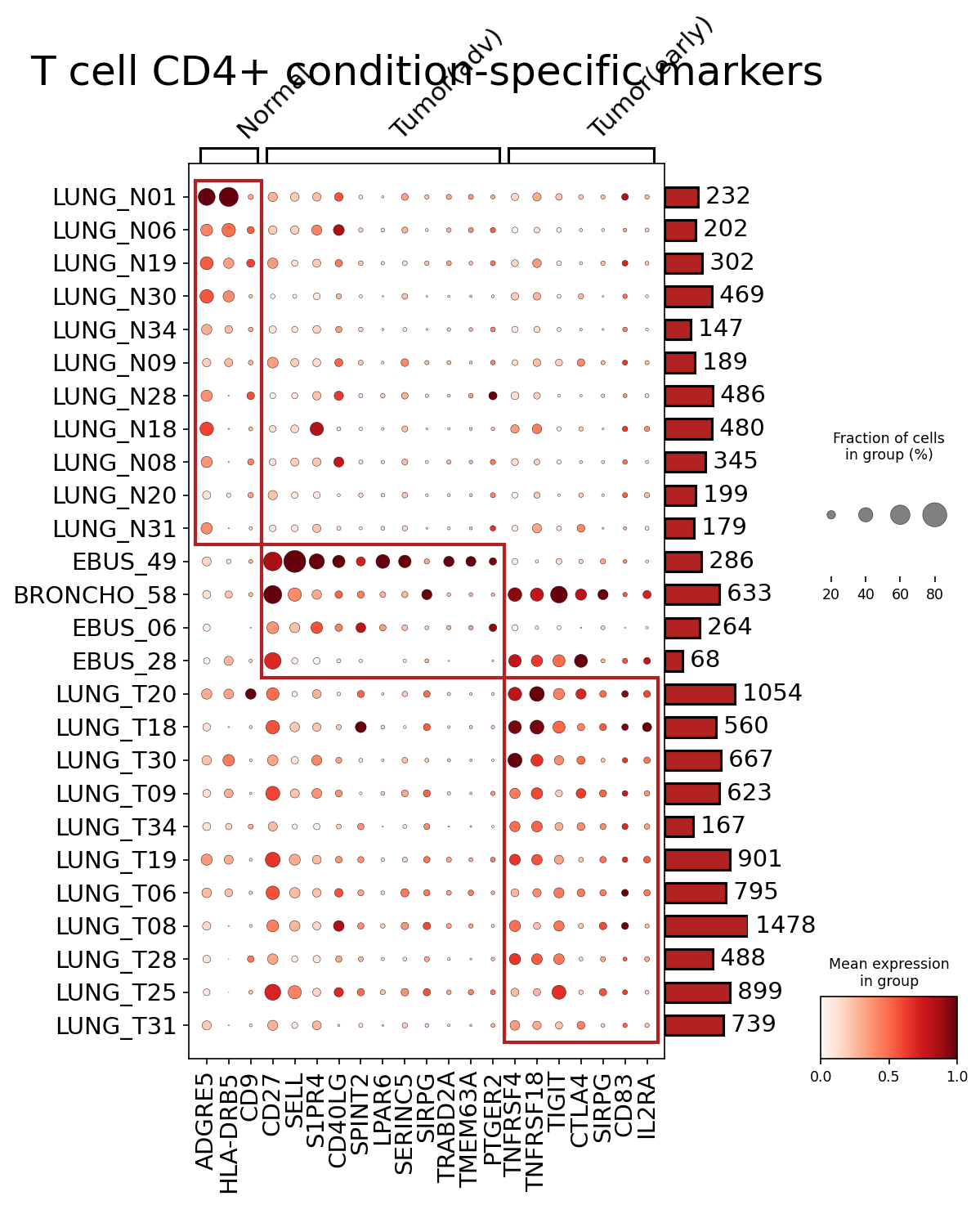

The dot plot visualizes the expression of 23 distinct surfaceome markers in CD4+ T cells across 26 individual samples. Each row represents a sample, clustered by condition (Normal, Tumor(adv), Tumor(early)), and each column represents a marker.

• Dot Size: Corresponds to the fraction of CD4+ T cells within that sample expressing the marker (non-zero counts).
• Dot Color Intensity: Represents the mean expression level of the marker in the expressing cells.
• Right Bar Plot: Shows the total number of CD4+ T cells identified for each sample, indicating cellular abundance.

Key observations:

1. Normal-associated Markers: A distinct cluster of markers, including EMP3, HLA-DRA, HLA-DRB1, MYADM, ATP1B3, and PTGER4, shows high mean expression and high cell fraction primarily in the 'Normal' lung samples (e.g., LUNG_N19, LUNG_N01, LUNG_N06). These markers are largely absent or expressed at very low levels in both 'Tumor(adv)' and 'Tumor(early)' samples. This suggests that CD4+ T cells in healthy lung tissue possess a unique surface phenotype compared to those infiltrating tumors.
2. Tumor-associated Markers: A second, larger cluster of markers, including CD7, CD27, PIK3IP1, SELL, CD164, BST2, S1PR4, TNFRSF14, BTN3A2, EVI2A, and ICOS, is predominantly expressed in 'Tumor(adv)' and 'Tumor(early)' samples.

• These markers generally exhibit higher mean expression and/or a larger fraction of expressing cells in tumor samples compared to normal samples.
• There is considerable heterogeneity in the expression patterns of these tumor-associated markers across different tumor samples. For instance, samples like BRONCHO_58, EBUS_49, LUNG_T19, and LUNG_T09 show particularly high expression of several tumor-associated markers.
• CD27 and ICOS, both known co-stimulatory receptors, are notably upregulated in a majority of tumor samples, indicating altered activation states or functional shifts in tumor-infiltrating CD4+ T cells.

3. Condition-Specific Patterns: The clear separation of marker expression profiles between normal and tumor samples highlights significant transcriptional reprogramming of CD4+ T cells in the context of lung cancer. Some markers show higher prevalence in 'Tumor(adv)' (e.g., PIK3IP1) while others are prominent in both 'Tumor(adv)' and 'Tumor(early)' (e.g., CD27, ICOS).

Biological Interpretation

CD4+ T helper cells are crucial orchestrators of immune responses, playing diverse roles in the tumor microenvironment (TME), from promoting anti-tumor immunity to fostering immunosuppression and tumor progression. The observed differential expression of surfaceome markers points to distinct functional states of CD4+ T cells in normal lung tissue versus lung cancer.

Normal-associated T cell CD4+ Markers

These markers are highly expressed by CD4+ T cells in normal lung tissue but are downregulated or absent in tumor-infiltrating CD4+ T cells, suggesting a loss of specific homeostatic or immune-competent functions in the TME.

HLA-DRA and HLA-DRB1 (MHC Class II molecules):

• Signaling Pathways: These molecules form the MHC Class II complex, essential for presenting extracellular antigens to CD4+ T cells. This interaction is central to initiating and regulating adaptive immune responses, including self-tolerance and responses to pathogens.
• Role in TME: High expression on CD4+ T cells in normal tissue suggests a robust capacity for antigen recognition and immune surveillance. Downregulation in the TME could indicate an altered state where CD4+ T cells are less equipped for antigen presentation, or it could reflect a shift in T cell subsets away from antigen-presenting phenotypes. Loss of MHC-II expression on antigen-presenting cells (APCs) in the TME is a known immune escape mechanism for tumors.
• Therapeutic Potential: While not direct therapeutic targets *on* CD4+ T cells, their expression serves as a biomarker for T cell functionality. Strategies that enhance antigen presentation in the TME could indirectly restore the function of CD4+ T cells.
• Relevant Therapeutic Agents: Immune checkpoint inhibitors can indirectly enhance antigen presentation pathways.
• Other Information: MHC Class II expression is often associated with activated or memory T cells capable of antigen presentation, suggesting a more active surveillance state in normal lung.

GeneCards: HLA-DRA

PTGER4 (Prostaglandin E Receptor 4):

• Signaling Pathways: PTGER4 is a receptor for Prostaglandin E2 (PGE2), a lipid mediator often highly abundant in the TME. PGE2-EP4 signaling frequently mediates immunosuppressive effects, promoting regulatory T cell (Treg) development, T cell anergy, and tumor growth.
• Role in TME: The robust expression of PTGER4 on CD4+ T cells in normal tissue might be involved in maintaining immune homeostasis. Its observed downregulation in tumor-associated CD4+ T cells is notable. While PGE2 generally promotes immunosuppression, tumor-infiltrating T cells might lose sensitivity to PGE2 via receptor downregulation, or this could signify a shift in T cell subsets that do not express PTGER4.
• Therapeutic Potential: EP4 antagonists are investigated as a strategy to block PGE2-mediated immunosuppression in cancer. If tumor T cells lose EP4, antagonists might primarily affect other cell types (e.g., myeloid cells, tumor cells) that still express the receptor.

GeneCards: PTGER4

Tumor-associated T cell CD4+ Markers

These markers are predominantly expressed by CD4+ T cells in tumor samples, suggesting specific adaptations, activation states, or dysfunctional phenotypes acquired in the lung cancer TME.

CD27:

• Signaling Pathways: CD27 is a co-stimulatory receptor of the TNF receptor superfamily, binding to its ligand CD70. This interaction provides critical signals for T cell activation, proliferation, differentiation into effector and memory cells, and survival.
• Role in TME: Upregulation of CD27 in tumor-infiltrating CD4+ T cells suggests their activation or differentiation into specific effector/memory subsets. However, chronic CD27-CD70 signaling in the TME can also contribute to T cell exhaustion or the generation of immunosuppressive regulatory T cells.
• Therapeutic Potential: Agonistic anti-CD27 antibodies aim to enhance T cell-mediated anti-tumor immunity by providing additional co-stimulation. Clinical trials have explored these agents (e.g., varlilumab) in various cancers.
• Relevant Therapeutic Agents: Varlilumab (anti-CD27 antibody).

GeneCards: CD27

ICOS (Inducible T-cell Co-stimulator):

• Signaling Pathways: ICOS is another co-stimulatory receptor belonging to the CD28 superfamily, activated by its ligand ICOSL. It plays a pivotal role in T follicular helper (Tfh) cell differentiation, germinal center reactions, and the function of various effector T cell subsets.
• Role in TME: ICOS expression on tumor-infiltrating CD4+ T cells is frequently associated with T cell activation and can correlate with both anti-tumor immunity (e.g., Th1-like responses) and pro-tumorigenic effects (e.g., fostering immunosuppressive Tregs). Its presence indicates an active but potentially ambivalent role in the TME, requiring further characterization of the specific CD4+ T cell subsets.
• Therapeutic Potential: Agonistic anti-ICOS antibodies are being investigated as immunotherapeutic agents to enhance anti-tumor T cell responses. However, careful consideration is needed given its potential role on Tregs.

GeneCards: ICOS

PIK3IP1 (Phosphoinositide-3-Kinase Interacting Protein 1):

• Signaling Pathways: PIK3IP1 is a negative regulator of the PI3K signaling pathway. The PI3K pathway is critical for diverse cellular processes, including T cell activation, proliferation, survival, and differentiation.
• Role in TME: Upregulation of PIK3IP1 on CD4+ T cells in tumor samples suggests an intrinsic inhibitory mechanism that could dampen PI3K signaling. This could lead to impaired T cell activation, reduced proliferation, and contribute to T cell dysfunction or anergy, thereby fostering immune evasion by the tumor.
• Therapeutic Potential: Targeting PIK3IP1 to relieve its inhibitory effect on PI3K signaling in T cells could theoretically boost anti-tumor immune responses. However, systemic PI3K activation can have broad side effects, requiring T cell-specific targeting strategies.

GeneCards: PIK3IP1

TNFRSF14 (HVEM, Herpesvirus Entry Mediator):

• Signaling Pathways: TNFRSF14 is a member of the TNF receptor superfamily. It interacts with multiple ligands, including LIGHT (TNFSF14), BTLA, and CD160, providing context-dependent co-stimulatory or co-inhibitory signals to T cells.
• Role in TME: The HVEM-LIGHT interaction generally promotes T cell activation and survival, while HVEM-BTLA and HVEM-CD160 interactions deliver inhibitory signals that can induce T cell exhaustion. Upregulation on tumor-infiltrating CD4+ T cells indicates a potential balance of activating and inhibitory signals, which can lead to T cell dysfunction or exhaustion depending on the specific ligand environment within the TME.
• Therapeutic Potential: Modulating the HVEM pathway, such as using agonistic anti-LIGHT antibodies or blocking HVEM-BTLA interactions, represents potential strategies to enhance anti-tumor immunity.

GeneCards: TNFRSF14

S1PR4 (Sphingosine-1-Phosphate Receptor 4):

• Signaling Pathways: S1PR4 is a G protein-coupled receptor that binds sphingosine-1-phosphate (S1P), a bioactive lipid. S1P-S1PR signaling regulates various cellular processes, critically including lymphocyte trafficking, proliferation, and survival.
• Role in TME: S1PRs, particularly S1PR1, are essential for lymphocyte egress from lymphoid organs. S1PR4 is expressed on various immune cells, including T cells. Its upregulation on tumor-infiltrating CD4+ T cells could indicate altered trafficking, retention, or survival mechanisms within the TME. The S1P gradient within and around tumors can profoundly influence immune cell infiltration and egress.
• Therapeutic Potential: Modulators of S1PRs are used in autoimmune diseases. In cancer, targeting the S1P-S1PR axis could be a strategy to alter immune cell trafficking and influence the composition and function of the TME.

GeneCards: S1PR4

Clinical or Translational Implications

The identification of condition-specific surfaceome markers on CD4+ T cells provides valuable insights for developing diagnostic, prognostic, and therapeutic strategies in lung cancer.

1. Biomarker Discovery: The distinct surface marker profiles can serve as biomarkers to distinguish between healthy and tumor-associated CD4+ T cells. For instance, high expression of HLA-DRA/DRB1 could indicate a more 'healthy' immune state, while the co-expression of CD27 and ICOS could characterize activated, or potentially exhausted, T cells in the TME. These markers could be utilized for patient stratification or monitoring treatment response.
2. Therapeutic Targeting: Markers like CD27 and ICOS are particularly promising for immunotherapeutic intervention. Agonistic antibodies targeting these receptors aim to boost anti-tumor immune responses, and their upregulation in tumor-infiltrating CD4+ T cells suggests that these cells are responsive to such modulation. Further investigation into the specific functional impact of these markers on CD4+ T cell subsets within lung cancer is warranted.
3. Understanding T cell Dysfunction: The upregulation of PIK3IP1 and the complex signaling landscape involving TNFRSF14 point towards intrinsic mechanisms of T cell dysfunction within the TME. Understanding how these pathways contribute to T cell anergy or exhaustion could lead to novel therapeutic approaches aimed at restoring T cell effector function.
4. Targeted Drug Delivery: Surface markers exclusively expressed on tumor-associated T cells could potentially be used for targeted drug delivery to selectively modulate these cells, minimizing off-target effects on healthy tissues.
5. Further Validation: These findings warrant further validation through flow cytometry or immunohistochemistry to confirm protein expression on the cell surface and to correlate these marker profiles with patient outcomes and responses to existing therapies. Single-cell proteomic approaches could further refine our understanding of these surface markers.

19. Differential Cell Cycle Gene Expression in Lung Epithelial Cells Across Lung Cancer Stages

[Analysis Visualization Results]...

Analysis Overview

This analysis investigates the expressing cell fraction of a curated set of cell cycle pathway genes in Lung Epithelial cells across three conditions: Normal, Tumor(early), and Tumor(adv) (advanced). The "expressing cell fraction" represents the proportion of cells within a given sample (patient) that show detectable expression of a specific gene. Statistically significant differences between conditions are highlighted, providing insights into cell cycle dysregulation during lung cancer initiation and progression. The analysis focused on the Lung Epithelial cell type, which is identified as the tumor-origin cell type in this dataset.

Visual Summary

The box plots display the distribution of the expressing cell fraction for 20 selected cell cycle-related genes across the three conditions. Each dot represents a sample, and the box illustrates the interquartile range with the median. P-values from statistical tests comparing specific condition pairs are indicated above the bars, highlighting statistically significant differences (typically p < 0.05).

Key visual observations include:

• Genes Upregulated in Early Tumor: TGFB1, CDKN2A, TP53, SFN, and CCND1 show a significantly higher expressing cell fraction in the 'Tumor(early)' condition compared to 'Normal'. For some of these, like CDKN2A and TP53, the fraction tends to decrease again in the 'Tumor(adv)' stage.
• Genes Upregulated in Advanced Tumor: CDKN2C, CDC16, CDC26, MAD2L1, ANAPC5, YWHAQ, SMC3, and SKP1 exhibit a significantly elevated expressing cell fraction in 'Tumor(adv)' compared to 'Normal' and/or 'Tumor(early)'.
• Genes Upregulated in Both Tumor Stages: YWHAH, CDKN1A, YWHAZ, MDM2, and SMAD3 generally show a higher expressing cell fraction in both 'Tumor(early)' and 'Tumor(adv)' conditions compared to 'Normal'. CDKN1A specifically shows an even higher fraction in 'Tumor(adv)' compared to 'Tumor(early)'.
• Distinct Dynamic Patterns: The plots reveal varied dynamics for cell cycle regulators. Some tumor suppressors (e.g., CDKN2A, TP53) show an initial increase in expressing cell fraction in early tumor, potentially reflecting an active cellular response to oncogenic stress, followed by a decrease or normalization in advanced stages, suggesting bypass or suppression of these pathways. Conversely, many components associated with active mitosis (e.g., CDC16, CDC26, MAD2L1, ANAPC5) are enriched in advanced tumors.

Biological Interpretation

The observed changes in the expressing cell fraction of cell cycle genes in Lung Epithelial cells provide critical insights into the biological processes underlying lung cancer development and progression.

1. Early Tumorigenesis - A Battle for Control:

• The increased expressing cell fraction of TP53 (a critical tumor suppressor gene) GeneCards: TP53 and CDKN2A (p16INK4a, a cell cycle inhibitor) GeneCards: CDKN2A in early tumor stages suggests an initial cellular stress response. These cells may be attempting to halt proliferation or undergo apoptosis/senescence in response to early oncogenic events.
• Concurrently, the upregulation of CCND1 (Cyclin D1), a G1-S phase cyclin, in early tumors indicates activated proliferation pathways GeneCards: CCND1. This could represent an initial proliferative burst in early cancer, potentially outstripping the concurrent tumor suppressive responses.
• SFN (Stratifin, also known as 14-3-3 sigma), a p53-regulated protein involved in cell cycle arrest, also shows higher fractions in early tumor GeneCards: SFN. This reinforces the notion of an active, albeit potentially overwhelmed, tumor suppressive program.
• The increased fraction of MDM2 (a negative regulator of p53) GeneCards: MDM2 in both early and advanced tumors, but notably active in early stages, suggests that mechanisms to counteract p53 activity are already in play during early tumor development.

2. Advanced Tumor Progression - Uncontrolled Proliferation and Mitotic Dysregulation:

• In advanced tumors, the expressing cell fraction of CDKN2A and TP53 appears to decrease from the early tumor peak, aligning with the common mechanisms of tumor suppressor inactivation or bypass in established cancers.
• Conversely, several key components of the Anaphase-Promoting Complex/Cyclosome (APC/C) and cohesin complex, such as ANAPC5, CDC16, CDC26, MAD2L1, SKP1, and SMC3, show elevated expressing cell fractions in advanced tumor stages. These proteins are critical for precise chromosome segregation during mitosis PubMed: The anaphase-promoting complex/cyclosome in cell division. Their upregulation likely reflects increased mitotic activity and potentially impaired cell cycle checkpoints, contributing to the observed aneuploidy in the dataset.
• CDKN1A (p21WAF1/CIP1), another CDK inhibitor often induced by p53, is elevated in both early and advanced tumors, even more so in advanced. This might suggest persistent replication stress or activation of p53-independent p21 regulation in later stages, possibly contributing to a distinct cell cycle profile.
• The 14-3-3 proteins (YWHAH, YWHAQ, YWHAZ), which act as adaptors in various signaling pathways including cell cycle control, are also generally upregulated in tumor conditions. Their sustained high expression implies a broader cellular adaptation to oncogenic stress and altered signaling environment.
• CDKN2C (p18INK4c), another CDK inhibitor, showing higher expression in advanced tumor, presents a complex picture. While generally a suppressor, its context-dependent role or a compensatory upregulation in the face of other severe cell cycle dysregulations might explain this observation.

3. TGFB1 and SMAD3 Dynamics:

• TGFB1 shows a significantly higher expressing cell fraction in early tumor compared to normal and advanced stages. TGF-β signaling is pleiotropic, acting as a tumor suppressor in early stages and a tumor promoter in advanced stages PubMed: TGF-beta signaling in cancer. The early upregulation here might reflect an initial pro-apoptotic or growth-inhibitory response, which is then bypassed or even subverted in later stages.
• SMAD3, a key mediator of TGF-β signaling, is elevated in both early and advanced tumor stages. This suggests active TGF-β pathway engagement throughout tumorigenesis, albeit potentially with different downstream effects depending on the tumor stage and cellular context.

In summary, Lung Epithelial cells in early lung cancer demonstrate a dynamic interplay between proliferative signals and activated tumor suppressor mechanisms. As the disease progresses to advanced stages, there appears to be a shift towards a dominance of proliferative and mitotic machinery components, potentially indicating the bypass of initial checkpoints and leading to uncontrolled growth and genomic instability.

Clinical or Translational Implications

The differential expression patterns of these cell cycle genes in Lung Epithelial cells hold several clinical and translational implications for lung cancer:

• Biomarkers for Staging and Prognosis: Genes like CDKN2A, TP53, CCND1, and key mitotic machinery components show distinct patterns between early, advanced, and normal conditions. These could serve as potential biomarkers for distinguishing early-stage from advanced-stage lung cancer, aiding in diagnosis, staging, and prognosis.

Therapeutic Targets

• The consistent upregulation of mitotic machinery components (e.g., ANAPC5, CDC16, CDC26, MAD2L1, SKP1, SMC3) in advanced tumors suggests these pathways are crucial for sustained tumor growth and could be targeted by anti-mitotic therapies.
• The 14-3-3 proteins (YWHAH, YWHAQ, YWHAZ) are known to be involved in various cancer processes and are being explored as therapeutic targets due to their role in cell survival, apoptosis, and drug resistance.
• Understanding Treatment Resistance: The complex interplay and stage-specific changes in cell cycle regulators could offer insights into mechanisms of treatment resistance, especially concerning agents targeting cell proliferation. For instance, the dynamics of p53 and MDM2 could inform strategies to restore p53 function.
• Stratified Treatment Approaches: Tailoring therapeutic interventions based on the stage-specific molecular profile of cell cycle dysregulation could lead to more effective, personalized treatment strategies for lung cancer patients.

20. Gene Ontology (GSA) Analysis for Lung Epithelial Cells: Condition-Specific Pathway Enrichment

[Analysis Visualization Results]...

Analysis Overview

This analysis utilizes Gene Set Enrichment Analysis (GSA), specifically focusing on Gene Ontology (GO) terms, to identify biological pathways and processes that are significantly up-regulated in Lung Epithelial cells under various conditions compared to a "Normal" reference state. The comparisons include diploid cells versus normal, normal cells versus all other conditions, advanced tumor cells versus normal, and early tumor cells versus normal. This approach helps to elucidate the functional shifts and biological mechanisms active within Lung Epithelial cells during lung cancer progression and in different cellular states. The analysis is based on differentially expressed genes (DEGs) that are up-regulated in the test condition relative to the reference.

Visual Summary

The provided bar plots illustrate the top significantly enriched Gene Ontology terms, ranked by their negative log p-value (-log(p-val)), with corresponding negative log q-values (-log(q-val)) indicating significance after multiple testing correction.

1. GSA for Lung Epithelial cell: Diploid_vs_Normal (based on up-regulated DEGs): This plot shows that diploid Lung Epithelial cells (potentially reflecting a non-aneuploid tumor population or general non-tumorigenic cells) exhibit significant enrichment in pathways related to metabolism (e.g., Glycolysis / Gluconeogenesis, Glutathione metabolism, Pentose phosphate pathway, Purine metabolism, Pyrimidine metabolism, Central carbon metabolism in cancer), protein synthesis and processing (Ribosome, Protein processing in endoplasmic reticulum, Protein export), cellular stress responses (HIF-1 signaling pathway, Ferroptosis, Mitophagy, p53 signaling pathway), and various infectious disease responses (e.g., Coronavirus disease, Salmonella infection, Influenza A).
2. GSA for Lung Epithelial cell: Normal_vs_others (based on up-regulated DEGs): This plot highlights pathways that are up-regulated in normal Lung Epithelial cells when compared to all other conditions (tumor and potentially aneuploid cells). Prominent enrichments include immune response and host defense pathways (Phagosome, Antigen processing and presentation, Th17 cell differentiation, various infectious disease and autoimmune-related pathways), lipid and fatty acid metabolism (PPAR signaling pathway, Biosynthesis of unsaturated fatty acids, Fatty acid degradation, Cholesterol metabolism), and cellular stress response (Ferroptosis, Lysosome).
3. GSA for Lung Epithelial cell: Tumor(adv)_vs_Normal (based on up-regulated DEGs): Advanced tumor Lung Epithelial cells show exceptionally strong and broad enrichment for pathways critical for rapid proliferation and cellular maintenance. These include extensive protein synthesis, processing, and degradation (Ribosome, Proteasome, Spliceosome, RNA transport, Protein processing in endoplasmic reticulum, Ubiquitin mediated proteolysis, Ribosome biogenesis, RNA degradation), altered metabolism (Oxidative phosphorylation, Non-alcoholic fatty liver disease, Pyrimidine metabolism), cell cycle regulation (Cell cycle, DNA replication, p53 signaling pathway, Apoptosis), and cellular stress/survival mechanisms (Pathways of neurodegeneration, Autophagy, Mitophagy, Cellular senescence). Numerous infectious disease pathways (e.g., Coronavirus, Salmonella, HPV, EBV, Hepatitis) are also highly significant.
4. GSA for Lung Epithelial cell: Tumor(early)_vs_Normal (based on up-regulated DEGs): Early-stage tumor Lung Epithelial cells demonstrate a substantial overlap in up-regulated pathways with advanced tumors, albeit with some differences in ranking and magnitude. Key enriched terms include protein synthesis/processing (Ribosome, Protein processing in endoplasmic reticulum, Ubiquitin mediated proteolysis, Proteasome, RNA transport, mRNA surveillance pathway), cellular stress responses (Huntington disease, Amyotrophic lateral sclerosis, Parkinson disease, Alzheimer disease, Prion disease, Pathways of neurodegeneration, Endocytosis, Autophagy), altered metabolism (Non-alcoholic fatty liver disease, Oxidative phosphorylation, Central carbon metabolism in cancer), and various infectious disease pathways. Explicit "Pathways in cancer" and "Small cell lung cancer" terms are also enriched.

Biological Interpretation

The Gene Ontology analysis reveals distinct functional landscapes in Lung Epithelial cells across different conditions, providing critical insights into lung cancer biology.

• Metabolic Reprogramming is a Hallmark of Tumorigenesis: Both early and advanced tumor Lung Epithelial cells, and even the diploid fraction, exhibit significant up-regulation of metabolic pathways. This includes glycolysis, oxidative phosphorylation, and metabolism of various amino acids and nucleotides (e.g., purine, pyrimidine, glutamine, branched-chain amino acids). This extensive metabolic reprogramming is a well-established hallmark of cancer, enabling rapid cell proliferation by diverting resources towards biomass synthesis and energy production. The explicit enrichment of "Central carbon metabolism in cancer" further underscores this shift PubMed search: cancer metabolic reprogramming.
• Enhanced Protein Synthesis and Turnover Reflects Proliferative Demands: A striking feature in both early and advanced tumor cells is the profound up-regulation of pathways related to protein synthesis (Ribosome, Ribosome biogenesis), processing (Protein processing in endoplasmic reticulum, Spliceosome, RNA transport), and degradation (Proteasome, Ubiquitin mediated proteolysis, Autophagy, Mitophagy). This hyperactive protein machinery is essential for the rapid growth and division of cancer cells, which require constant synthesis of new proteins and efficient recycling of damaged ones.
• Cellular Stress and Survival Mechanisms are Activated: Pathways related to cellular stress, DNA damage response, and protein misfolding (e.g., p53 signaling pathway, Apoptosis, Autophagy, Mitophagy, Cellular senescence, and several "Pathways of neurodegeneration" like Huntington, Alzheimer, Parkinson disease) are highly enriched in tumor cells. While these pathways are typically involved in quality control and programmed cell death, in cancer, they are often dysregulated to allow tumor cells to survive under adverse conditions (e.g., hypoxia, nutrient deprivation, genomic instability) PubMed search: p53 cancer survival.
• Altered Host-Pathogen Interactions and Inflammation: The consistent presence of numerous infectious disease pathways (viral like Coronavirus, HPV, EBV, Hepatitis; and bacterial like Salmonella, E. coli, Vibrio cholerae) across tumor conditions is notable. This could indicate an altered immune microenvironment, chronic inflammation contributing to tumorigenesis, or shared cellular responses that are hijacked by cancer cells. In the normal lung epithelial cells, these pathways likely reflect their active role in innate immunity and defense against pathogens.
• Normal Epithelial Cell Functions: In contrast, normal Lung Epithelial cells, when compared to tumor cells, show enrichment in pathways related to immune surveillance (Phagosome, Antigen processing and presentation), specific immune cell differentiation (Th17 cell differentiation), and a more balanced lipid/fatty acid metabolism (PPAR signaling, fatty acid degradation). This suggests that healthy lung epithelial cells actively contribute to tissue homeostasis and immune responses, functions that may be suppressed or altered in the presence of cancer.

Clinical or Translational Implications

The observed pathway enrichments offer several clinical and translational insights for lung cancer:

• Potential Therapeutic Targets: The profound metabolic reprogramming, especially involving glycolysis, oxidative phosphorylation, and nucleotide metabolism, presents actionable therapeutic targets. Inhibitors targeting these pathways could selectively impair the growth of rapidly dividing cancer cells. Similarly, the highly active proteasome and protein synthesis machinery suggest that proteasome inhibitors or drugs targeting ribosomal function could be effective, akin to their use in other cancers PubMed search: proteasome inhibitors cancer therapy.
• Biomarkers for Early Detection and Prognosis: The identification of specific up-regulated pathways even in early-stage tumors suggests potential biomarkers for early detection or for monitoring disease progression. For example, gene signatures related to ribosome biogenesis, ER stress, or specific metabolic enzymes could be explored as diagnostic or prognostic tools.
• Understanding Immune Evasion and Tumor Microenvironment: The recurring theme of infectious disease pathways in tumor cells highlights the complex interplay between cancer and the immune system. Further investigation into how these pathways are modulated in lung cancer could reveal mechanisms of immune evasion or identify novel targets for immunotherapy, particularly in the context of tumor-associated inflammation.
• Stage-Specific Interventions: While early and advanced tumors share many common upregulated pathways, subtle differences could inform stage-specific therapeutic strategies. Targeting pathways that are highly active in early disease could potentially prevent progression, whereas advanced tumors might require strategies addressing a broader range of altered cellular functions.

21. Gene Set Enrichment Analysis of Lung Cancer Cell Types: Pathway Deregulation Across Tumor Progression

[Analysis Visualization Results]...

Analysis Overview

This analysis presents Gene Set Enrichment Analysis (GSEA) results across various lung cell types, comparing gene expression profiles in tumor conditions (early and advanced) against a normal reference, as well as some comparisons against "others" (a pooled average of all other conditions). The analysis aimed to identify activated (upregulated) or suppressed (downregulated) biological pathways within specific cell populations in the context of lung cancer. The results are visualized as a dot plot where each dot represents the enrichment of a specific gene set (pathway) in a given cell type and condition comparison. The color of the dot indicates the Normalized Enrichment Score (NES), with red signifying positive enrichment (upregulation) and blue signifying negative enrichment (downregulation). The size of the dot corresponds to the statistical significance (-log(P-value)), with larger dots indicating higher significance. Per the analysis configuration, the primary focus is on comparisons of tumor conditions against the 'Normal' reference (use_ref: True).

Visual Summary

The dot plot provides a comprehensive overview of pathway activity changes. We observe a wide distribution of enriched and depleted pathways across different cell types and tumor conditions.

• Widespread Pathway Alterations: Both positive (red) and negative (blue) enrichment scores are observed across most cell types and conditions, indicating extensive transcriptional reprogramming in the tumor microenvironment.
• Varying Significance: Dot sizes vary significantly, highlighting pathways that are highly statistically significant (large dots) versus those with more modest significance (small dots).
• Cell Type Specificity: Certain pathways show enrichment predominantly in specific cell types, reflecting their distinct roles and responses in the tumor context. For instance, metabolic pathways are frequently altered in Lung Epithelial cells, while immune-related pathways are prominent in immune cell populations.
• Condition Dependency: While many changes are present in both early and advanced tumor stages, there are nuances in enrichment strength and direction, hinting at potential stage-specific adaptations.
• Dominant Signals in Tumor vs Normal: The Tumor(adv)_vs_Normal and Tumor(early)_vs_Normal columns consistently show strong, significant pathway enrichments, particularly for Lung Epithelial cells and various immune cells.

Biological Interpretation

Lung Epithelial Cells (Tumor-Origin)

As the resolved tumor-origin cell type, Lung Epithelial cells show profound alterations characteristic of cancer.

Metabolic Reprogramming (Warburg Effect & Anabolism):

• Glycolysis/Gluconeogenesis is consistently and significantly upregulated (large red dots) in both Tumor(early) and Tumor(adv) Lung Epithelial cells compared to Normal. This is a hallmark of cancer, indicating a shift towards aerobic glycolysis for rapid ATP production and biomass synthesis [1].
• Conversely, Oxidative phosphorylation appears downregulated (blue dots, though less pronounced significance), further supporting the Warburg effect.
• Pathways like Pentose phosphate pathway and Pyrimidine metabolism are significantly upregulated (red), essential for providing nucleotides for rapid DNA/RNA synthesis and NADPH for antioxidant defense in proliferating cancer cells.

Oncogenic Signaling and Proliferation:

• Ras signaling pathway, Phosphatidylinositol signaling system (PI3K-Akt), and Wnt signaling pathway are strongly upregulated (red, large dots) in tumor epithelial cells. These pathways are central drivers of cell proliferation, survival, and cell fate determination in cancer.
• Protein processing in endoplasmic reticulum is also upregulated, reflecting the high protein synthesis demands of rapidly growing tumor cells.

Immune Evasion:

• PD-L1 expression and PD-1 checkpoint pathway in cancer is significantly upregulated (red, large dots). This indicates that tumor epithelial cells may be actively engaging immune checkpoints to evade anti-tumor immunity, a critical mechanism targeted by immunotherapies [2].

Other Noteworthy Changes:

• Autophagy is upregulated (red), a complex process that can promote cancer cell survival under stress.
• Cellular senescence is downregulated (blue), suggesting tumor cells bypass a key tumor suppressive mechanism.
• The Non-small cell lung cancer pathway itself is significantly enriched (red), providing strong internal validation for the analysis in the disease context.

Tumor Microenvironment (TME) Immune Cells

Immune cells within the TME exhibit significant reprogramming, reflecting their complex roles in anti-tumor immunity, pro-tumor functions, or exhaustion.

Macrophages:

• HIF-1 signaling pathway is significantly upregulated (red), suggesting that macrophages in the hypoxic TME may adopt M2-like phenotypes that promote tumor growth, angiogenesis, and immunosuppression.
• Cholesterol metabolism and Fatty acid metabolism are also upregulated (red), indicative of metabolic reprogramming in tumor-associated macrophages (TAMs) [3].
• PD-L1 expression and PD-1 checkpoint pathway in cancer is upregulated (red), suggesting TAMs might also contribute to immune suppression.
• Cytokine-cytokine receptor interaction is upregulated, highlighting their active role in shaping the TME inflammatory landscape.

T cells (CD4+ and CD8+):

• T cell receptor signaling pathway shows mixed signals, with some downregulation (blue) particularly in CD8+ T cells in advanced tumors, which could suggest T cell exhaustion or altered functionality within the TME.
• Cytokine-cytokine receptor interaction is generally upregulated (red), indicating active communication within the immune compartment, though this can be either pro- or anti-tumor.
• JAK-STAT signaling pathway is also upregulated (red) in some T cell populations, a key pathway for cytokine signaling.
• Non-small cell lung cancer pathway enrichment is also observed in T cells, implying that the molecular signatures associated with lung cancer have an impact on the transcriptomic state of these immune cells.

Dendritic Cells:

• Phagosome and Cytokine-cytokine receptor interaction are upregulated (red), consistent with their roles as antigen-presenting cells and orchestrators of immune responses, even if their function might be impaired in cancer.

B cells and Plasma cells:

• B cell receptor signaling pathway is upregulated in B cells.
• Protein processing in endoplasmic reticulum is upregulated in Plasma cells (red), reflecting their antibody-secreting function.

Tumor Microenvironment (TME) Stromal Cells

Stromal cells play crucial roles in TME remodeling, angiogenesis, and metastasis.

Fibroblasts:

• ECM-receptor interaction is strongly upregulated (red, large dots) in tumor fibroblasts, consistent with cancer-associated fibroblasts (CAFs) actively remodeling the extracellular matrix, which facilitates tumor growth and metastasis [4].
• HIF-1 signaling pathway and Glycolysis/Gluconeogenesis are also upregulated (red), indicating metabolic reprogramming and adaptation to hypoxic conditions in CAFs.

Endothelial Cells:

• HIF-1 signaling pathway is upregulated (red), a key driver of angiogenesis, the formation of new blood vessels, which is critical for tumor growth and survival.
• ECM-receptor interaction is also upregulated (red), reflecting their involvement in vascular remodeling during angiogenesis.

Clinical or Translational Implications

The GSEA results provide several actionable insights relevant to lung cancer diagnosis, prognosis, and therapeutic strategies:

• Metabolic Targeting: The prominent upregulation of glycolysis and pyrimidine metabolism in tumor epithelial cells suggests these pathways could be therapeutic targets. Inhibitors of key glycolytic enzymes or nucleotide synthesis pathways might selectively impede cancer cell growth.
• Immune Checkpoint Blockade: The significant upregulation of PD-L1 expression and PD-1 checkpoint pathway in cancer in Lung Epithelial cells and some immune cells (Macrophages, Dendritic cells) strongly supports the rationale for PD-1/PD-L1 blockade as a therapeutic strategy in lung cancer [2]. Further investigations could explore why this pathway is upregulated in specific immune subsets.
• TME Remodeling: The consistent enrichment of ECM-receptor interaction in fibroblasts highlights the importance of the extracellular matrix in tumor progression. Targeting ECM remodeling or CAF activation could be a strategy to inhibit tumor invasion and metastasis [4].
• Oncogenic Signaling Pathways: The widespread activation of Ras, PI3K-Akt, and Wnt signaling pathways in tumor epithelial cells underscores their central role in lung cancer. Targeting these pathways, alone or in combination, remains a focus for drug development, especially considering the frequent mutations in these pathways in NSCLC.
• T Cell Exhaustion: The downregulation of the T cell receptor signaling pathway in some T cell populations, particularly CD8+ T cells, could be a marker of T cell exhaustion, which might guide strategies to reinvigorate anti-tumor immune responses [5].

These findings indicate distinct cell-state shifts and condition-associated biology that could be exploited for biomarker discovery and development of novel therapeutic interventions in lung cancer.

---

References:

[1] Hanahan, D., & Weinberg, R. A. (2011). Hallmarks of cancer: the next generation. Cell, 144(5), 646-674. PubMed Search: "Hallmarks of Cancer"

[2] Ribas, A., & Wolchok, J. D. (2018). Cancer immunotherapy—building on tumor molecular impediments. New England Journal of Medicine, 378(18), 1738-1741. PubMed Search: "PD-1 PD-L1 cancer immunotherapy"

[3] College, J., Pylayeva-Gupta, Y., & Miller, G. (2018). Tumor-associated macrophages in cancer immunology. Annual Review of Immunology, 36, 115-131. PubMed Search: "Tumor-associated macrophages metabolism"

[4] Erler, J. T., & Giaccia, A. J. (2006). The extracellular matrix remodels the tumor microenvironment to promote cancer progression. Current Opinion in Genetics & Development, 16(1), 7-14. PubMed Search: "Cancer-associated fibroblasts ECM remodeling"

[5] Wherry, E. J., & Kurachi, M. (2015). Molecular and cellular insights into T cell exhaustion. Nature Reviews Immunology, 15(8), 486-499. PubMed Search: "T cell exhaustion cancer"

22. Discussion

The comprehensive single-cell analysis of human lung tissue from normal, early, and advanced tumor stages reveals a dramatically remodeled cellular and genomic landscape indicative of lung cancer progression. The inferred disease context of Lung cancer is strongly supported by the presence of both early and advanced tumor conditions, the identification of Lung Epithelial cells as the tumor origin, and the pervasive detection of aneuploidy (11.5% of total cells) and recurrent copy number variations (CNVs) in tumor-origin epithelial cells.

Our findings underscore the genomic instability inherent in lung cancer, with UMAPs clearly segregating aneuploid cells to tumor-associated Lung Epithelial clusters from early stages onward. Recurrent amplifications of established oncogenes such as *EGFR* (7p13:7q11.23), *ERBB2* (17q12:17q21.2), and *EIF3E* (8q22.3:8q24.1) within Lung Epithelial cells highlight key genomic drivers of tumorigenesis. These alterations persist and often intensify from early to advanced disease, suggesting a consistent oncogenic pressure. Gene Ontology (GSA) and Gene Set Enrichment Analysis (GSEA) further corroborate this, showing profound metabolic reprogramming (e.g., upregulated glycolysis, pyrimidine metabolism), enhanced protein synthesis, and activated survival mechanisms in tumor epithelial cells, while canonical tumor suppressor pathways (e.g., cellular senescence) are often downregulated or bypassed.

The tumor microenvironment (TME) undergoes significant re-sculpting from early stages. Analysis of cell populations reveals a substantial expansion of epithelial cells in early tumors, followed by an increase in 'unassigned' cells in advanced stages, potentially indicative of cellular dedifferentiation or novel tumor states. Immune cell populations also shift dramatically: while early tumors show an initial influx of T cells (CD4 Memory, Tfh, Th17, CD8 Memory, Treg), critical populations like Th17 and Th22 decline in advanced tumors, accompanied by an early onset of CD8 T cell exhaustion. Furthermore, NK cells and ILCreg populations appear diminished in both tumor stages compared to normal. Macrophages exhibit a pro-tumorigenic shift, with a progressive and significant increase in immunosuppressive M2B macrophages from normal to advanced tumor, and a decrease in M2A. This points to an evolving immune landscape where initial anti-tumor responses are progressively subverted by immunosuppressive mechanisms.

Cell-cell interaction (CCI) analyses reveal complex and dynamic communication networks. Normal tissue exhibits homeostatic interactions (e.g., ANXA1-FPR1, ICAM2-integrin), which are largely replaced in tumor conditions by interactions involving aneuploid Lung Epithelial cells as central hubs. Key tumor-promoting interactions include the CXCL12-CXCR4 axis, VEGFA-NRP1/FLT1 (driving angiogenesis), ProstaglandinE2-PTGER4 (promoting immunosuppression), and WNT7B-FZD5 (autocrine signaling). Immune checkpoint and cell cycle-related CCIs highlight hyperactive EGFR-ligand/receptor and TGF-beta signaling pathways, fostering tumor proliferation and immune evasion. Additionally, specific surfaceome markers on tumor-associated macrophages (e.g., CSF1R, CXCR4, FOLR2, MMP14) and cancer-associated fibroblasts (e.g., FAP, ENG, MMP14, PDGFRA, PLAUR) are significantly upregulated from early stages, underscoring their active roles in TME remodeling and tumor progression. The differential expression of surface markers on CD4+ T cells (e.g., CD27, ICOS, PIK3IP1) further indicates altered activation and potential dysfunction.

In summary, lung cancer progression is characterized by profound genomic instability in epithelial cells, leading to uncontrolled proliferation and complex metabolic adaptations. This is coupled with a dynamic and immunosuppressive TME, orchestrated by activated macrophages and fibroblasts, and an adaptive, yet often exhausted, T cell response. The intricate interplay of these factors, driven by dysregulated signaling pathways and unique surface marker expression, creates a challenging environment for immune surveillance and therapeutic intervention.

Hypotheses:

1. The early and pervasive aneuploidy and CNV amplification in Lung Epithelial cells directly trigger or significantly contribute to the activation and phenotypic shift of surrounding stromal (fibroblasts) and immune cells (macrophages, T cells) in the early tumor microenvironment.
2. Targeting M2B macrophages, particularly by inhibiting CSF1R or CXCR4, will reduce T cell exhaustion and re-sensitize lung tumors to existing immunotherapies by mitigating the immunosuppressive tumor microenvironment.
3. Multispecific therapeutic strategies simultaneously targeting dysregulated oncogenic signaling (e.g., EGFR, Wnt) in aneuploid Lung Epithelial cells and key TME components (e.g., FAP+ fibroblasts, TAMs via CXCL12-CXCR4) will achieve superior and more durable anti-tumor responses than monotherapies.
4. Specific surface markers identified on tumor-infiltrating CD4+ T cells (e.g., CD27, ICOS, PIK3IP1) and tumor epithelial cells (e.g., CEACAM6, MUC4) in early-stage lung cancer can serve as prognostic or predictive biomarkers for patient response to targeted therapies or immune checkpoint blockade, reflecting the early establishment of immune evasion mechanisms.

Potential therapeutic targets:

1. EGFR (Epidermal Growth Factor Receptor): High expression on aneuploid Lung Epithelial (tumor-origin) cells, strong autocrine/paracrine signaling via multiple ligands (HBEGF, AREG, EREG, TGFA) from tumor, macrophage, fibroblast, and endothelial cells, driving proliferation, survival, and TME remodeling. Recurrent CNV amplification in tumor epithelial cells. Evidence: Well-established oncogenic driver in NSCLC, with activating mutations and amplifications predicting response to EGFR TKIs. GSEA shows Ras and PI3K-Akt pathway upregulation, downstream of EGFR (Sections 4, 14, 15, 21). Validation: Clinical trials with EGFR TKIs (e.g., Osimertinib, Gefitinib) and monoclonal antibodies (e.g., Cetuximab) are standard practice for EGFR-altered NSCLC. Validation in patient-derived organoids or xenografts with specific EGFR alterations.
2. CSF1R (Colony Stimulating Factor 1 Receptor) on Macrophages: Upregulated on tumor-associated macrophages (TAMs) in both early and advanced lung tumors. CSF1R signaling is crucial for the recruitment, survival, and differentiation of pro-tumorigenic TAMs (M2B/M2C phenotypes) that promote angiogenesis, immunosuppression, and ECM remodeling. Evidence: High CSF1R expression on TAMs correlates with poor prognosis in lung cancer. GSEA shows HIF-1 signaling and metabolic reprogramming in macrophages, often linked to TAM polarization (Sections 9, 10, 16, 21). Validation: Preclinical models and clinical trials with CSF1R inhibitors (e.g., Pexidartinib, Cabiralizumab) aim to deplete TAMs or reprogram them towards an anti-tumorigenic phenotype. Validate by assessing TAM depletion/repolarization and tumor growth inhibition in lung cancer models.
3. FAP (Fibroblast Activation Protein alpha) on Fibroblasts: Highly elevated on fibroblasts in early-stage lung tumors, virtually absent in normal tissue. FAP+ CAFs remodel ECM, create invasive pathways, and promote an immunosuppressive TME from initial stages. Evidence: FAP+ CAFs are hallmarks of desmoplastic tumors and correlate with poor prognosis. GSEA shows strong ECM-receptor interaction and HIF-1 signaling upregulation in fibroblasts, consistent with CAF activation (Sections 17, 21). Validation: FAP-targeting strategies (e.g., FAP-specific antibodies, FAP-activated prodrugs, FAP-CAR-T cells) are in preclinical/clinical investigation. Validate by assessing reduced desmoplasia, inhibited tumor invasion/metastasis, and enhanced immune cell infiltration in lung cancer models.
4. CXCR4 (C-X-C motif chemokine receptor 4) on Macrophages and Aneuploid Lung Epithelial Cells: Strongly activated CXCL12-CXCR4 axis between aneuploid Lung Epithelial cells and macrophages in both early and advanced tumor conditions. This axis drives tumor cell survival, proliferation, metastasis, and recruitment/polarization of immunosuppressive TAMs. Evidence: CXCR4 is a critical mediator of tumor growth and metastasis, and its blocking inhibits TAM recruitment and pro-tumorigenic functions (Sections 13, 16). Validation: Plerixafor (AMD3100), an FDA-approved CXCR4 antagonist, is being investigated in various solid tumors. Validate in lung cancer models by blocking TAM recruitment, reducing metastasis, and improving response to other therapies.
5. PD-L1 expression and PD-1 checkpoint pathway: Significantly upregulated in Lung Epithelial cells and some immune cells (Macrophages, Dendritic cells) in tumor conditions. This indicates active immune evasion by tumor cells and TME components. Evidence: PD-1/PD-L1 blockade is a cornerstone immunotherapy for lung cancer. Increased T cell exhaustion (CD8 Exhausted) is a strong indicator for checkpoint inhibition (Sections 8, 21). Validation: Extensive clinical evidence and approved therapies (e.g., Pembrolizumab, Nivolumab, Atezolizumab, Durvalumab) are available for NSCLC. Validate in specific contexts of resistance or combination therapies.

Follow-up validation ideas:

1. Perform spatial transcriptomics (e.g., Visium, GeoMx DSP) or multiplex immunofluorescence/imaging mass cytometry on human lung tumor tissue sections to validate the co-localization of identified cell types (e.g., FAP+ fibroblasts, M2B macrophages, aneuploid epithelial cells) and confirm active cell-cell interaction patterns (Sections 12, 13, 14) and surface marker expression (Sections 15, 16, 17, 18) in situ.
2. Conduct functional perturbation assays, such as _in vitro_ co-culture experiments using primary human lung cancer epithelial cells, fibroblasts, and macrophages, coupled with gene knockdown/overexpression (CRISPR/shRNA) or small molecule inhibitors (e.g., CSF1R inhibitors, CXCR4 antagonists, FAP inhibitors) to validate the functional impact of identified cell-cell interactions on tumor cell proliferation, migration, and immune cell polarization. Validate key findings in patient-derived xenograft (PDX) or syngeneic mouse models.
3. Quantify the proportions of specific T cell (e.g., CD8 exhausted, Th17, Th22, Tregs, Section 8) and macrophage (e.g., M2B, M2C, Section 10) subsets, and the expression of surface markers (e.g., CSF1R, FAP, CD27, ICOS, EGFR, Sections 15-18) using flow cytometry or immunohistochemistry in a larger independent cohort of lung cancer patient samples to confirm their prognostic and diagnostic value, and correlation with disease stage and clinical outcomes.
4. Perform fluorescence in situ hybridization (FISH) or single-cell DNA sequencing on a subset of Lung Epithelial cells from early and advanced lung tumor samples to orthogonally validate the identified recurrent CNV amplifications (e.g., *EGFR*, *ERBB2*, *EIF3E*, Section 4) and aneuploidy status (Section 11), correlating these with gene expression changes.
5. Isolate tumor-associated macrophages (TAMs) and cancer-associated fibroblasts (CAFs) from patient lung tumor samples (e.g., via FACS) and perform targeted metabolomics to confirm the metabolic reprogramming (e.g., glycolysis, fatty acid metabolism, Sections 20, 21) inferred from gene expression, and identify specific metabolic vulnerabilities.

Limitations:

This report is based on a single-cell RNA-seq dataset, providing correlative insights into lung cancer biology rather than direct causal evidence. The inferred disease, while strongly supported by the data, is not a clinical diagnosis, and the specific histological subtype of lung cancer (e.g., adenocarcinoma vs. squamous) is not explicitly resolved. Copy number variation and ploidy estimates, while robust, are computationally inferred and require orthogonal validation. The significant proportion of 'unassigned' cells, particularly in advanced tumors, suggests unresolved cellular heterogeneity that could hold further biological insights. Furthermore, transcriptomic data reflect mRNA levels, which do not always perfectly correlate with protein expression or direct cellular function. The findings are derived from the analyzed cohort and may not fully represent the entire spectrum of lung cancer patients.

23. Query List

1. Show and save UMAPs for condition, sample, major cell type, minor cell type, ploidy_dec, and celltype_subset in two columns.
2. Show major cell type scores on UMAP and save the result.
3. Show and save a marker expression dot plot for celltype_subset. SET target_cell = None and var_group_rotation = 45. Leave all other arguments at their default values.
4. Select Lung Epithelial cell tumor-origin cells, show a CNV heatmap grouped by sample together with a summary of regions with significantly amplified copy numbers, and save the results.
5. Show and save UMAPs of CNV patterns colored by major cell type, minor cell type, ploidy results, condition, and sample in two columns.
6. Show and save a population bar plot of minor cell types.
7. Show and save a population bar plot of T cell subsets.
8. Show and save box plots of T cell subset populations with statistically significant differences between conditions, if any. Choose ncols based on the total number of panels.
9. Show and save a population bar plot of macrophage subsets.
10. Show and save box plots of macrophage subset populations with statistically significant differences between conditions, if any. Choose ncols based on the total number of panels.
11. Select Lung Epithelial cell tumor-origin cells, show their ploidy populations as a bar plot, and save the result.
12. Show and save cell-cell interaction patterns involving Lung Epithelial cell tumor-origin cells, fibroblasts, macrophages, T cells, and other relevant cell types. Select at most 80 cell-cell interactions per group.
13. Find cell-cell interactions involving Lung Epithelial cell tumor-origin cells, major immune and stromal cells that differ significantly between conditions, show them as a dot plot, and save the result. Set max_n_items_per_group to 60. For each interaction identified under each condition, using the provided dataset context, describe the associated signaling pathways and mechanisms, its potential as a therapeutic target, and relevant therapeutic agents.
14. Find cell-cell interactions containing immune checkpoint and cell cycle pathway genes and involving Lung Epithelial cell tumor-origin cells, major immune and stromal cells that differ significantly between conditions, show them as a dot plot, and save the result. Set max_n_items_per_group to 60. For each interaction identified under each condition, using the provided dataset context, describe the associated signaling pathways and mechanisms, its potential as a therapeutic target, and relevant therapeutic agents.
15. Show marker expressions for Lung Epithelial cell tumor-origin cells in a dot plot, and save the result. Use only surfaceome markers, with at most 60 markers per condition. For the markers identified under each condition, distinguish between established therapeutic targets and less well-characterized markers with potential as therapeutic targets. For each marker, using the provided dataset context, describe the associated signaling pathways and mechanisms, relevant therapeutic agents, and supporting evidence.
16. Show marker expressions for Macrophage in a dot plot, and save the result. Use only surfaceome markers, with at most 40 markers per condition. For each marker identified under each condition, using the provided dataset context, describe the associated signaling pathways, the role of the corresponding cell type in the tumor microenvironment, the marker’s potential as a therapeutic target, relevant therapeutic agents, and other pertinent information.
17. Show marker expressions for Fibroblast in a dot plot, and save the result. Use only surfaceome markers, with at most 40 markers per condition. For each marker identified under each condition, using the provided dataset context, describe the associated signaling pathways, the role of the corresponding cell type in the tumor microenvironment, the marker’s potential as a therapeutic target, relevant therapeutic agents, and other pertinent information.
18. Show marker expressions for T cell CD4+ in a dot plot, and save the result. Use only surfaceome markers, with at most 40 markers per condition. For each marker identified under each condition, using the provided dataset context, describe the associated signaling pathways, the role of the corresponding cell type in the tumor microenvironment, the marker’s potential as a therapeutic target, relevant therapeutic agents, and other pertinent information.
19. Among cell cycle pathway genes, select those with statistically significant expression differences between conditions in Lung Epithelial cell, show box plots, and save the result. Set max_n_items_to_plot to 24 and choose ncols based on the total number of panels for an overall width-to-height ratio of approximately 2:3.
20. Show and save Gene Ontology (GSA) analysis results for Lung Epithelial cell tumor-origin cells as a bar plot.
21. Show Gene Set Enrichment Analysis results as a dot plot, and save it. Set the color map to RdBu_r, n_pws_to_show to 120, and target_cells to None.
